Parker SCPSD-400-04-27 Digital Pressure Switch, 0-400 bar, 2 Switching Outputs, IO-Link, G1/4 BSPP External Thread

$500.00 USD
$500.00 USD
Sale Sold out
Shipping calculated at checkout.

Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)

Visa Mastercard PayPal Apple Pay Google Pay American Express
TECHNICAL DATASHEET PDF

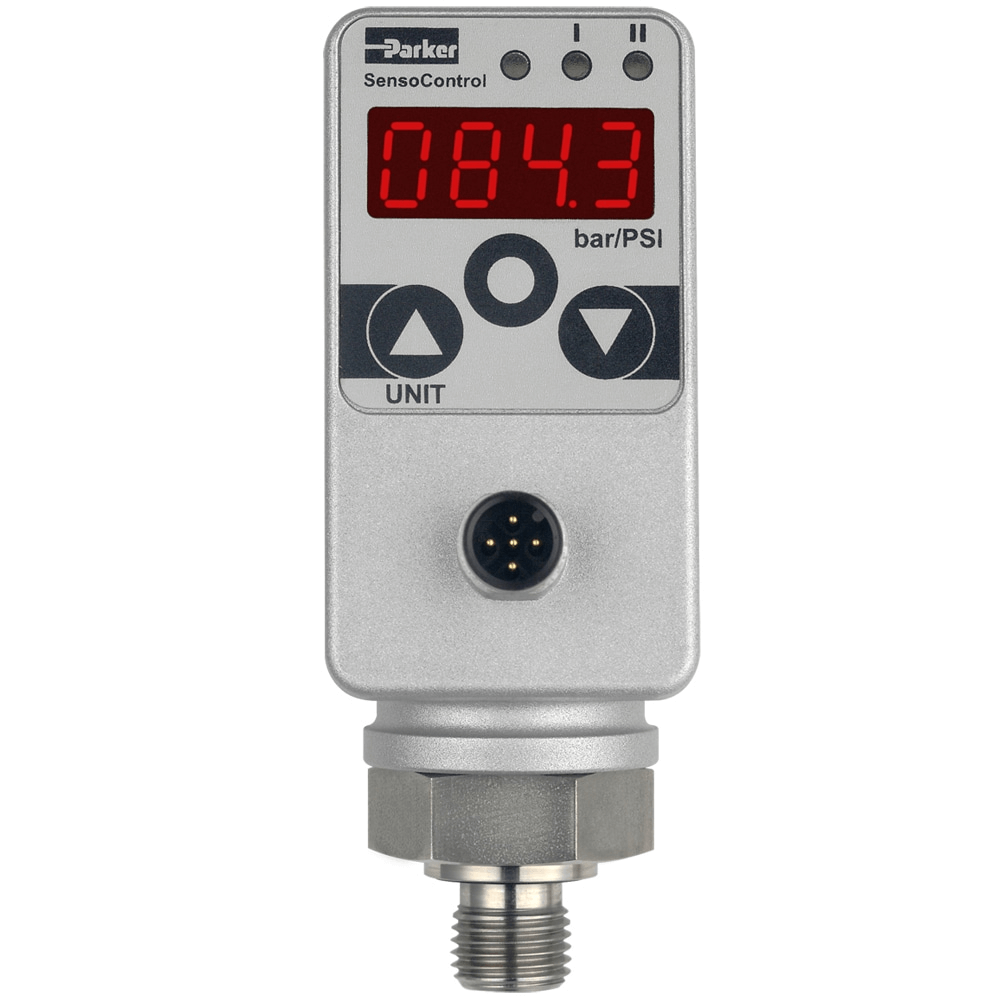

The Parker SCPSD-400-04-27 is a digital pressure switch and display unit from the SensoControl Controller Family. It features a large, pivoting display, two configurable switching outputs, and an IO-Link interface for Industry 4.0 connectivity. Housed in a rugged, metallic IP67 enclosure, it is designed for reliable pressure monitoring and control in industrial hydraulic and pneumatic applications.

  • Digital Display with 2-Color Switching Status Indicator
  • Two Individually Configurable Switching Outputs (PNP/NPN)
  • IO-Link V1.1 Interface (Smart Sensor Profile 2nd Edition)
  • High Accuracy Piezoresistive Measuring Cell
  • Metallic, 240° Rotatable Housing (IP67)
  • Wide Operating Temperature Range: -40°C to +85°C
  • Monolithic Stainless Steel Pressure Port (17-4PH)
Product ID / Ordering Code SCPSD-400-04-27
Type / Series SCPSD (Digital PressureSwitch)
Pressure Range (Pn) 0...400 bar
Overload Pressure (Pmax) 1200 bar
Burst Pressure (Pburst) 3500 bar
Overall Accuracy @ 25°C ±0.5 % FS
Display Resolution 0.1 bar
Minimum Adjustable Difference (SP-rSP) 1 bar
Process Connection G1/4 BSPP External Thread
Wetted Parts Material Stainless Steel 17-4PH (1.4542)
Seal Material FKM (ED Type)
Electrical Connection M12x1, 4-pole
Supply Voltage (V+) 18...30 VDC
Switching Outputs 2 (PNP/NPN, programmable)
Max. Switching Current 200 mA per output
Max. Switching Frequency 250 Hz
IO-Link Interface V1.1, COM2 (38.4 kBaud), SIO Mode
Media Temperature Range -40...+85 °C
Ambient Temperature Range -40...+85 °C
Protection Class IP67
Housing Material Zinc Die-Cast (Nickel-Plated)
Weight (Approx.) 150 g
Standards / Approvals CE, RoHS, UKCA
