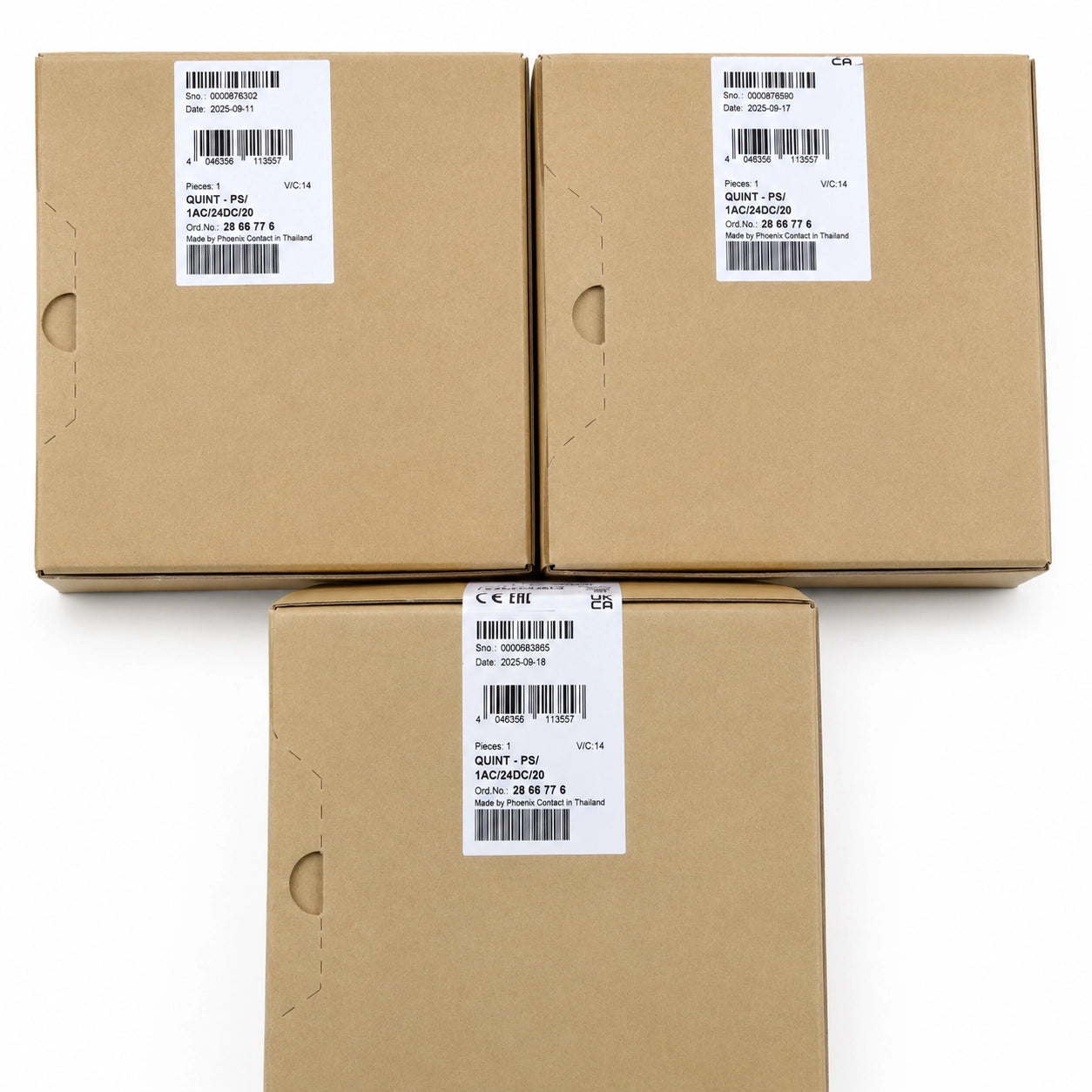

Phoenix Contact QUINT-PS/1AC/24DC/20 2866776 Power Supply, 24 V DC, 20 A
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
Phoenix Contact QUINT-PS/1AC/24DC/20, item number 2866776, is a QUINT POWER primary-switched power supply unit for industrial control and power systems. It provides a 24 V DC nominal output at 20 A, supports 1-phase AC input, and includes SFB Technology for selective fuse breaking.
| Product ID / MPN | QUINT-PS/1AC/24DC/20 |
| Secondary ID / Item Number | 2866776 |
| Brand / Series / Category | Phoenix Contact / QUINT POWER / Power supply |
| Input Voltage Range | 85 V AC ... 264 V AC; 90 V DC ... 350 V DC |
| Output Rating | 24 V DC, 20 A, 480 W |
| Output Voltage Setting Range | 18 V DC ... 29.5 V DC |
| Power Reserve | POWER BOOST 26 A; Selective Fuse Breaking 120 A for 12 ms |
| Efficiency | typ. 92% at 120 V AC; typ. 92.7% at 230 V AC |
| Connection / Mounting | Screw connection; DIN rail mounting |
| Dimensions | 90 mm width x 130 mm height x 125 mm depth |
| Environmental Rating | IP20; -25 °C ... 70 °C operation |
Typical applications include industrial control cabinets, DIN rail power systems, automation panels, machine power distribution, MRO replacement projects, and systems requiring monitored 24 V DC control power.
Apexon Supply provides B2B sourcing and replacement support for Phoenix Contact QUINT-PS/1AC/24DC/20 2866776 power supply units. Buyers should verify input voltage, output load, mounting space, connection requirements, and system protection needs before replacement.
Send the MPN QUINT-PS/1AC/24DC/20, item number 2866776, required quantity, and application requirements to request RFQ support and technical alignment for this industrial power supply.
