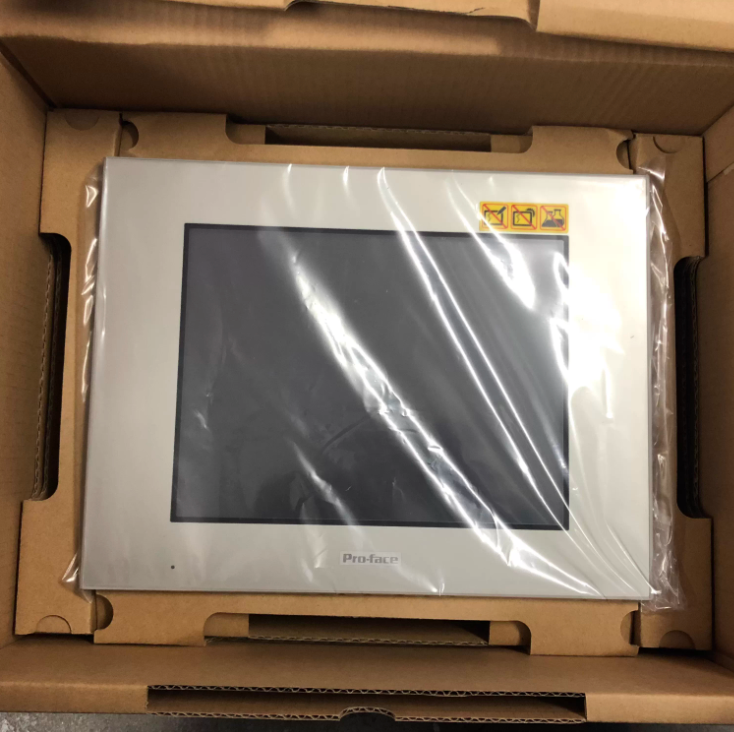

Pro-face PFXGP4601TAD GP4000 Touch Panel Screen, 12.1" TFT LCD, 24VDC
Regular price
$600.00 USD
Regular price
Sale price
$600.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Pro-face PFXGP4601TAD from the GP4000 Series is a robust 12.1" touch panel screen. With a TFT color LCD display and advanced connectivity options, it is designed for demanding industrial applications, ensuring reliable operation and versatile interfacing.
| Range of Product | Pro-face GP4000 |
| Display Size | 12.1 inch |
| Display Type | Colour TFT LCD |
| Display Colors | 65,536 colours |
| Resolution | 800 x 600 pixels SVGA |
| Touch Panel Type | Single touch analogue resistive |
| Backlight Life | 50,000 hours |
| Rated Supply Voltage | 24 V DC |
| Inrush Current | 30 A |
| Memory | User data memory 32 MB, Backup memory 320 kB |
| Integrated Connection Type | COM1: RS232C, COM2: RS422/RS485, USB 2.0 Type A & mini-B, Ethernet 10BASE-T/100BASE-TX |
| Maximum Power Consumption | 17 W |
| Cut-out Dimensions | 301.5 x 227.5 mm |
| Product Certifications | UL, cUL, CE, UKCA, UKEX, KC, CCC Ex, RCM, EAC, DNV, ABS, LR, BV, RINA, CCS, NK |
| NEMA Degree of Protection | NEMA 4X front panel (in enclosure), NEMA 13 front panel (in enclosure) |
| Standards | EN 61000-6-4, IEC 61000-6-2, UL 508, CSA C22.2 No 142, ANSI/ISA 12.12.01, CSA C22.2 No 213 Class I Division 2 |
| Directives | 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility, 2012/19/EU - WEEE directive, 2011/65/EU - RoHS, 2015/863/EU - RoHS directive |
| IP Degree of Protection | IP65f (front panel (in enclosure)) |
| Ambient Air Temperature for Operation | 0…55 °C |
| Ambient Air Temperature for Storage | -20…60 °C |
| Relative Humidity | 10…90 % non condensing |
| Operating Altitude | 2000 m |
| Pollution Degree | 2 |
| Environmental Characteristic | Corrosive gas free |
| Vibration Resistance | 3.5 mm (f = 5…9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min), 9.8 m/s² (f = 9…150 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) conforming to EN/IEC 61131-2 |
| Shock Resistance | 147 m/s² (X, Y, Z directions for 3 times) conforming to EN/IEC 61131-2 |
| Insulation Resistance | > 10 MOhm |
| Electromagnetic Compatibility | Electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to EN/IEC 61000-4-2 level 3 |
