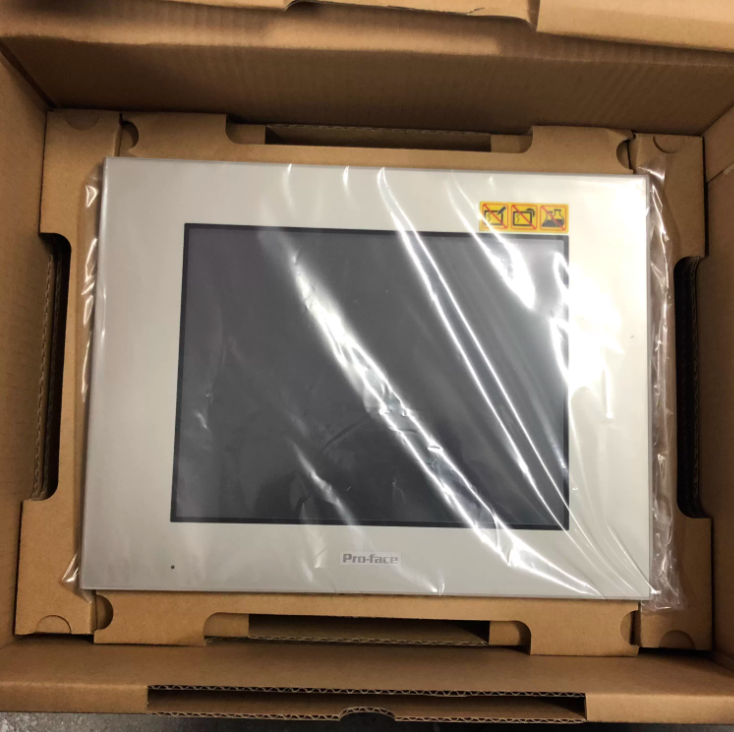

Pro-face PFXGP4601TMA GP4000 Touch Panel Screen, 12.1" TFT LCD, Matrix, AC Supply
Regular price
$600.00 USD
Regular price
Sale price
$600.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Pro-face PFXGP4601TMA from the GP4000 Series is a versatile 12.1" touch panel screen with a matrix touch interface. Designed for industrial settings, it features reliable AC power supply and multiple connectivity options, driven by the ARM926EJ-S processor and managed through the GP-Pro EX software package.
| Product Type | Touch panel screen |
| Range of Product | Pro-face GP4000 |
| Software Package | GP-Pro EX |
| Processor Name | ARM926EJ-S |
| Display Size | 12.1 inch |
| Display Type | Colour TFT LCD |
| Display Colors | 65,536 colours |
| Resolution | 800 x 600 pixels SVGA |
| Touch Panel Type | Single touch analogue resistive |
| Backlight Life | 50,000 hours |
| Rated Supply Voltage | 100...240 V AC |
| Inrush Current | 30 A |
| Memory | User data memory 32 MB, Backup memory 320 kB |
| Integrated Connection Type | COM1: RS232C, COM2: RS422/RS485, USB 2.0 Type A & mini-B, Ethernet 10BASE-T/100BASE-TX |
| Cut-out Dimensions | 301.5 x 227.5 mm |
