Saginomiya AWR-1203GLW–5020FLWH Water Regulating Valves, 3/8–2 in
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Saginomiya AWR water regulating valve family on this page includes AWR-1203GLW, AWR-1504GLW, AWR-2006GLW, AWR-2510GLW, AWR-3212GLW, AWR-4014FLW, and AWR-5020FLWH. These pressure-operated two-way valves open as refrigerant pressure increases, regulating cooling-water flow in water-cooled refrigeration systems. Connection sizes range from 3/8 in Rc to 2 in flange, depending on the exact catalog number.

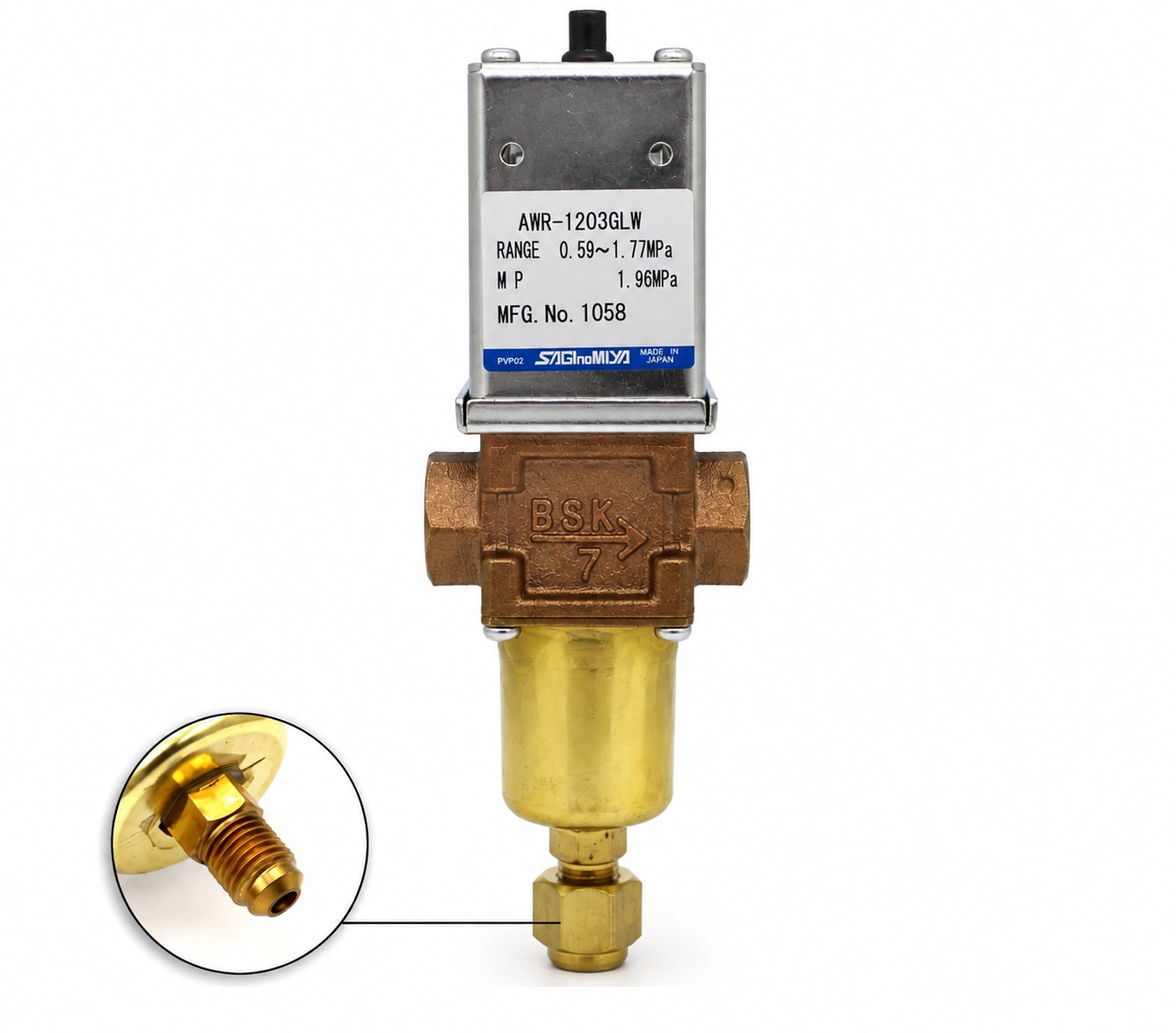

| Catalog No. AWR-1203GLW | 3/8 in Rc connection; adjustable range 0.59–1.77 MPa; factory opening setting 0.74 MPa |

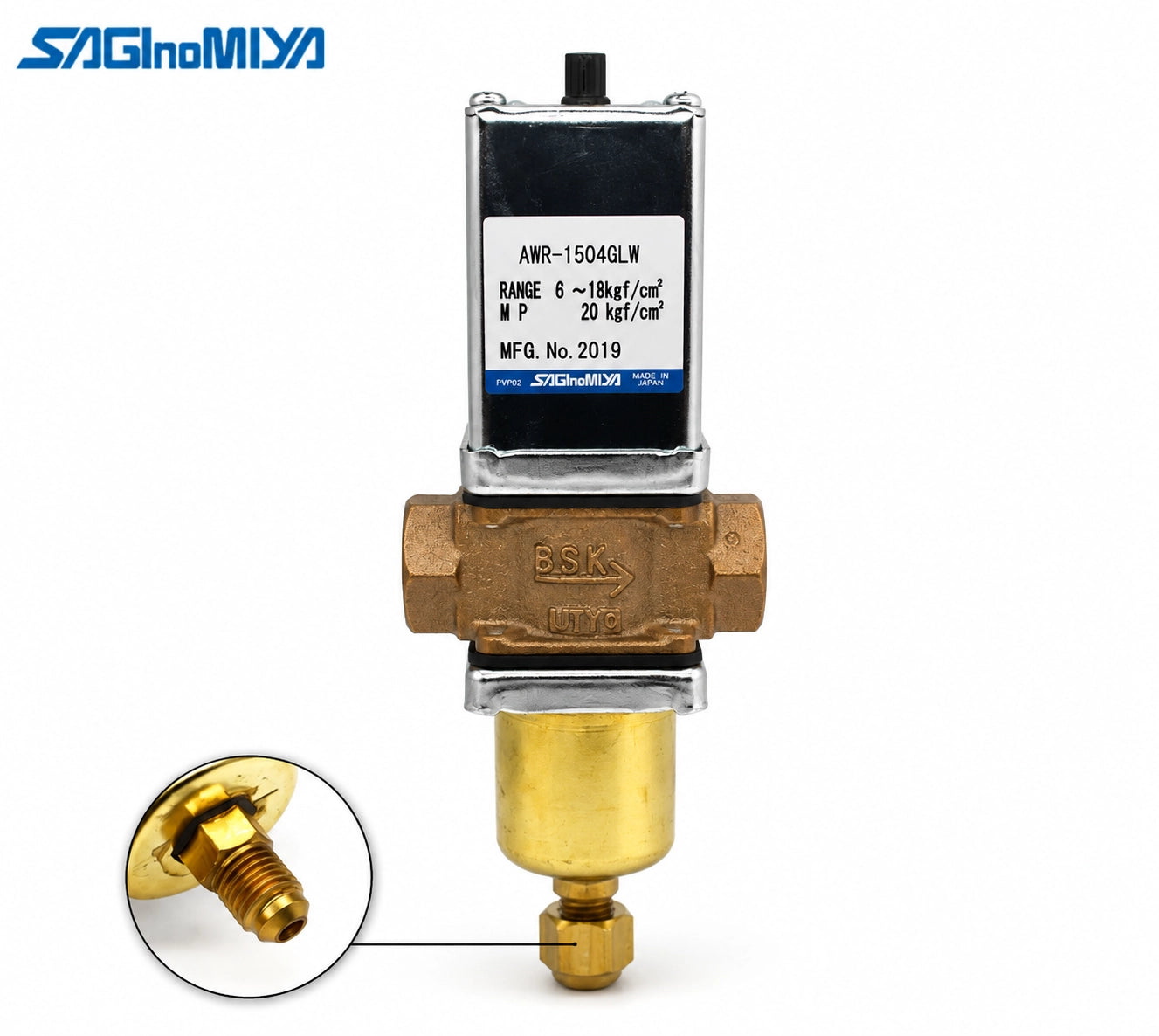

| Catalog No. AWR-1504GLW | 1/2 in Rc connection; adjustable range 0.59–1.77 MPa; factory opening setting 0.74 MPa |

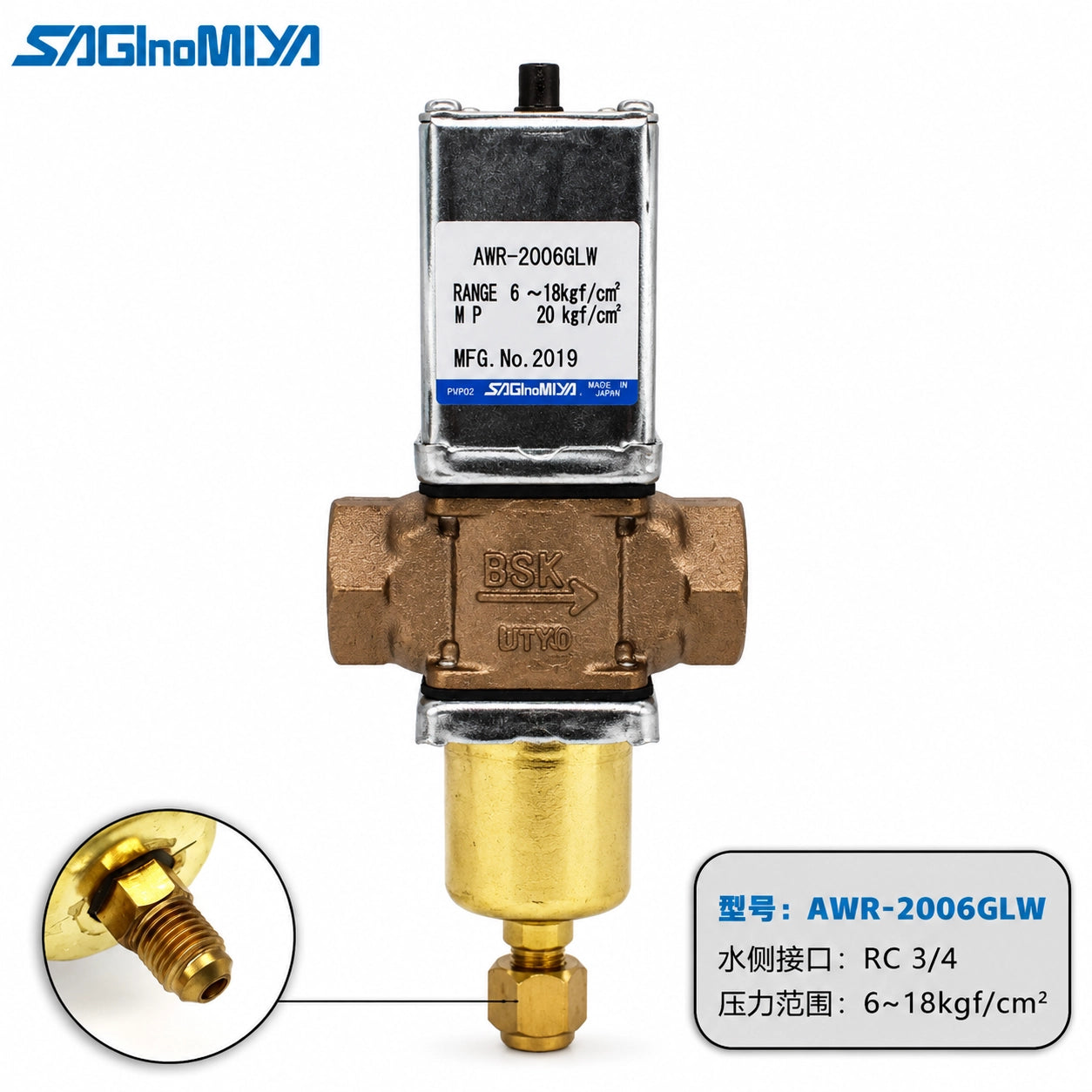

| Catalog No. AWR-2006GLW | 3/4 in Rc connection; adjustable range 0.59–1.77 MPa; factory opening setting 0.74 MPa |

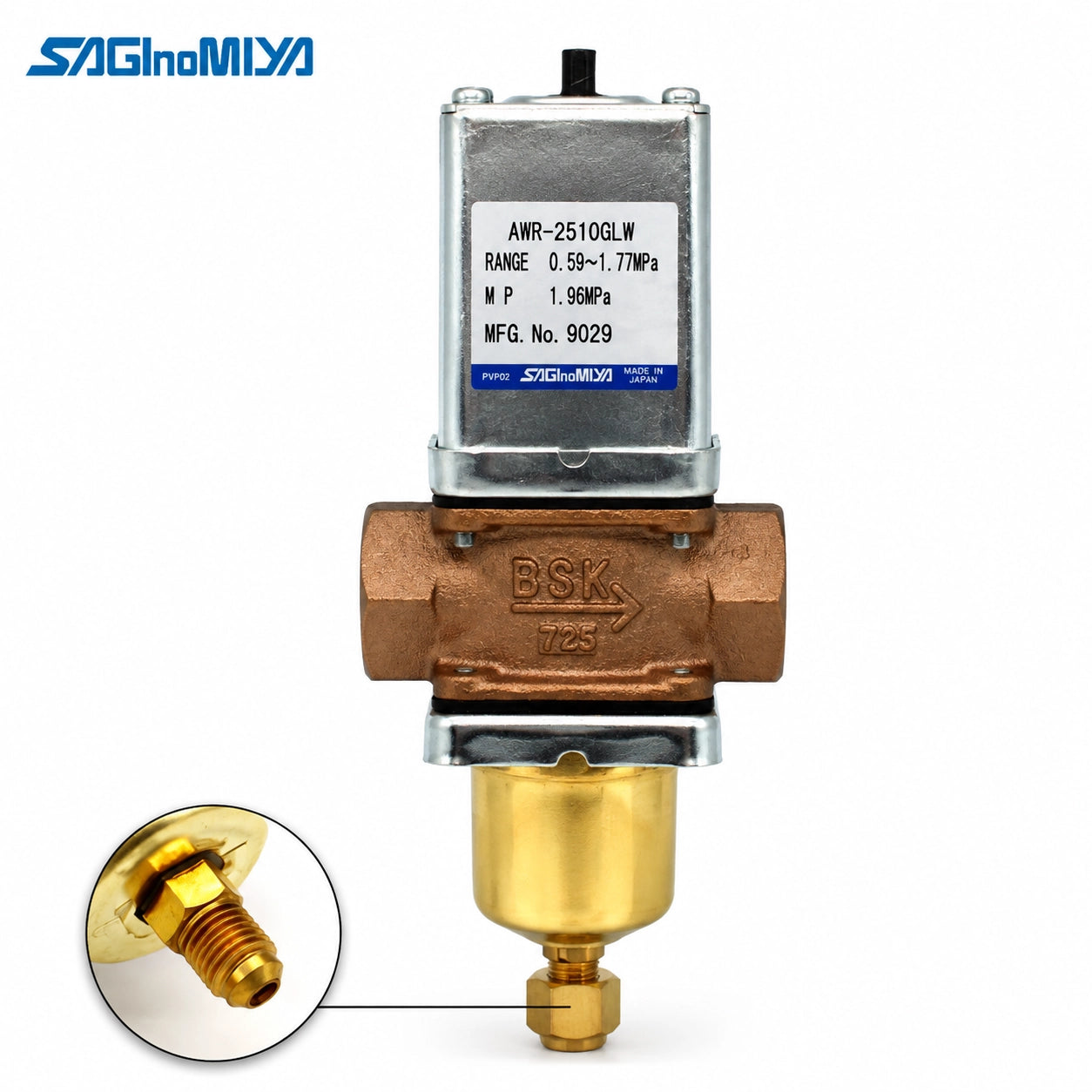

| Catalog No. AWR-2510GLW | 1 in Rc connection; adjustable range 0.59–1.77 MPa; factory opening setting 0.74 MPa |

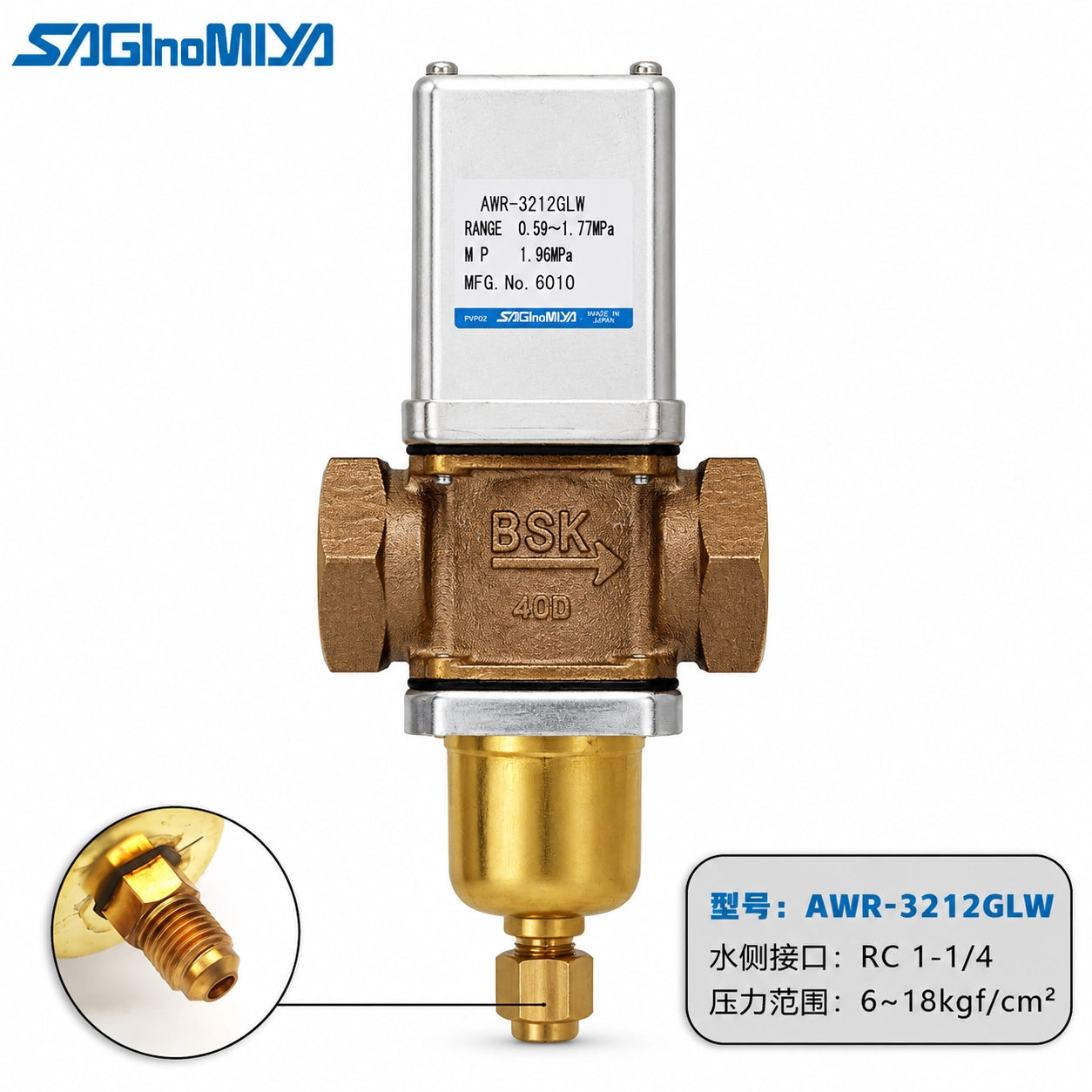

| Catalog No. AWR-3212GLW | 1-1/4 in Rc connection; adjustable range 0.59–1.77 MPa; factory opening setting 0.74 MPa |

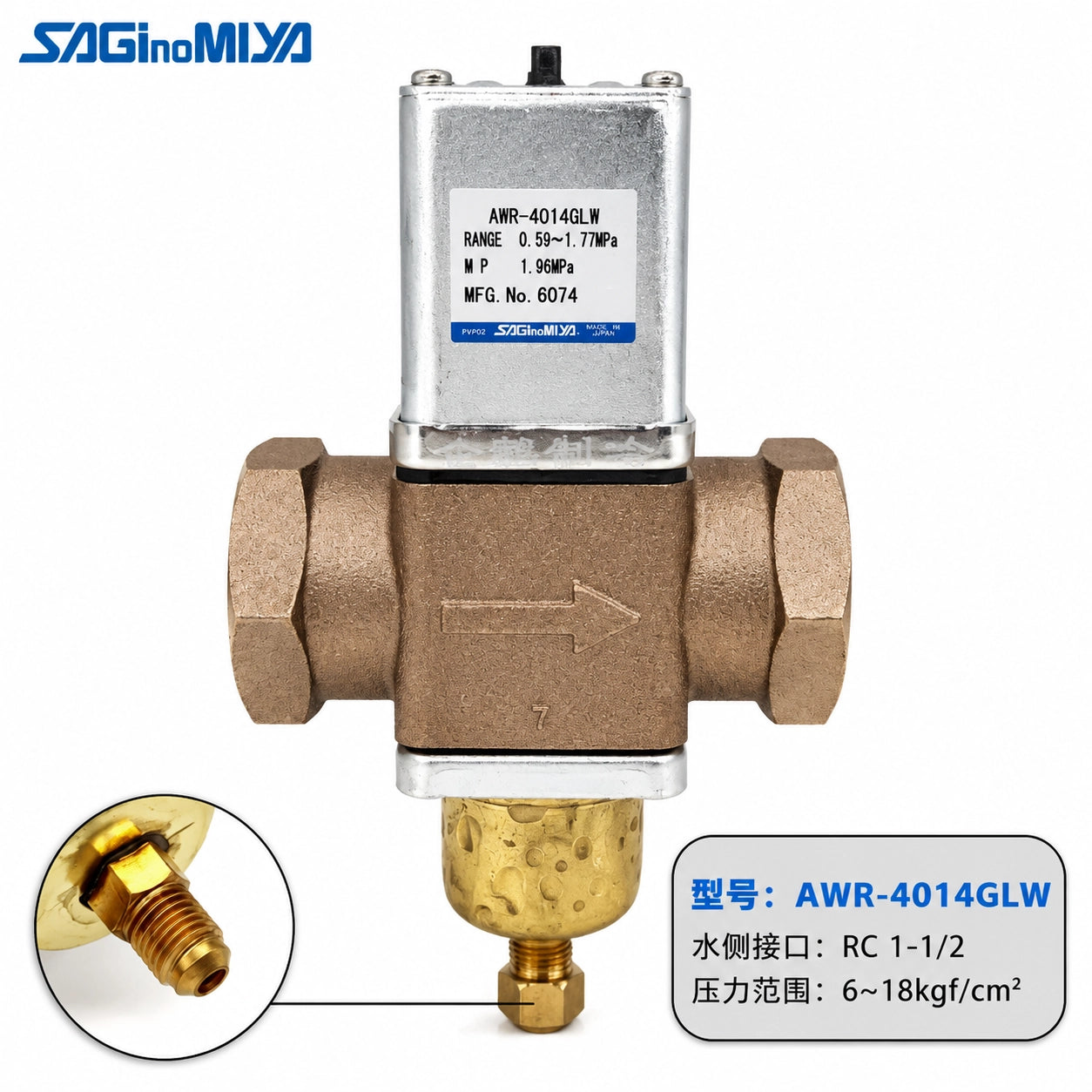

| Catalog No. AWR-4014FLW | 1-1/2 in flange connection; adjustable range 0.59–1.77 MPa; factory opening setting 0.74 MPa |

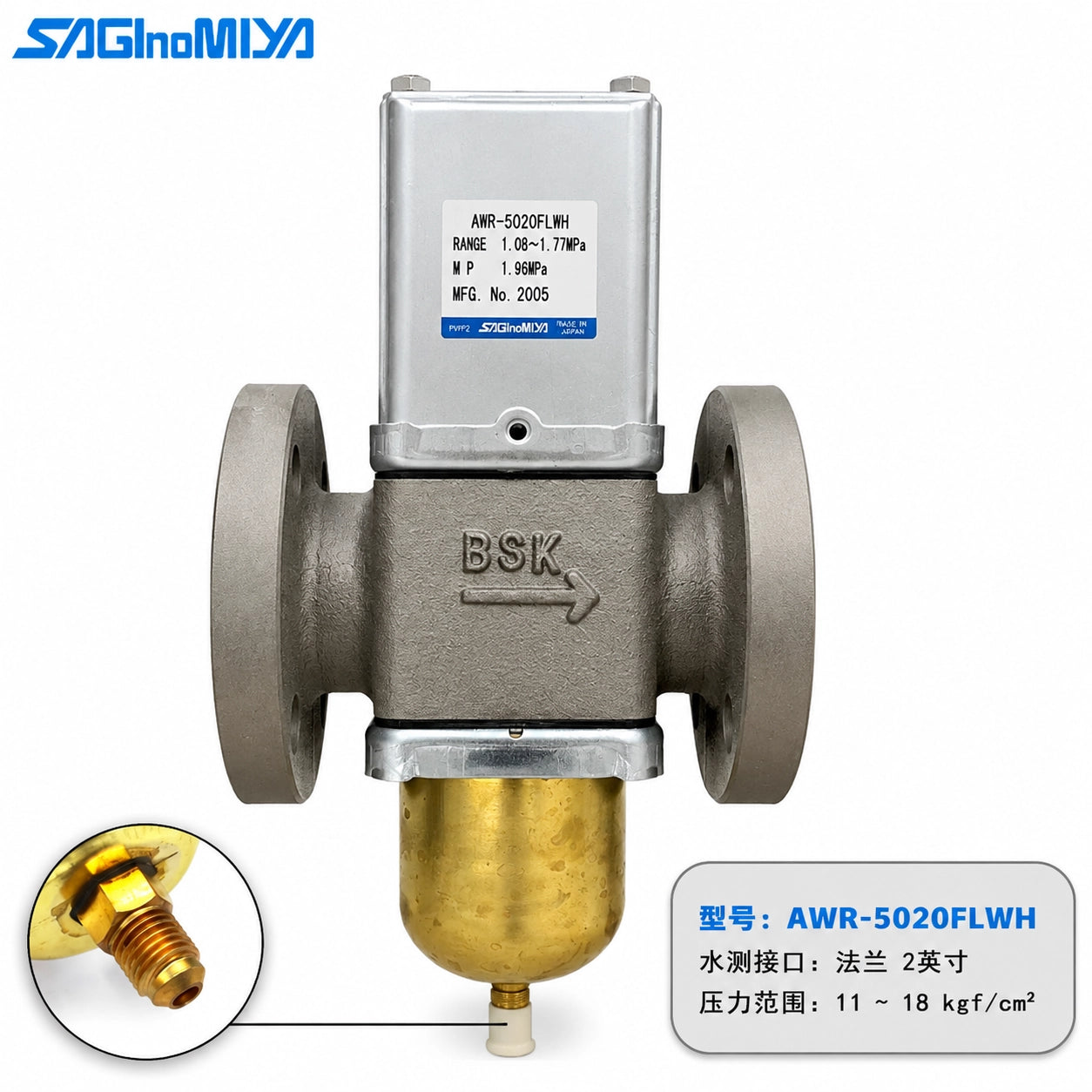

| Catalog No. AWR-5020FLWH | 2 in flange connection; high-range adjustment 1.08–1.77 MPa; factory opening setting 1.23 MPa |
| Valve Configuration | Pressure-operated two-way valve; opens on pressure increase |
| Refrigerant Type | Fluorinated refrigerants |
| Maximum Working Pressure | Refrigerant side: 1.96 MPa; cooling-water side: 0.98 MPa |
| Maximum Water Temperature | 60 °C |
| Standard Pressure Connection | 1/4 in flare nut |
Typical applications include water-cooled air-conditioning systems, chilled-water and cooling-water circuits, and heat-pump source-water circuits. Confirm the exact catalog number, connection size, pressure range, valve opening setting, body material, and installation dimensions before replacement.
Apexon Supply provides B2B sourcing and replacement support for Saginomiya AWR water regulating valves, helping procurement and maintenance teams compare Rc-threaded, flanged, standard-range, and high-range configurations.
Submit AWR-1203GLW, AWR-1504GLW, AWR-2006GLW, AWR-2510GLW, AWR-3212GLW, AWR-4014FLW, or AWR-5020FLWH, together with the required quantity and system requirements, for RFQ support. Most qualified RFQs receive a response or quote within 12 hours.
