Saginomiya DNS Series Dual Pressure Controls, Automatic & Manual Reset, 1/4 in Flare
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
Saginomiya DNS Series Dual Pressure Controls combine low-pressure and high-pressure control functions in one compact unit. This family page covers DNS-D306X, DNS-D306XM, DNS-D606X, DNS-D606XM and DNS-D606XMM, including automatic-reset, single-side manual-reset and dual-side manual-reset configurations.
| Product Type | Dual pressure control |
| Low-Side Range | -0.06 to 0.6 MPa (-50 cmHg to 6 kgf/cm²) |
| High-Side Range | 0.8 to 3 MPa (8 to 30 kgf/cm²) |
| Low-Side Maximum Working Pressure | 1.5 MPa (15 kgf/cm²) |
| High-Side Maximum Working Pressure | 3.3 MPa (33 kgf/cm²) |
| Pressure Connection | 1/4 in flare connection with 7/16-20 thread |
| Enclosure | IP20 |
| Fluid Temperature | -20 to 120 °C |
| Ambient Temperature | -20 to 70 °C |
| Electrical Rating | 125/250 V AC; 12 A non-inductive; 0.75 A inductive full load; 72 A inrush |
| Minimum Contact Capacity | 50 mA |
| Mounting Bracket | Supplied as standard |
| Catalog Number | Reset and Contact Configuration |
| DNS-D306X | Automatic reset; low-side differential 0.06 to 0.4 MPa; high-side differential approximately 0.4 MPa fixed; contact function Diagram 1 |

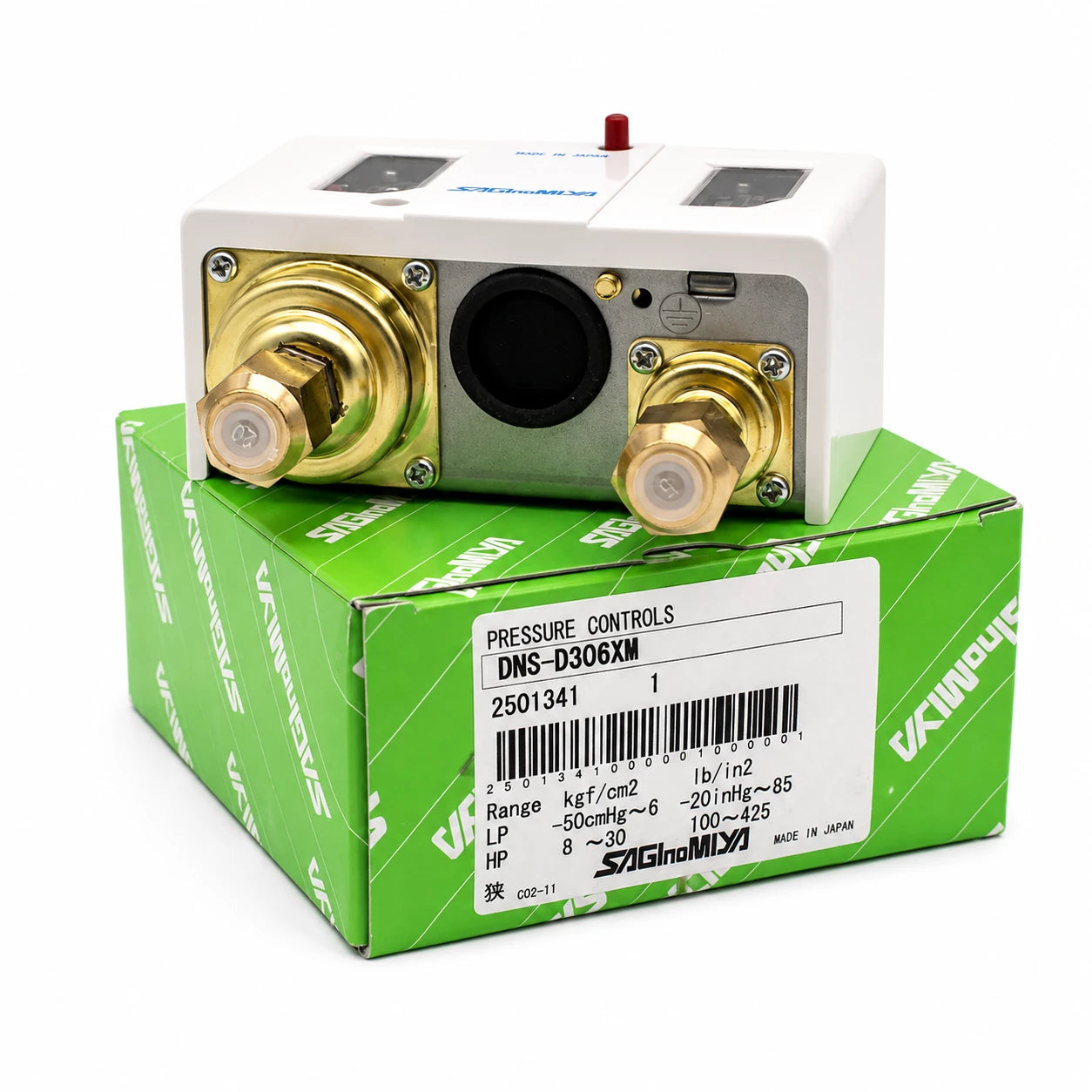

| DNS-D306XM | Low-side automatic operation; high-side automatic operation on pressure increase and manual reset on pressure decrease; contact function Diagram 2 |
| DNS-D606X | Automatic reset; low-side differential 0.06 to 0.4 MPa; high-side differential approximately 0.4 MPa fixed; contact function Diagram 3 |
| DNS-D606XM | Low-side automatic operation; high-side automatic operation on pressure increase and manual reset on pressure decrease; contact function Diagram 4 |

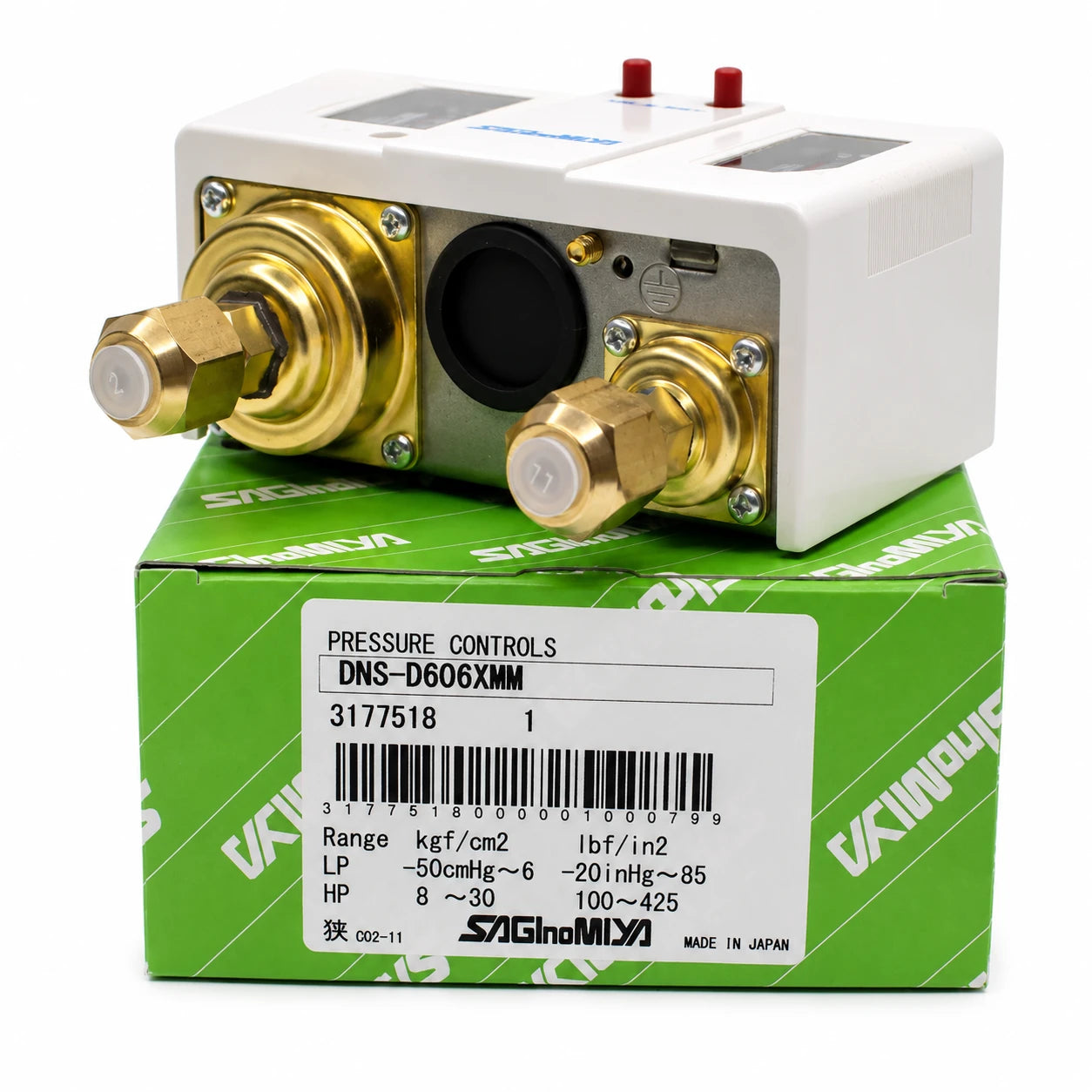

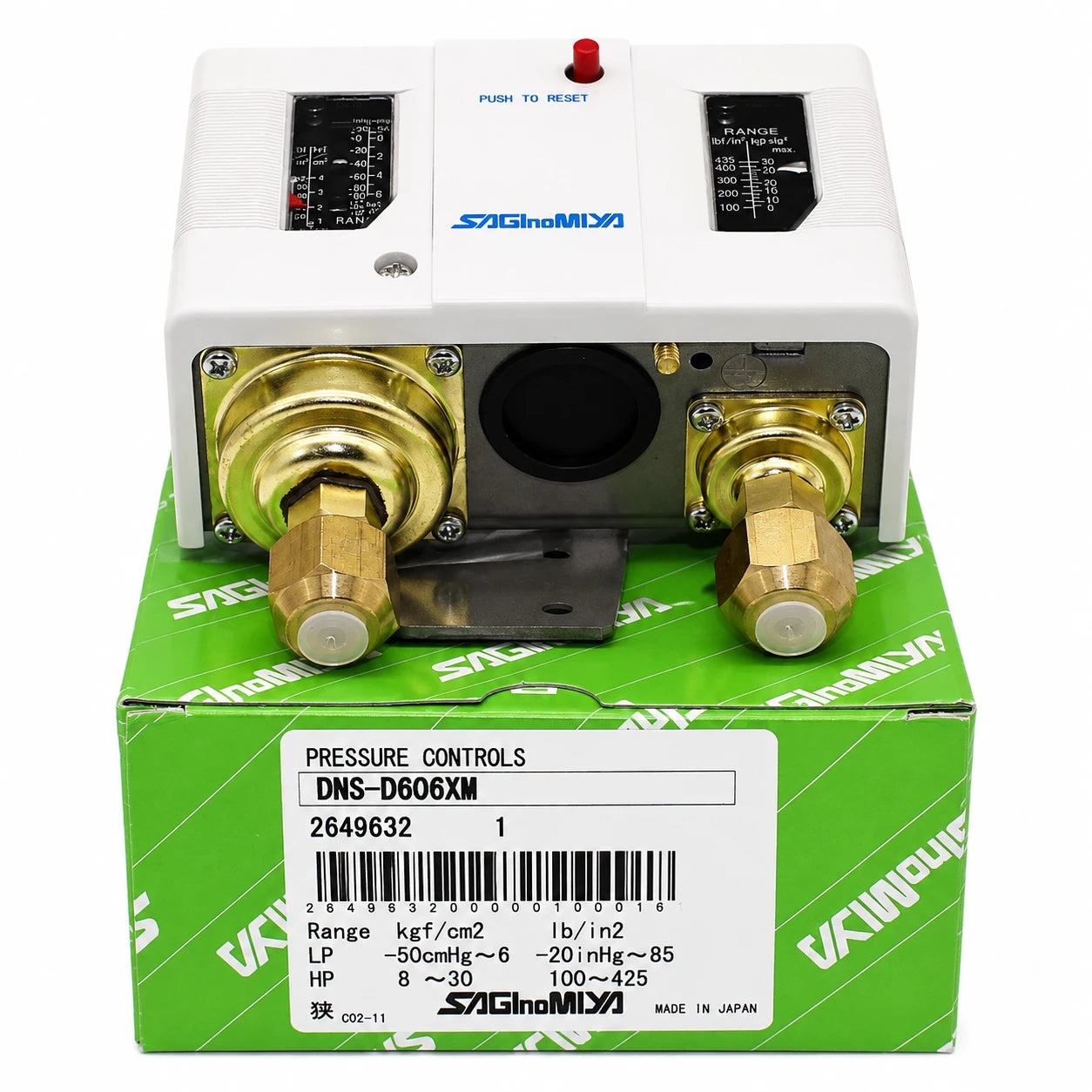

| DNS-D606XMM | Low-side automatic operation on pressure decrease with manual reset on pressure increase; high-side automatic operation on pressure increase with manual reset on pressure decrease; contact function Diagram 5 |
Typical applications: The DNS Series is specified for use with fluorinated refrigerants as well as air and water. Confirm the controlled medium, operating pressure, reset configuration and required contact function before selection.
Apexon Supply provides B2B sourcing and replacement support for Saginomiya DNS Series dual pressure controls. Buyers should compare the exact catalog number, low- and high-side pressure ranges, reset operation, contact diagram and electrical rating with the installed control.
For an RFQ, submit DNS-D306X, DNS-D306XM, DNS-D606X, DNS-D606XM or DNS-D606XMM with the required quantity, controlled medium and operating-pressure details. Most qualified RFQs receive a response or quote within 12 hours.
