Saginomiya RGE Series Condenser Fan Speed Controllers, 200–415 V AC, 0.2–8 A

$100.00 USD

Sale Sold out

Shipping calculated at checkout.

Model RGE-Z1N4-7 200~240V 0.2~4A RGE-Z1Q4-7 200~240V 0.2~8A RGE-X3R4-7 380~415V 0.2~5A RGE-Z1N6-7 R410A 200~240V 0.2~4A RGE-Z1Q6-7 R410A 200~240V 0.2~8A RGE-X3R6-7 R410A 380~415V 0.2~5A

Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)

TECHNICAL DATASHEET PDF

Saginomiya RGE Series Condenser Fan Speed Controllers use phase control to regulate condenser-fan output according to refrigerant pressure. This family page covers RGE-Z1N4-7, RGE-Z1Q4-7, RGE-X3R4-7, RGE-Z1N6-7, RGE-Z1Q6-7 and RGE-X3R6-7, with single-phase 200–240 V AC and three-phase 380–415 V AC configurations.

Control Method	Phase control
Maximum Working Pressure	4.7 MPa
Enclosure	IP54
Supply Frequency	50/60 Hz
Low-Speed Modes	Minimum-speed operation or cut-off operation, selectable by changeover switch
Pressure Connection	1/4 in female flare with Schrader and copper packing
Capillary Length	900 ±100 mm
External Forced Operation	External forced-operation switch connection supported

Listed Model Configurations

Catalog Number	Verified Configuration

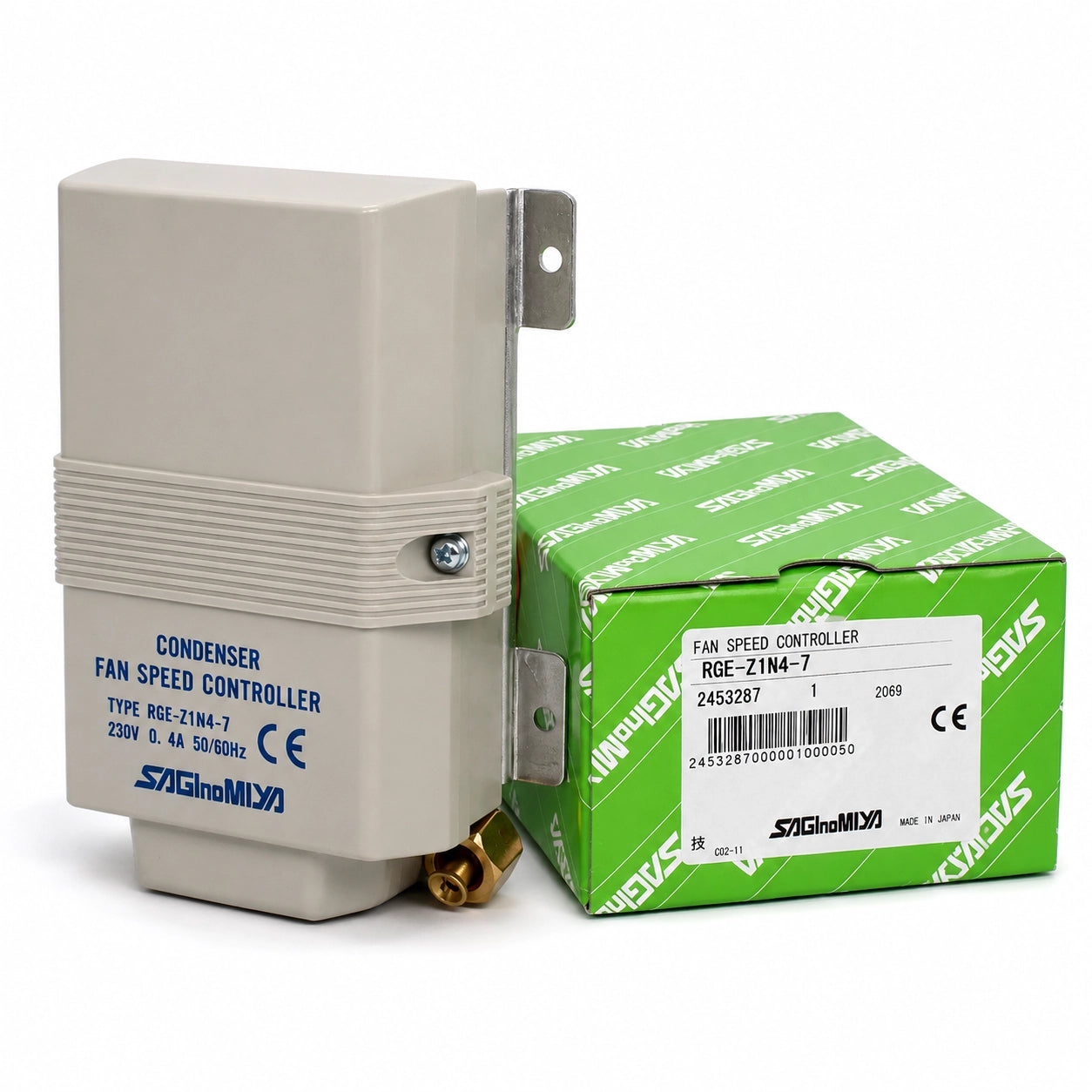

RGE-Z1N4-7	Single phase; 200–240 V AC; 0.2–4 A; R22, R404A and R407C; F.V.S. factory setting 1.9 MPa; adjustment range 0.8–2.8 MPa; fixed E.P.B. 0.4 MPa; ambient temperature -20 to 55 °C
RGE-Z1Q4-7	Single phase; 200–240 V AC; 0.2–8 A; R22, R404A and R407C; F.V.S. factory setting 1.9 MPa; adjustment range 0.8–2.8 MPa; fixed E.P.B. 0.4 MPa; ambient temperature -20 to 55 °C

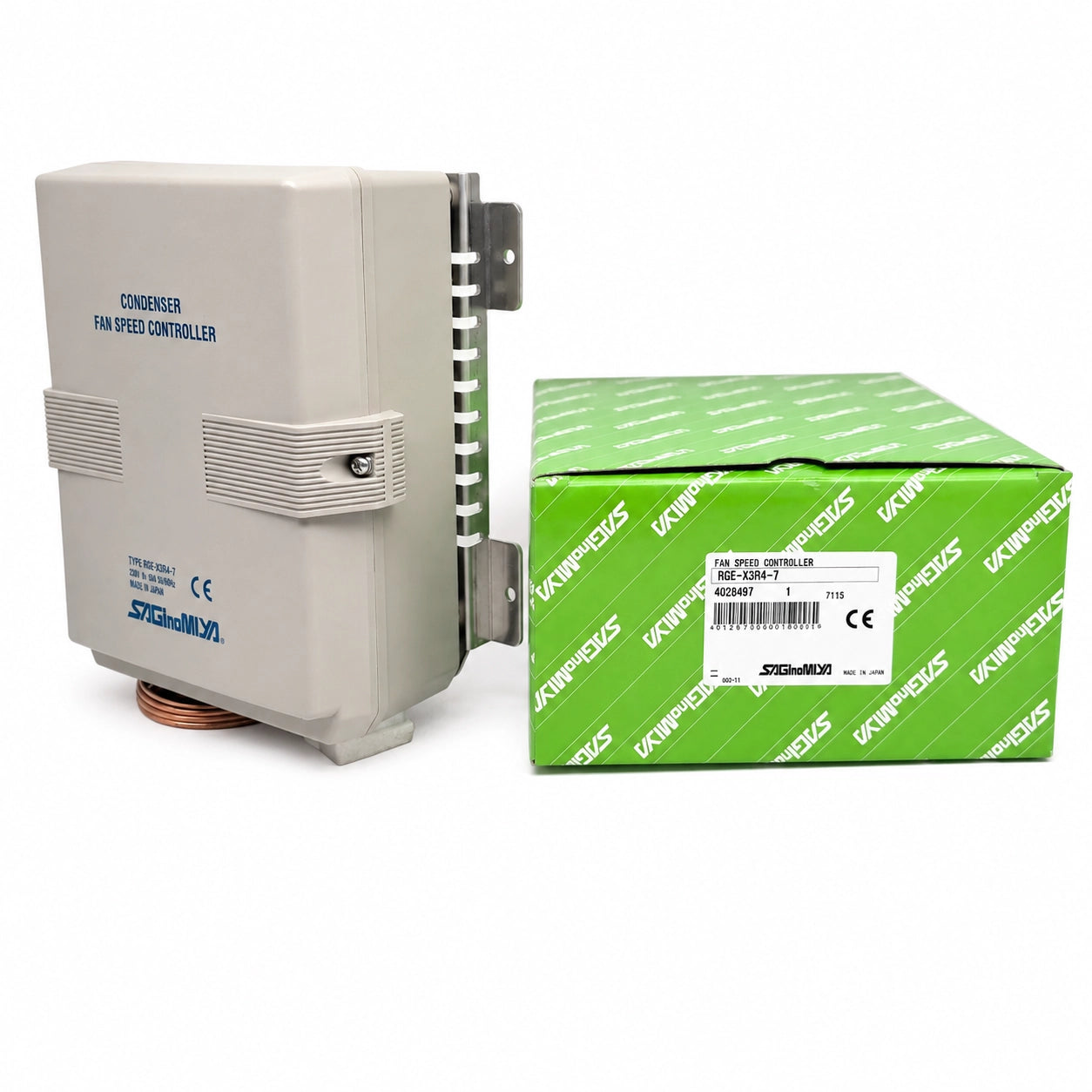

RGE-X3R4-7	Three phase; 380–415 V AC; 0.2–5 A; R22, R404A and R407C; F.V.S. factory setting 1.6 MPa; adjustment range 0.8–2.8 MPa; fixed E.P.B. 0.4 MPa; ambient temperature -15 to 50 °C

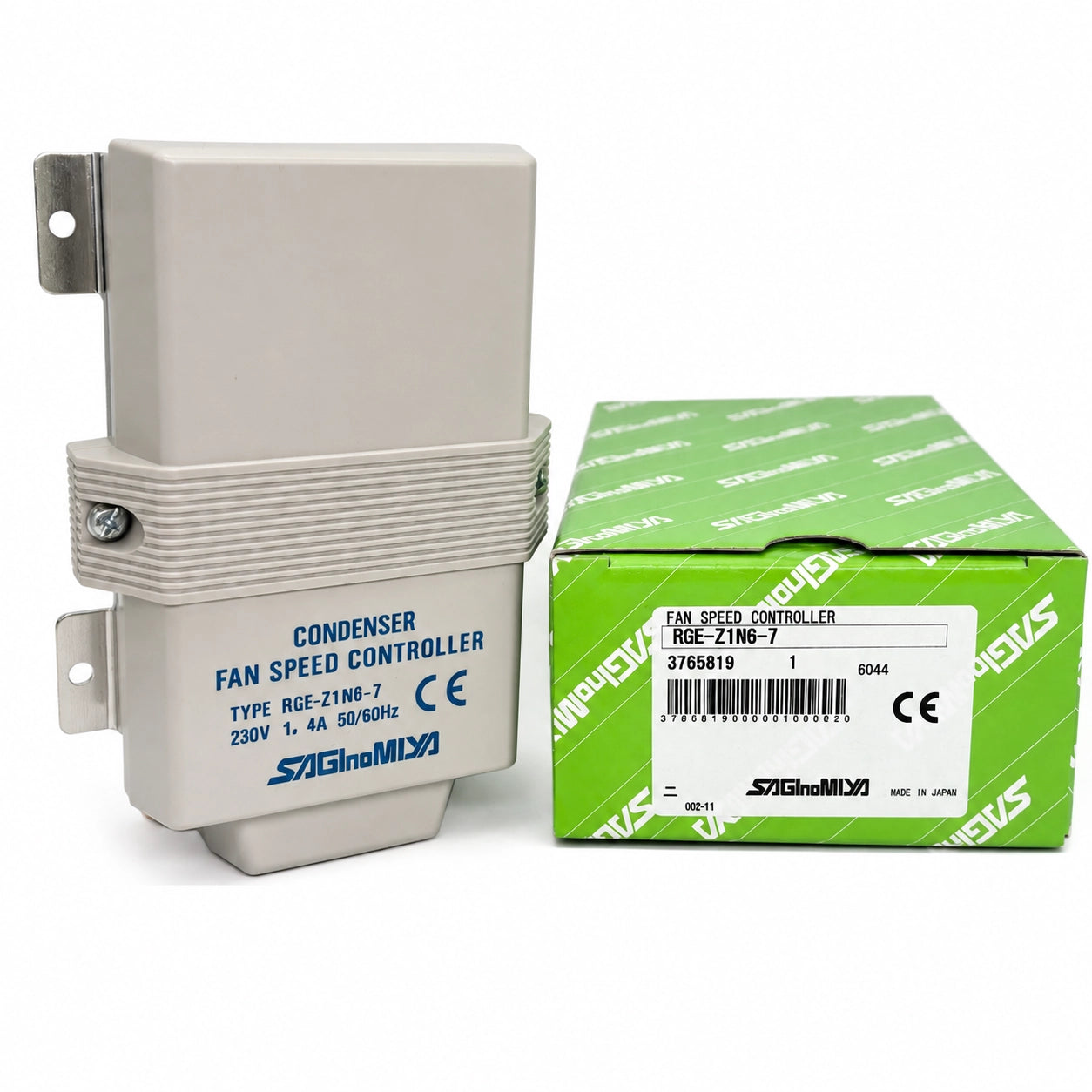

RGE-Z1N6-7	Single phase; 200–240 V AC; 0.2–4 A; R410A; F.V.S. factory setting 3.2 MPa; adjustment range 1.6–3.9 MPa; fixed E.P.B. 0.8 MPa; ambient temperature -20 to 55 °C
RGE-Z1Q6-7	Single phase; 200–240 V AC; 0.2–8 A; R410A; F.V.S. factory setting 3.2 MPa; adjustment range 1.6–3.9 MPa; fixed E.P.B. 0.8 MPa; ambient temperature -20 to 55 °C

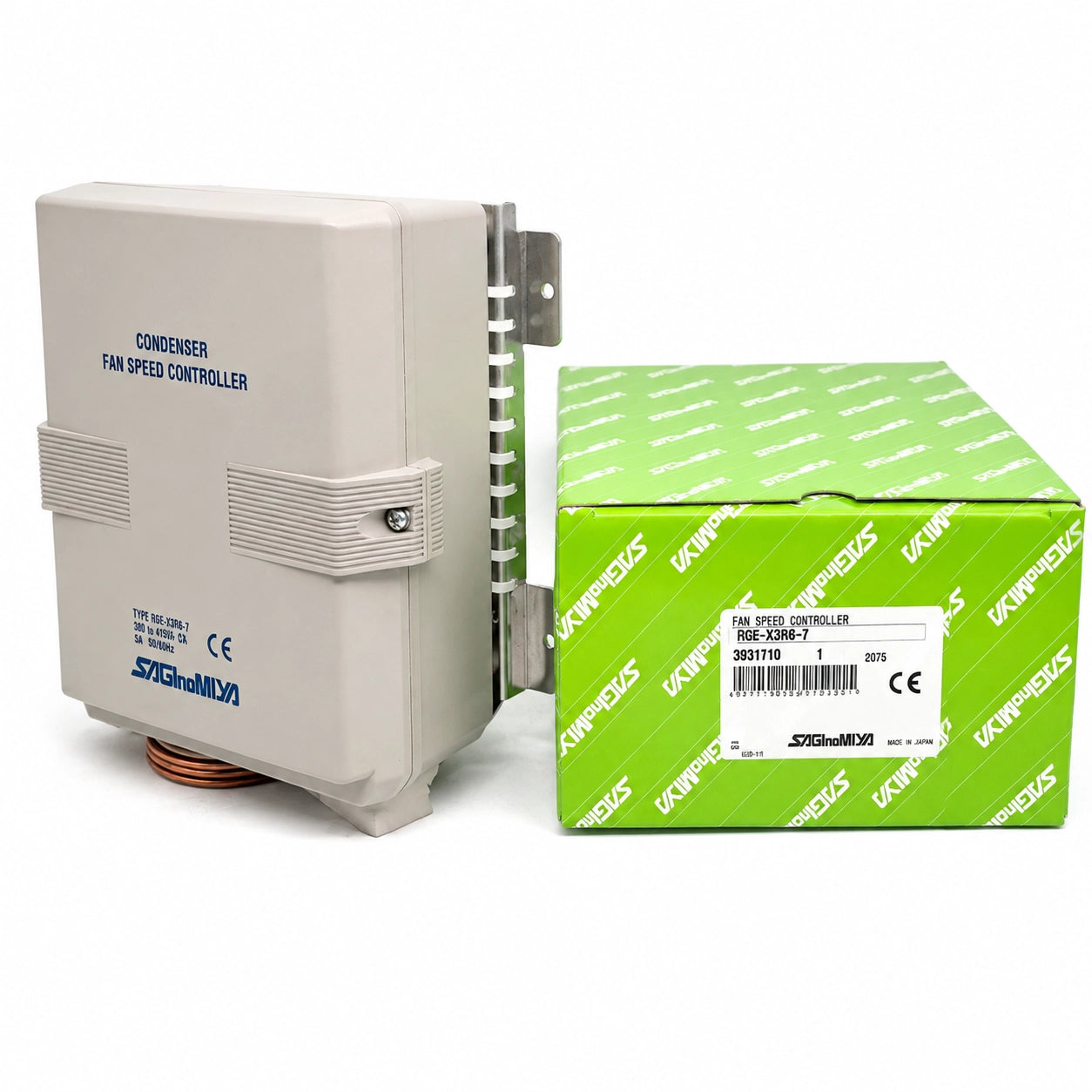

RGE-X3R6-7	Three phase; 380–415 V AC; 0.2–5 A; R410A; F.V.S. factory setting 3.2 MPa; adjustment range 1.6–3.9 MPa; fixed E.P.B. 0.8 MPa; ambient temperature -15 to 50 °C

Typical applications: The RGE Series is designed to control condenser-fan speed in freezing and refrigeration condensing units, packaged air conditioners and other systems operated throughout the year. Pressure-based fan control helps maintain condensing pressure during winter and intermediate seasons.

Apexon Supply provides B2B sourcing and replacement support for Saginomiya RGE Series condenser fan speed controllers. Confirm the complete catalog number, refrigerant, phase, supply voltage, motor-current range, fan characteristics and pressure settings before replacement.

For an RFQ, submit RGE-Z1N4-7, RGE-Z1Q4-7, RGE-X3R4-7, RGE-Z1N6-7, RGE-Z1Q6-7 or RGE-X3R6-7 with the required quantity and application details. Most qualified RFQs receive a response or quote within 12 hours.
