The Saginomiya pressure-control variants listed on this page are SNS-C101X, SNS-C103X, SNS-C106NG, SNS-C106XM2, SNS-C110X, SNS-C130X, and HNS-C130XM1. SNS-C101X, SNS-C103X, SNS-C110X, and SNS-C130X are automatic-reset controls, while SNS-C106XM2 and HNS-C130XM1 use manual-reset functions. SNS-C106NG uses stainless-steel bellows and an Rc (FPT) 1/4 pressure connection.

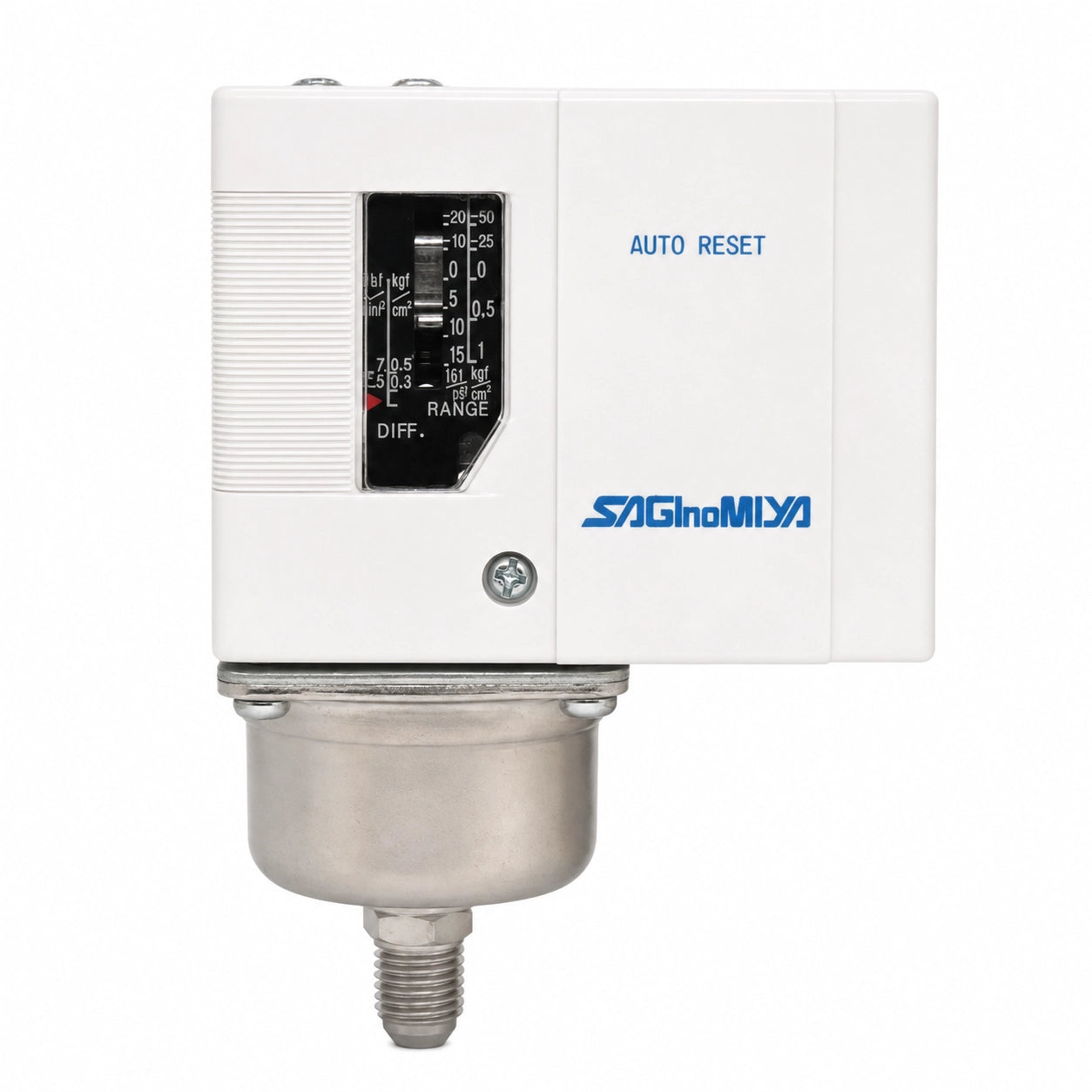

| Catalog No. SNS-C101X | Automatic reset; adjustable range -0.06 to 0.1 MPa (-50 cmHg to 1 kgf/cm²); differential 0.015 to 0.05 MPa; maximum working pressure 0.3 MPa |

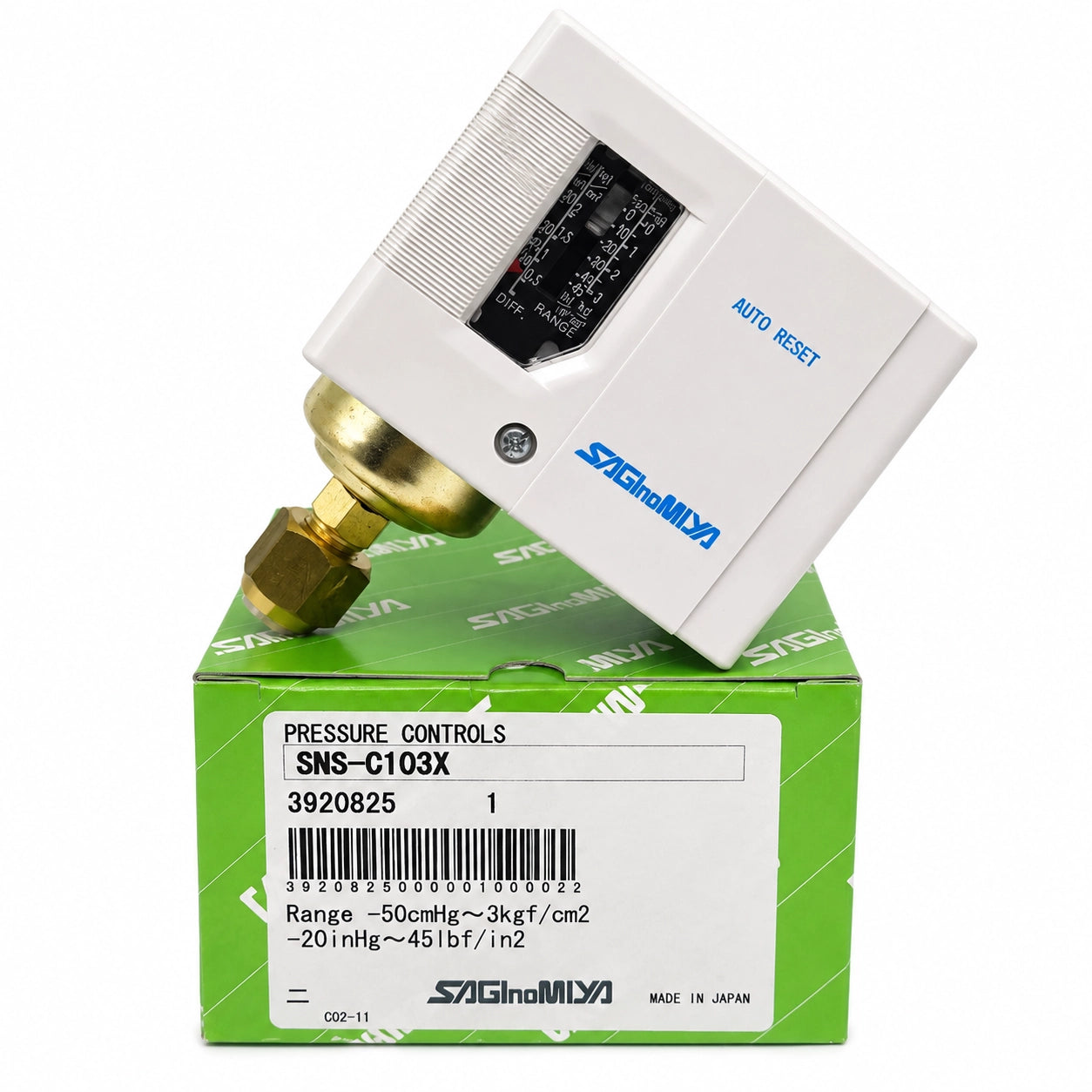

| Catalog No. SNS-C103X | Automatic reset; adjustable range -0.06 to 0.3 MPa (-50 cmHg to 3 kgf/cm²); differential 0.035 to 0.2 MPa; maximum working pressure 1 MPa |

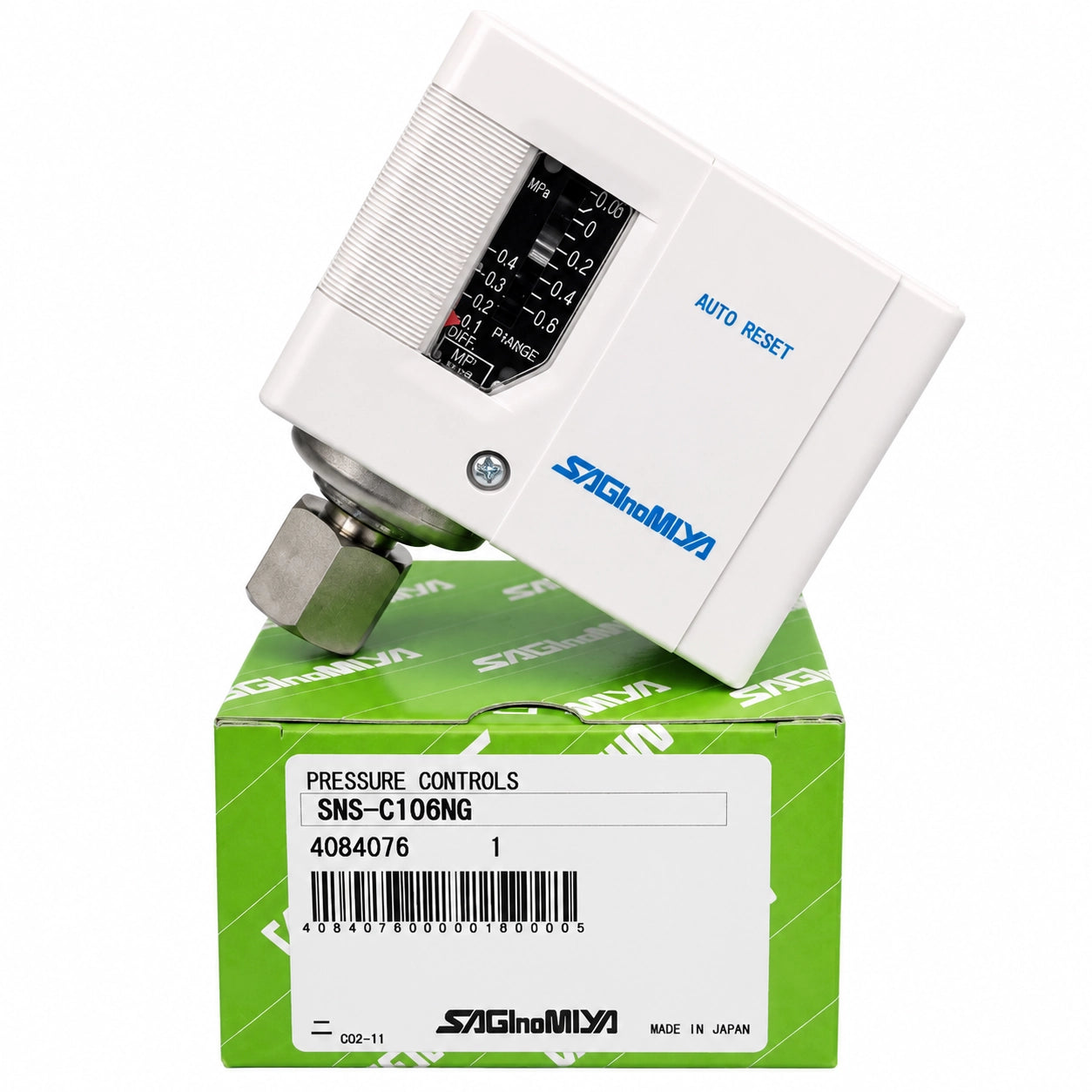

| Catalog No. SNS-C106NG | Adjustable range -0.06 to 0.6 MPa (-50 cmHg to 6 kgf/cm²); stainless-steel bellows; differential 0.08 to 0.4 MPa; Rc (FPT) 1/4 connection; maximum working pressure 1.5 MPa |

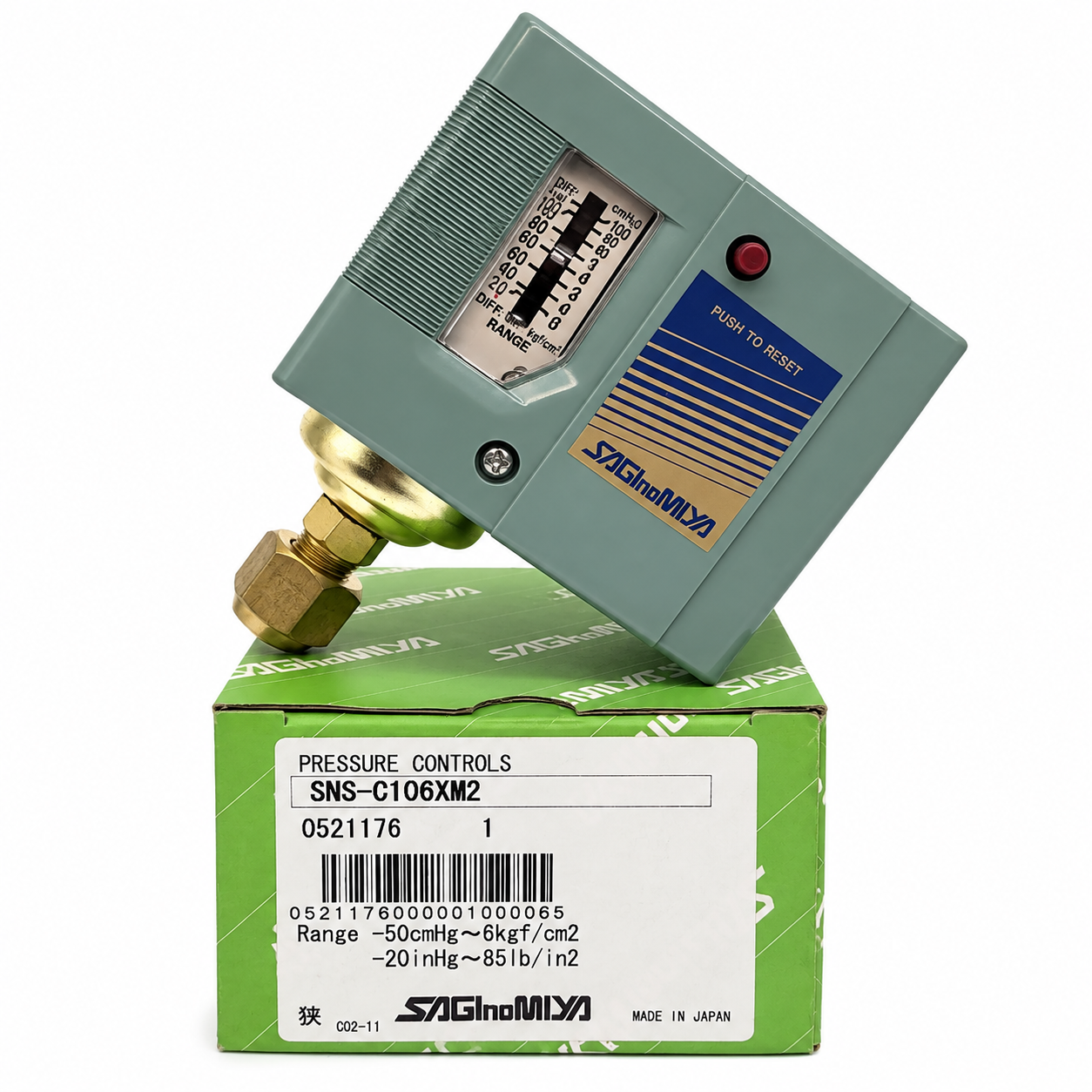

| Catalog No. SNS-C106XM2 | Manual reset on pressure increase and automatic operation on pressure decrease; adjustable range -0.06 to 0.6 MPa (-50 cmHg to 6 kgf/cm²); maximum working pressure 1.5 MPa |
| Catalog No. SNS-C110X | Automatic reset; adjustable range 0.1 to 1 MPa (1 to 10 kgf/cm²); differential 0.1 to 0.3 MPa; maximum working pressure 1.5 MPa |
| Catalog No. SNS-C130X | Automatic reset; adjustable range 0.5 to 3 MPa (5 to 30 kgf/cm²); differential 0.3 to 1 MPa; maximum working pressure 3.3 MPa |
| Catalog No. HNS-C130XM1 | Automatic operation on pressure increase and manual reset on pressure decrease; adjustable range 0.8 to 3 MPa (8 to 30 kgf/cm²); maximum working pressure 3.3 MPa |
| Contact Mechanism | SPDT |
| Electrical Rating | 12 A at 125/250 V AC for non-inductive load and inductive full-load current; 72 A inrush current |
| Standard Pressure Connection | 1/4 in flare, 7/16-20 thread |
| Temperature Limits | Fluid: -20 to 120 °C; ambient: -20 to 70 °C |
| Enclosure Protection | IP20 standard; IP44 with optional upper lid |
Saginomiya specifies SNS and HNS pressure controls for refrigeration, air-conditioning, and various industrial equipment, including systems using fluorinated refrigerants, air, or water. Confirm the exact catalog number, pressure range, reset function, contact wiring, and pressure connection before replacement.
Apexon Supply provides B2B sourcing and replacement support for Saginomiya SNS and HNS pressure controls, helping procurement and maintenance teams identify the required pressure range, reset configuration, and connection type.
Submit SNS-C101X, SNS-C103X, SNS-C106NG, SNS-C106XM2, SNS-C110X, SNS-C130X, or HNS-C130XM1, together with the required quantity, pressure range, reset requirements, and connection details, for RFQ support. Most qualified RFQs receive a response or quote within 12 hours.
