Saginomiya SYS Series Single Function Pressure Controls, X2 kgf/cm² Scale, Automatic Reset
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
Saginomiya SYS Series Single Function Pressure Controls are automatic-reset refrigerant pressure controls with an IP20 enclosure and 7/16-20UNF pressure connection. This family page covers catalog numbers SYS-C106X2, SYS-C110X2, SYS-C130X2 and SYS-C140X2. The X2 catalog-number suffix identifies a kgf/cm² scale display.
| Control Type | Single function pressure control |
| Reset Type | Automatic reset |
| Scale Unit | kgf/cm², catalog suffix X2 |
| Enclosure | IP20 |
| Pressure Connection | 7/16-20UNF |
| Fluid Temperature | -20 to 120 °C |
| Ambient Temperature | -20 to 70 °C |
| Electrical Rating | 125/250 V AC; 12 A non-inductive; 0.75 A inductive full load; 72 A inrush |
| Minimum Contact Capacity | 50 mA |
| Contact Function | Terminal 1 common; terminal 3 closes on pressure increase; terminal 5 closes on pressure decrease |
| Reference Dimensions | 75 mm wide; 86.5 mm overall height; 48 mm depth |
| Catalog Number | Verified Model Parameters |

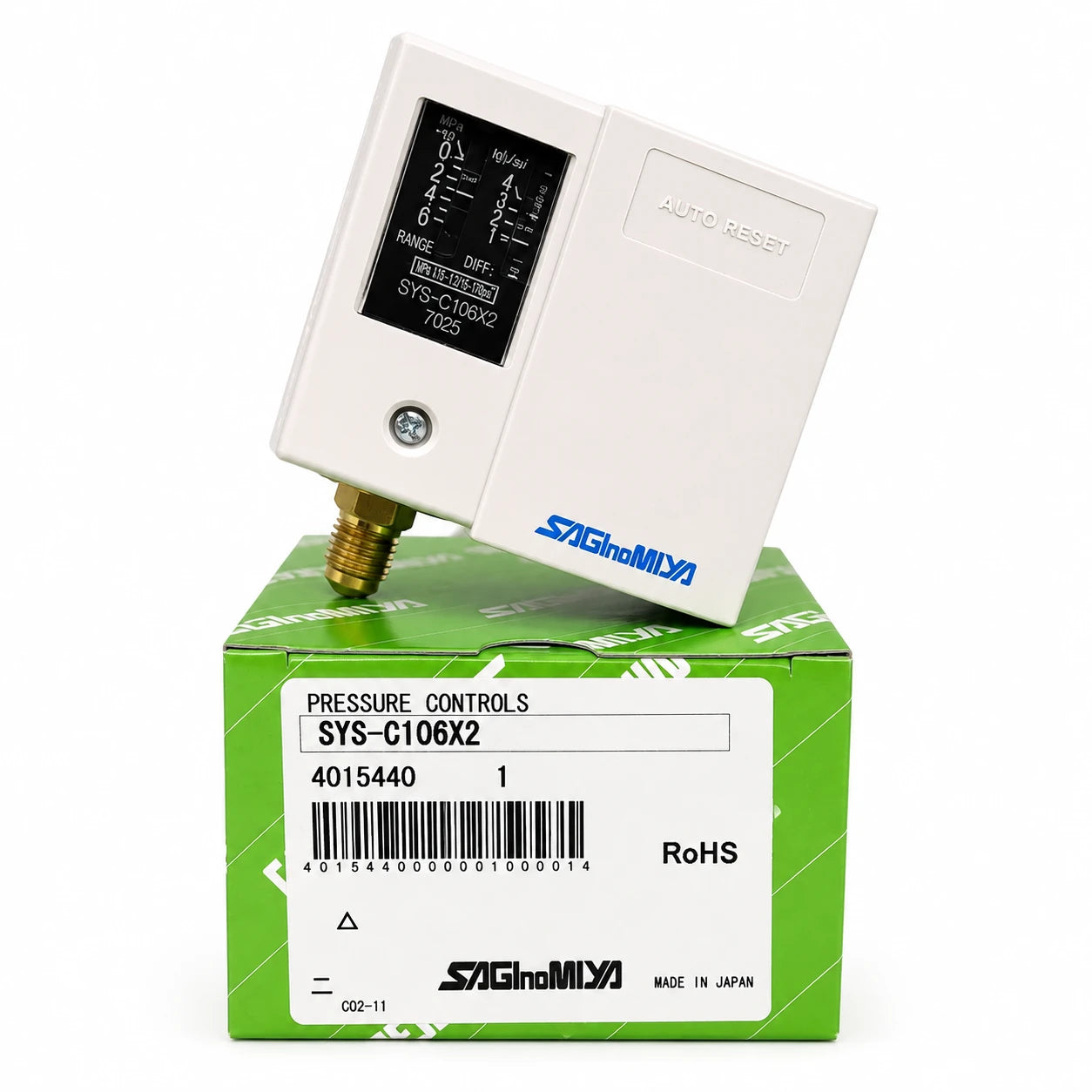

| SYS-C106X2 | R404A, R407C, R134a and R22; range -0.06 MPa (-50 cmHg) to 0.6 MPa (6 kgf/cm²); differential 0.06 to 0.4 MPa (0.6 to 4 kgf/cm²); factory settings 0.2 MPa (2 kgf/cm²) Off (On) and 0.3 MPa (3 kgf/cm²) On (Off); maximum working pressure 1.65 MPa (16.5 kgf/cm²) |

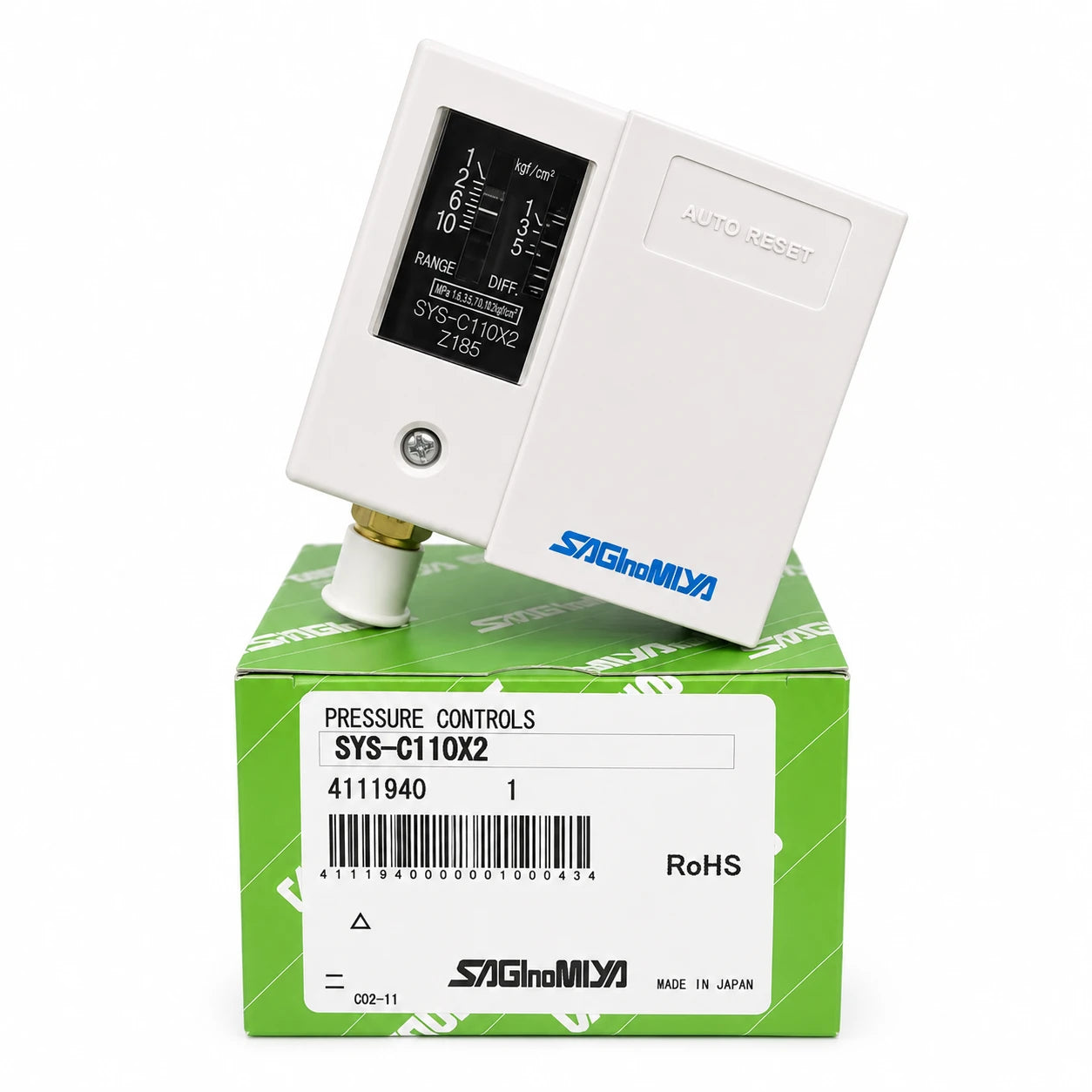

| SYS-C110X2 | R404A, R407C, R134a and R22; range 0.1 to 1 MPa (1 to 10 kgf/cm²); differential 0.1 to 0.3 MPa (1 to 3 kgf/cm²); factory settings 0.4 MPa (4 kgf/cm²) Off (On) and 0.6 MPa (6 kgf/cm²) On (Off); maximum working pressure 1.65 MPa (16.5 kgf/cm²) |

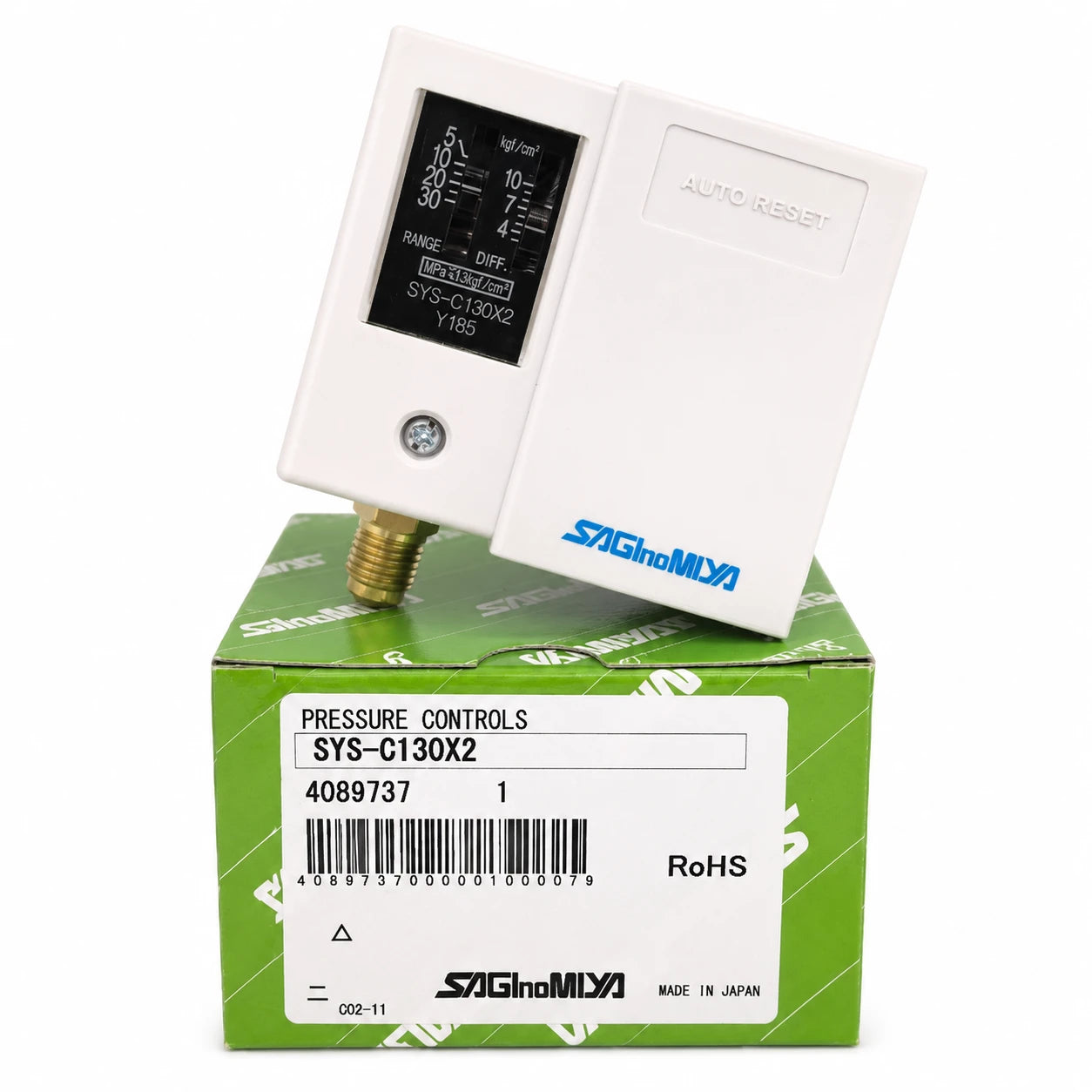

| SYS-C130X2 | R404A, R407C, R134a and R22; range 0.5 to 3 MPa (5 to 30 kgf/cm²); differential 0.3 to 1 MPa (3 to 10 kgf/cm²); factory settings 1.5 MPa (15 kgf/cm²) Off (On) and 2 MPa (20 kgf/cm²) On (Off); maximum working pressure 3.3 MPa (33 kgf/cm²) |

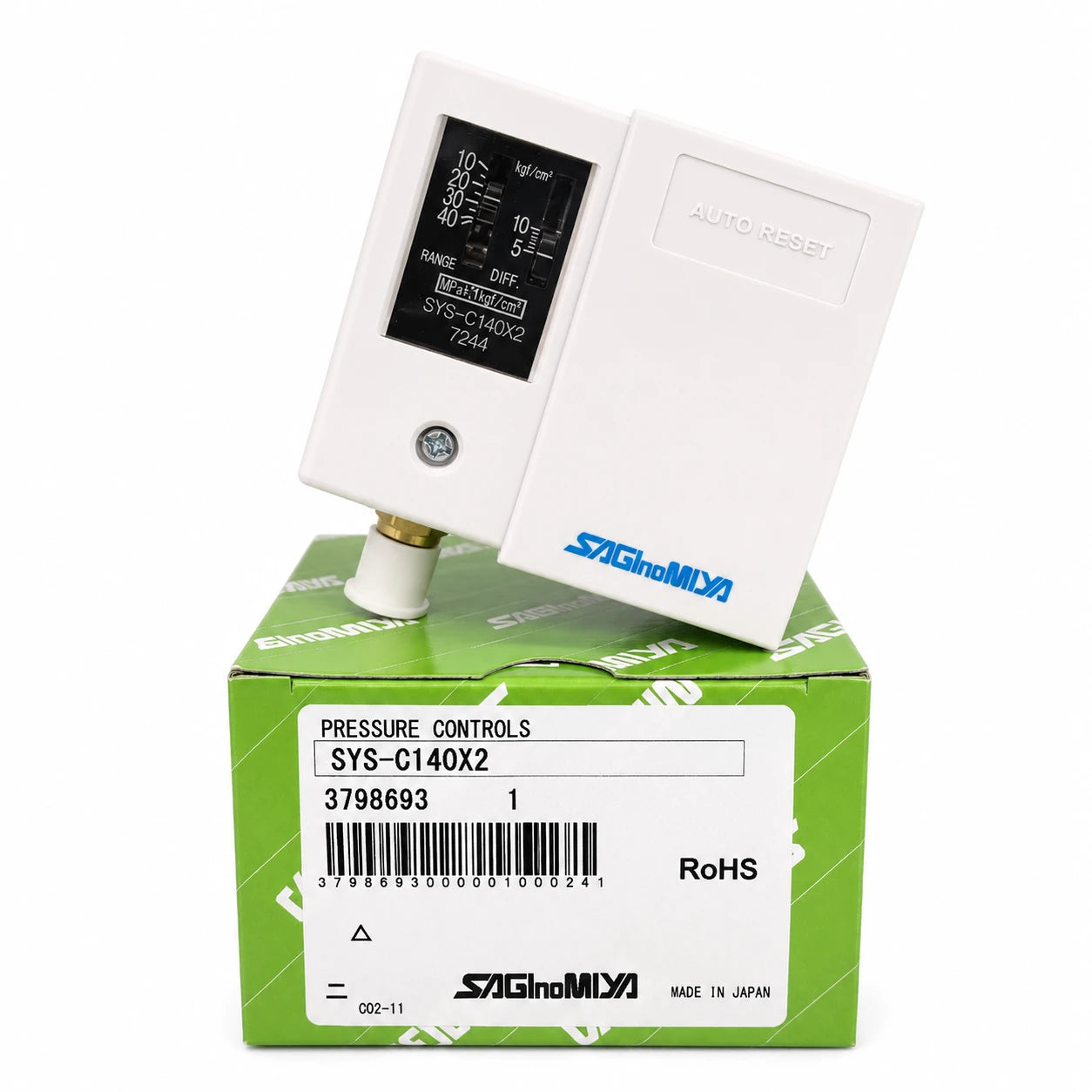

| SYS-C140X2 | Applicable to R410A; range 1 to 4.3 MPa (10 to 43 kgf/cm²); differential 0.5 to 1 MPa (5 to 10 kgf/cm²); factory settings 2 MPa (20 kgf/cm²) Off (On) and 2.5 MPa (25 kgf/cm²) On (Off); maximum working pressure 4.7 MPa (47 kgf/cm²) |
Refrigerant selection: SYS-C106X2, SYS-C110X2 and SYS-C130X2 are specified for R404A, R407C, R134a and R22. SYS-C140X2 is the listed R410A configuration. Models other than SYS-C140X2 should not be selected for R410A service.
Apexon Supply provides B2B sourcing, replacement sourcing and technical-alignment support for Saginomiya SYS Series pressure controls. Confirm the catalog number, refrigerant, pressure range, differential range, factory switching values and electrical requirements before replacement.
For an RFQ, submit SYS-C106X2, SYS-C110X2, SYS-C130X2 or SYS-C140X2 with the required quantity, refrigerant and operating-pressure details. Most qualified RFQs receive a response or quote within 12 hours.
