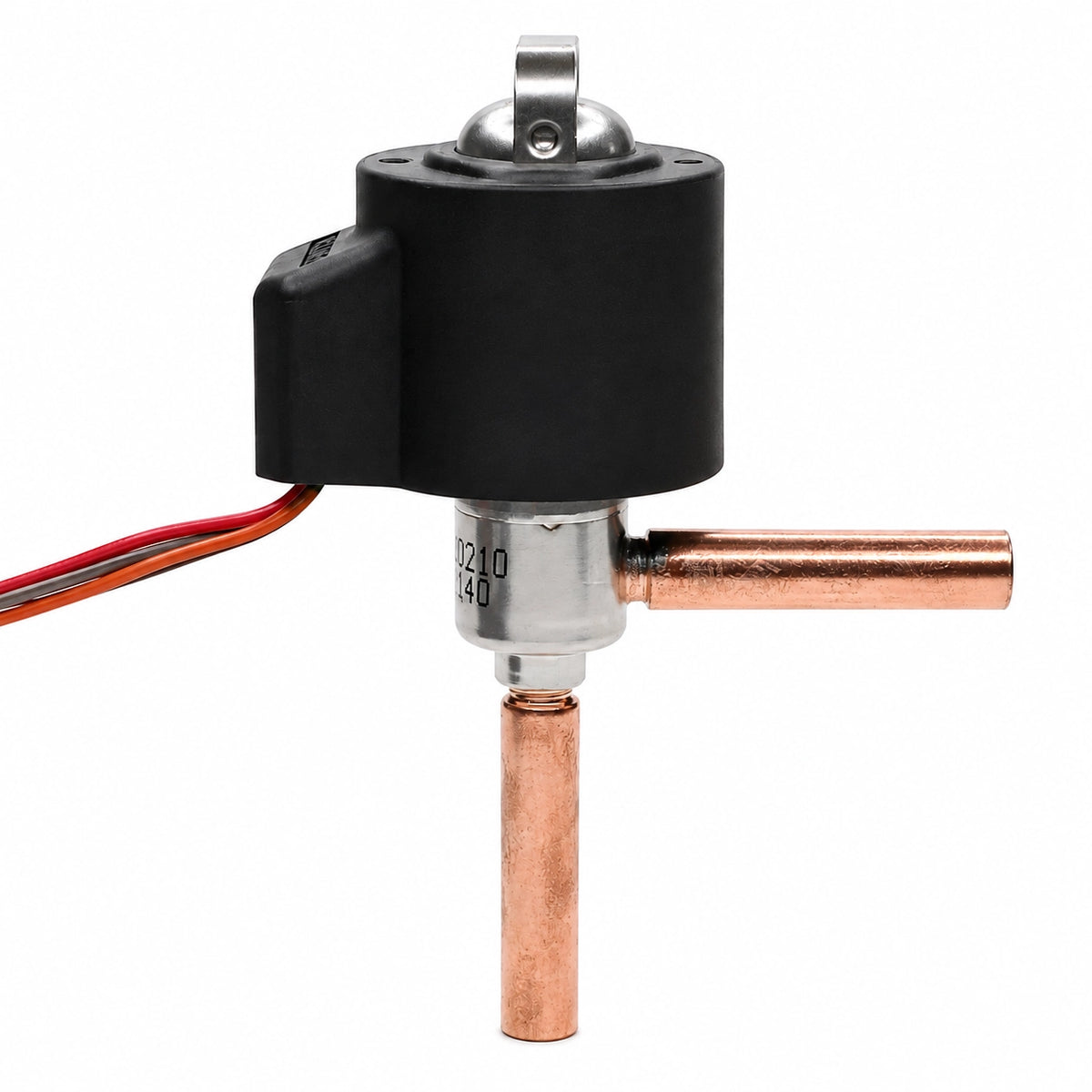

Saginomiya UKV-14D204 Electronic Expansion Valve, 1.4 mm Port, 2.1 m Coil
Regular price
$50.00 USD
Regular price
Sale price
$50.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Saginomiya UKV-14D204 is an electronic expansion valve with a 2.1 m coil lead. Its UKV-14D base model has a 1.4 mm port and an R410A capacity of 6.8 kW (1.9 USRT) under the stated capacity conditions.
| Model | UKV-14D204 |
| Base Model | UKV-14D |
| Port Diameter | 1.4 mm |
| Coil Lead Length | 2.1 m |
| R410A Capacity | 6.8 kW (1.9 USRT) |
| R134a Capacity | 4.5 kW (1.28 USRT) |
| R404A Capacity | 4.1 kW (1.2 USRT) |
| R407C Capacity | 5.9 kW (1.7 USRT) |
| R22 Capacity | 5.8 kW (1.6 USRT) |
| Operating Differential Pressure | 0–3.5 MPa (0–35 kgf/cm²) |
| A to B Reverse-Flow Reference | 2.0 MPa (20 kgf/cm²) |
| Rated Coil Voltage and Current | 12 VDC, 260 mA per phase |
| Capacity Basis | 38°C condensing temperature; 5°C evaporating temperature; 0°C subcooling; 0°C superheat |
Apexon Supply provides B2B sourcing and replacement support for Saginomiya UKV-14D204. Buyers should confirm the complete model code, connection option, coil lead length, wiring sequence, nameplate, and approved drawing before selection or installation.
Send UKV-14D204, the required quantity, and application requirements for procurement review and RFQ support.
