Schneider Electric A9F74432 Acti9 iC60N Miniature Circuit Breaker, 4P, 32 A, C Curve
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)

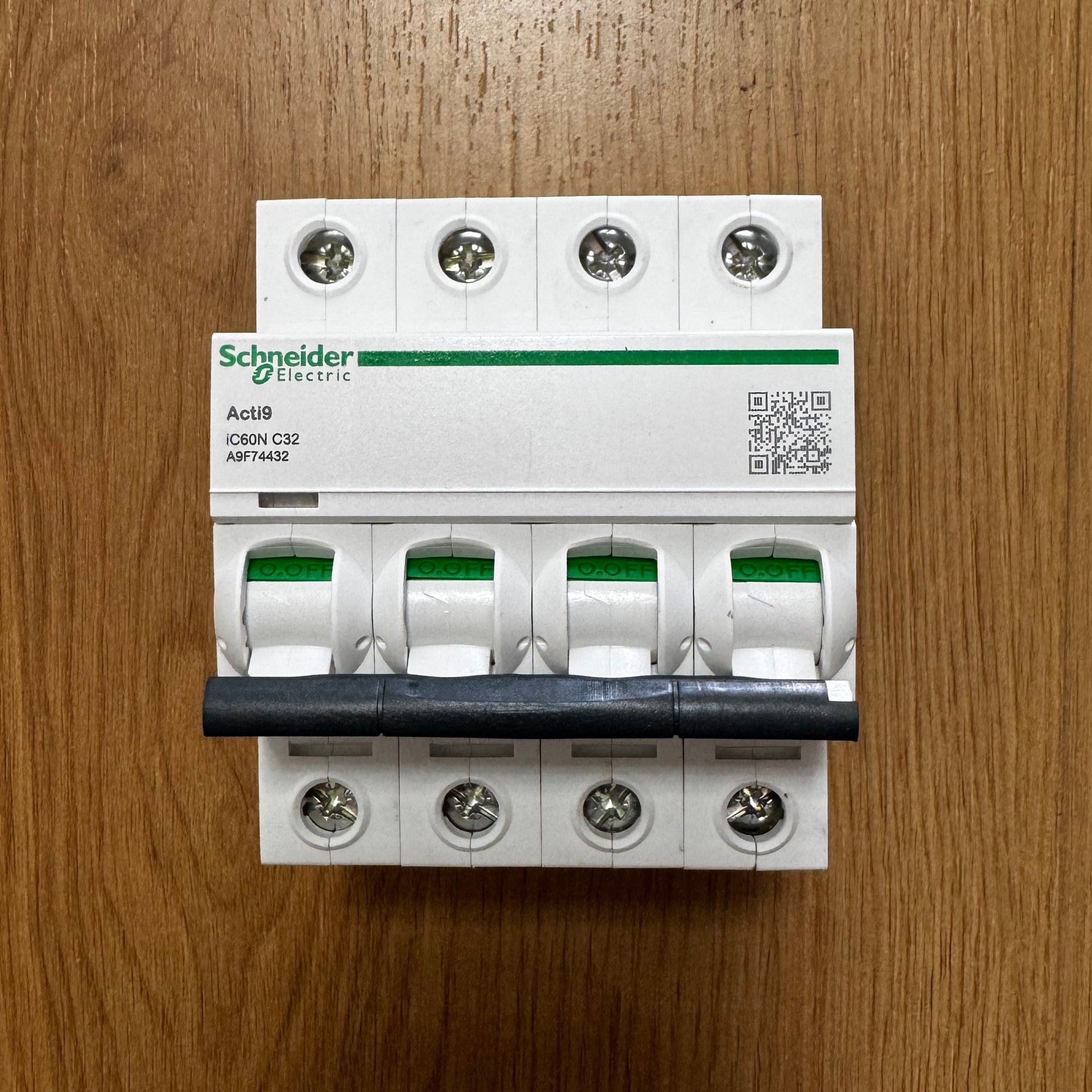

The Schneider Electric A9F74432 is an Acti9 iC60N miniature circuit breaker for electrical distribution applications. This thermal-magnetic breaker has four protected poles, a 32 A rated current and a C tripping curve.
| Product Reference | A9F74432 |
| Range | Acti9 |
| Product Name | Acti9 iC60 |
| Device Short Name | iC60N |
| Product Type | Miniature circuit breaker |
| Device Application | Distribution |
| Poles Description | 4P |
| Number of Protected Poles | 4 |
| Rated Current | 32 A |
| Network Type | AC and DC |
| Trip Unit Technology | Thermal-magnetic |
| Curve Code | C |
| Network Frequency | 50/60 Hz |
| Rated Operational Voltage | 12–133 V, 220–240 V, 380–415 V or 440 V AC; up to 250 V DC |
| Breaking Capacity | 6000 A Icn at 400 V AC, conforming to EN/IEC 60898-1 |
| Rated Impulse Withstand Voltage | 6 kV |
| Mounting Support | 35 mm DIN rail |
| Dimensions | 85 × 72 × 78.5 mm |
| Ambient Operating Temperature | -35 to 70 °C |
Typical applications include AC and DC electrical distribution systems requiring a four-pole miniature circuit breaker with a 32 A rating and C tripping curve.
Apexon Supply provides B2B sourcing and replacement support for Schneider Electric Acti9 circuit breakers. Buyers should verify the complete product reference, rated current, pole configuration, tripping curve, operational voltage and breaking capacity before replacement.
Submit Schneider Electric A9F74432, the required quantity and circuit requirements for procurement review and RFQ support. Most qualified RFQs receive a response or quote within 12 hours.
