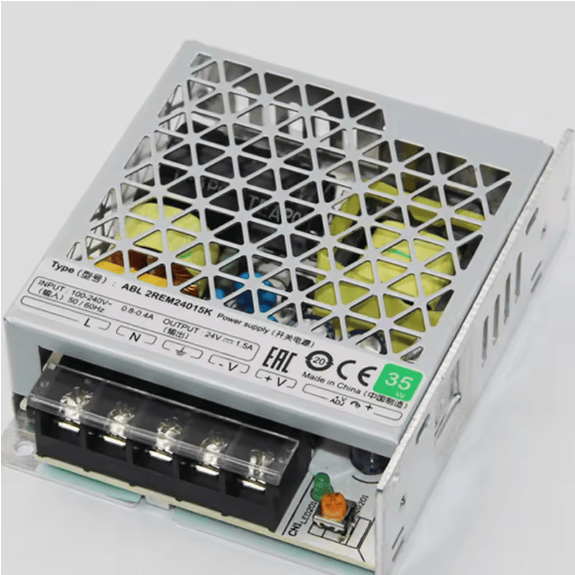

Schneider Electric ABL2REM24015K Easy Modicon Switch Mode Power Supply, 24 V DC 1.5 A 36 W, 100–240 V AC Input
Regular price
$30.00 USD
Regular price
Sale price
$30.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Schneider Electric ABL2REM24015K is an Easy Modicon ABL2 series regulated switch-mode power supply. Accepting a wide 85–264 V AC single-phase input, it delivers a stable 24 V DC output at 1.5 A (36 W) with high 87 % efficiency. Compact and DIN-rail mountable, it features integrated protections against overload, short circuit and over-voltage, making it ideal for industrial control panels and automation systems.
- Wide 100–240 V AC input, 85–264 V limits (47–63 Hz)
- Regulated 24 V DC output, 1.5 A (36 W)
- High efficiency – 87 %, low 5.4 W power dissipation
- Integrated fuse and full electronic protections
- Compact 99 × 82 × 30 mm housing, DIN-rail or panel mount
- Operating temperature −30…70 °C (derating above 55 °C)
- IP20 enclosure, CE & RoHS compliant
| Product ID (MPN) | ABL2REM24015K |
| Brand | Schneider Electric |
| Series / Range | Easy Modicon ABL2 |
| Product Type | Regulated switch-mode power supply |
| Rated Output Voltage | 24 V DC |
| Output Current | 1.5 A |
| Output Power | 36 W |
| Output Voltage Limits | 20.4…27.6 V |
| Line / Load Regulation | ±1 % |
| Input Voltage Range | 100…240 V AC (85…264 V limits) |
| Network Frequency | 47…63 Hz |
| Inrush Current | 45 A @ 100–240 V AC |
| Power Factor (Cos φ) | 0.45 |
| Efficiency | 87 % |
| Power Dissipation | 5.4 W |
| Holding Time | ≥ 12 ms @ 115 V AC |
| Protections (Output) | Overload / Short-circuit 1.1–1.5 × In; Over-voltage 28.8–33.6 V |
| Input Protection | Integrated non-replaceable fuse |
| MTBF | 600 000 h @ 25 °C |
| Status Indicator | Green LED (output OK) |
| Operating Position | Any |
| Mounting Support | DIN rail or panel (accessory) |
| Vibration Resistance | 4 gn (10–500 Hz) IEC 61131-2 |
| Dielectric Strength | 2000 V (input-to-ground) |
| Operating Altitude | Up to 5000 m |
| IP Rating | IP20 (IEC 62368-1) |
| Operating Temperature | −30…70 °C (derate 2.5 % / °C >55 °C) |
| Storage Temperature | −40…85 °C |
| Relative Humidity | 10…95 % |
| Width | 99 mm |
| Height | 82 mm |
| Depth | 30 mm |
| Net Weight | 0.23 kg |
| Certifications | CE, RoHS, EAC, IC, KC, RCM |
| Standards & EMC | EN 55022 Class B, IEC 61000-6-2 Level A |
| Pollution Degree | 2 |
| Overvoltage Category | II (general), Class I per IEC 62368-1 |
| Warranty | 18 months |
