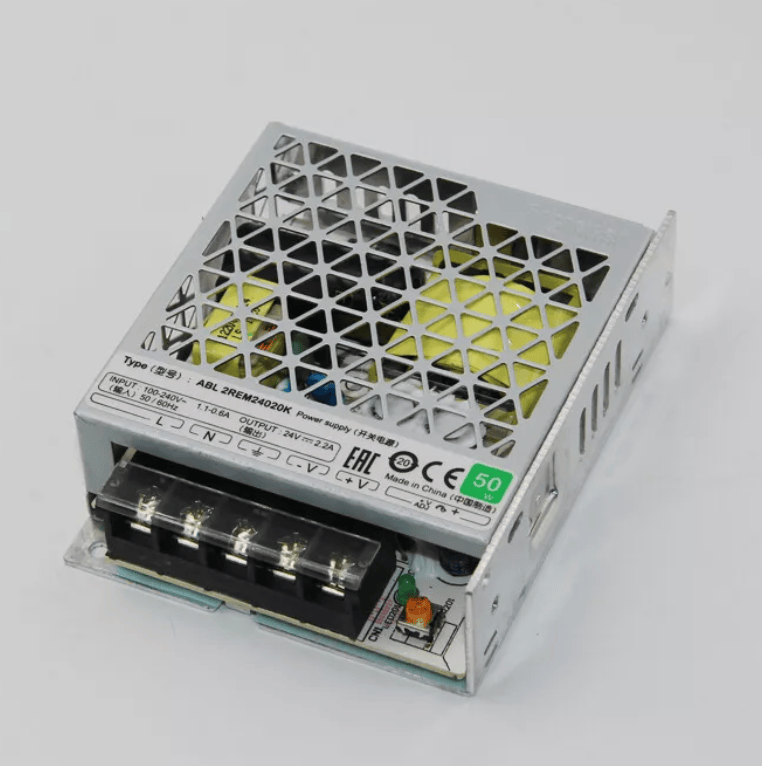

Schneider Electric ABL2REM24020K Easy Modicon Regulated Power Supply, 24 V DC 2.2 A, 100–240 V AC Input
Regular price
$30.00 USD
Regular price
Sale price
$30.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
Schneider Electric Easy Modicon ABL2REM24020K is a compact, single-phase regulated switch-mode power supply delivering 24 V DC at 2.2 A (53 W). Designed for universal 100…240 V AC inputs, it offers high efficiency, integrated protections, DIN-rail or panel mounting, and reliable performance from –30 °C to 70 °C.
- Universal 85…264 V AC input, 47…63 Hz
- 24 V DC regulated output, 2.2 A (53 W)
- High 87 % efficiency with low 7.9 W dissipation
- Integrated overload, short-circuit, and over-voltage protection
- DIN-rail or panel mounting, IP20 housing
- Wide operating temperature –30…70 °C, 4 g vibration resistance
| Product ID (MPN) | ABL2REM24020K |
| Brand | Schneider Electric |
| Range / Series | Easy Modicon ABL2 |
| Product Type | Regulated switch-mode power supply |
| Rated Power | 53 W |
| Input Voltage Range | 85…264 V AC (100…240 V AC nominal), single phase |
| Network Frequency | 47…63 Hz |
| Inrush Current | 45 A @ 100…240 V AC |
| Power Factor (Cos φ) | 0.45 |
| Efficiency | 87 % |
| Power Dissipation | 7.9 W |
| Output Voltage | 24 V DC (20.4…27.6 V limits) |
| Output Current | 2.2 A |
| Line & Load Regulation | ±1 % |
| Holding Time | ≥ 12 ms @ 115 V AC |
| Protections | Overload/short-circuit 1.1…1.5 × In; Over-voltage 28.8…33.6 V; Integrated non-replaceable fuse |
| Mounting Options | DIN rail or panel (accessories) |
| Operating Position | Any orientation |
| Vibration Resistance | 4 g (10–500 Hz) IEC 61131 |
