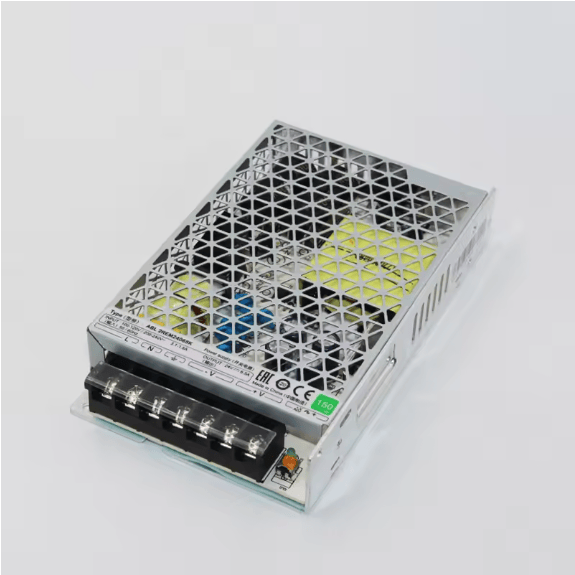

Schneider Electric ABL2REM24065K Easy Modicon Regulated Power Supply, 24 V DC 6.5 A, 100–240 V AC Input
Regular price
$30.00 USD
Regular price
Sale price
$30.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
Schneider Electric Easy Modicon ABL2REM24065K is a high-power, single-phase regulated switch-mode power supply that delivers 24 V DC at 6.5 A (156 W). Accepting universal 100…240 V AC inputs, it combines 89 % efficiency with robust protection features, DIN-rail or panel mounting flexibility, and dependable operation from –30 °C to 70 °C.
- Universal 88…264 V AC input, 47…63 Hz
- 24 V DC regulated output, 6.5 A (156 W)
- High 89 % efficiency; low 19.3 W heat loss
- Integrated overload, short-circuit, over-voltage & thermal protection
- DIN-rail or panel mounting, IP20 metal housing
- Wide operating range –30…70 °C, 4 g vibration resistant
| Product ID (MPN) | ABL2REM24065K |
| Brand | Schneider Electric |
| Range / Series | Easy Modicon ABL2 |
| Product Type | Regulated switch-mode power supply |
| Rated Power | 156 W |
| Input Voltage Range | 88…132 V AC / 176…264 V AC (100…120 V & 200…240 V nominal) |
| Network Frequency | 47…63 Hz |
| Inrush Current | 60 A @ 100…120 V AC / 60 A @ 200…240 V AC |
| Power Factor (Cos φ) | 0.45 |
| Efficiency | 89 % |
| Power Dissipation | 19.3 W |
| Output Voltage | 24 V DC (20.4…27.6 V limits) |
| Output Current | 6.5 A |
| Line & Load Regulation | ±1 % |
| Holding Time | ≥ 35 ms @ 115 V AC |
| Protections | Overload / Short-circuit 1.1…1.5 × In; Over-voltage 28.8…33.6 V; Thermal; Integrated non-replaceable fuse |
| Mounting Options | DIN rail or panel (accessories) |
| Operating Position | Any orientation |
| Vibration Resistance | 4 g (10–500 Hz) IEC 61131-2 |
| MTBF | 600 000 h @ 25 °C |
| Status Indicator | Green LED for output voltage |
| Dimensions (W × H × D) | 159 mm × 97 mm × 30 mm |
| Net Weight | 0.44 kg |
| IP Rating | IP20 (IEC 62368-1) |
| Operating Temperature | –30…70 °C (derate 2 %/°C above 55 °C) |
| Storage Temperature | –40…85 °C |
| Relative Humidity | 10…95 % (non-condensing) |
| Altitude (operating) | Up to 5 000 m |
| Certifications | CE, EAC, IC, RoHS, KC, RCM |
| Warranty | 18 months |
