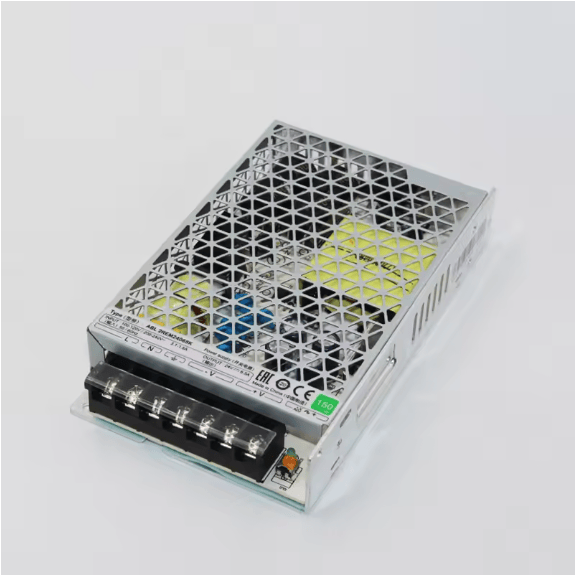

Schneider Electric ABL2REM24045K Easy Modicon Single Phase Power Supply, 24 V DC 4.5 A
Regular price
$60.00 USD
Regular price
Sale price
$60.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
Schneider Electric ABL2REM24045K is a compact, single-phase regulated switch-mode power supply from the Easy Modicon ABL2 range. Delivering a stable 24 V DC at up to 4.5 A (108 W), it features wide 100…240 V AC input, 89 % efficiency, integrated protections and DIN-rail mounting, making it ideal for industrial automation and control panels.
- Input: 100…240 V AC (85…264 V limits), 47…63 Hz
- Output: 24 V DC / 4.5 A / 108 W, ±1 % regulation
- High efficiency 89 % with low 13.3 W dissipation
- Integrated fuse, overload, short-circuit & over-voltage protection
- Wide −30…70 °C operating range, 5000 m altitude
- Compact 129 × 97 × 30 mm, IP20, DIN-rail mount
| Product ID | ABL2REM24045K |
| Brand | Schneider Electric |
| Range / Series | Easy Modicon ABL2 |
| Product Type | Regulated switch-mode power supply (single phase) |
| Rated Power | 108 W |
| Input Voltage | 100…240 V AC (limits 85…264 V) |
| Network Frequency | 47…63 Hz |
| Inrush Current | 50 A @ 100…240 V AC |
| Cos φ | 0.45 |
| Efficiency | 89 % |
| Power Dissipation | 13.3 W |
| Output Voltage | 24 V DC (limits 20.4…27.6 V) |
| Output Current | 4.5 A |
| Line & Load Regulation | ±1 % |
| Holding Time | ≥ 10 ms @ 115 V |
| Input Protection | Integrated fuse (non-replaceable) |
| Output Protections | Overload & short-circuit (1.1…1.5 × In); over-voltage 28.8…33.6 V |
| Mounting | DIN rail (accessory) |
| Operating Position | Any |
| Connections | Screw terminals, 1 × 4 mm² (AWG 12) ground |
| Status Indicator | 1 × green LED (output OK) |
| Vibration Resistance | 4 g (10–500 Hz) IEC 61131-2 |
| MTBF | 600 000 h @ 25 °C |
| IP Rating | IP20 (IEC 62368-1) |
| Operating Temperature | −30…70 °C (derate 2.5 % / °C) |
| Storage Temperature | −40…85 °C |
| Relative Humidity | 10…95 % |
| Operating Altitude | ≤ 5000 m |
| Dielectric Strength | 2000 V (input-ground) |
| Overvoltage Category | II |
| Pollution Degree | 2 |
| Dimensions (W × H × D) | 129 × 97 × 30 mm |
| Net Weight | 0.35 kg |
| Certifications / Markings | CE, EAC, IC, RoHS, KC, RCM |
| Warranty | 18 months |
| Package (PCE) L × W × H | 14.3 × 10.4 × 3.8 cm, 348 g |
