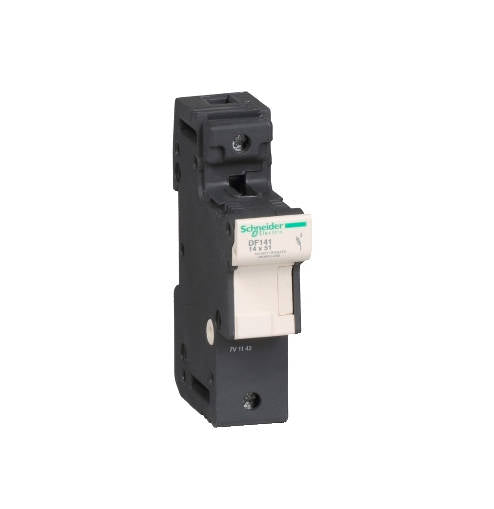

Schneider Electric DF141 TeSys DF Fuse Carrier, 1 P, 50 A, 690 V AC - Pack of 10
Regular price
$200.00 USD
Regular price
Sale price
$200.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
Schneider Electric DF141 is a single-pole fuse carrier from the TeSys DF family. Designed for 14 × 51 mm fuse cartridges, it accommodates gG or aM links up to 50 A and is rated for circuits up to 690 V AC/DC. The toggle-actuated device mounts on standard 35 mm DIN rail and offers high short-circuit withstand capability for demanding industrial and commercial applications. Supplied here in a bulk pack of 10 units.
- Accepts 14 × 51 mm fuse cartridges (gG / aM up to 50 A)
- Rated 690 V AC / 690 V DC, 50 A
- High breaking capacity: up to 120 kA at 400–500 V, 80 kA at 690 V
- Toggle control, DIN-rail mounting, IP20 touch protection
- Complies with IEC 60947-3, IEC 60269-2, UL 4248-1, CSA
- RoHS compliant, PVC-free, 18-month warranty
| Product ID | DF141 |
| Brand | Schneider Electric |
| Range | TeSys |
| Series / Family | TeSys DF |
| Product type | Fuse carrier |
| Device short name | DF14 |
| Poles | 1 P |
| Control type | Toggle |
| Rated operational voltage (Ue) | 690 V AC / 690 V DC |
| Rated operational current (Ie) | 50 A |
| Rated insulation voltage (Ui) | 690 V AC |
| Rated impulse withstand voltage (Uimp) | 8 kV |
| Fuse size | 14 × 51 mm |
| Compatible fuse cartridges | DF2EA, DF2EN |
| Short-circuit withstand | 120 kA @ 400 V / 500 V, 80 kA @ 690 V |
| Peak withstand current (Ipk) | 15 kA (with IEC 60269-1 links) |
| Mounting support | 35 mm DIN rail |
| Mounting position | Vertical (±23°) |
| Terminal type / capacity | Screw clamp 1× 2.5-25 mm² rigid / 2× 2.5-10 mm² rigid or flexible |
| Tightening torque | 3.5 N·m |
| IP rating | IP20 |
| Ambient temperature (operation) | -20 … +60 °C (derating > 20 °C) |
| Ambient temperature (storage) | -40 … +80 °C |
| Protective treatment | TH |
| Fire resistance | 960 °C (IEC 60695-2-1) |
| Dimensions (H × W × D) | 110.8 mm × 26.5 mm × 76.5 mm |
| Net weight (1 pc) | 0.140 kg |
| Package 1 dimensions (H × W × L) | 11.1 cm × 2.65 cm × 7.7 cm |
| Package 1 weight | 116 g |
| Standards | EN/IEC 60947-3, EN/IEC 60269-2, UL 4248-1, CSA C22.2 No 4248-1 |
| Certifications | IEC, UL Recognized, CSA, EAC |
| Quantity per factory set | 6 pcs |
| Sales pack supplied | 10 pcs |
| Warranty | 18 months |
| EU RoHS | Compliant |
| PVC-free | Yes |
