Schneider Electric DF221 TeSys DF Fuse Carrier, 1 P, 125 A, 690 V AC - Pack of 10
Regular price
$250.00 USD
Regular price
Sale price
$250.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)

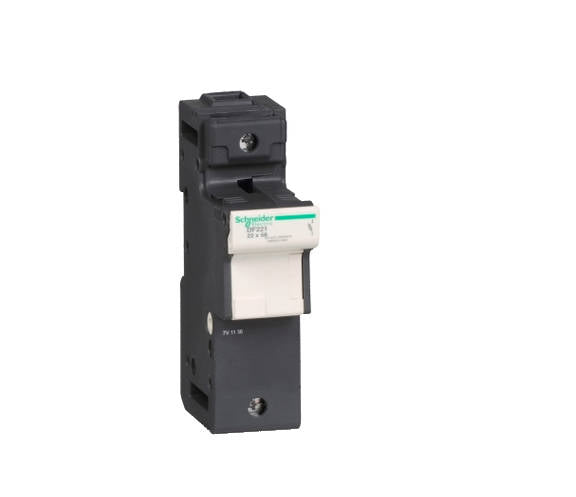

Schneider Electric DF221 is a single-pole fuse carrier from the TeSys DF series, designed for 22 × 58 mm gG or aM fuse links up to 125 A. Rated 690 V AC/DC, it offers high short-circuit withstand capacity and reliable isolation for heavy-duty industrial circuits. The toggle-actuated device mounts on a 35 mm DIN rail and provides IP20 touch protection. Supplied here in a bulk pack of 10 units.
- Accepts 22 × 58 mm cartridges (gG 0–100 A / aM 0–125 A)
- Rated 690 V AC/DC, 125 A
- Breaking capacity: 120 kA @ 400–500 V, 80 kA @ 690 V
- Toggle control, DIN-rail mounting, IP20 protection
- Complies with IEC 60947-3, IEC 60269-2, UL 4248-1, CSA
- RoHS compliant, recycled-cardboard packaging, 18-month warranty
| Product ID | DF221 |
| Brand | Schneider Electric |
| Range | TeSys |
| Series / Family | TeSys DF |
| Product type | Fuse carrier |
| Device short name | DF22 |
| Poles | 1 P |
| Control type | Toggle |
| Rated operational voltage (Ue) | 690 V AC / 690 V DC |
| Rated operational current (Ie) | 125 A |
| Rated insulation voltage (Ui) | 690 V AC |
| Rated impulse withstand voltage (Uimp) | 8 kV |
| Fuse size | 22 × 58 mm |
| Compatible fuse cartridges | DF2FA, DF2FN |
| Short-circuit withstand | 120 kA @ 400 V / 500 V, 80 kA @ 690 V |
| Peak withstand current (Ipk) | 19 kA (IEC 60269-1 links) |
| Mounting support | 35 mm DIN rail |
| Mounting position | Vertical (±23°) |
| Terminal capacity | 1 × 2.5–35 mm² rigid / 2 × 2.5–25 mm² rigid or flexible |
| Tightening torque | 4 N·m |
| IP rating | IP20 |
| Ambient temperature (operation) | -20 … +60 °C (derating > 20 °C) |
| Ambient temperature (storage) | -40 … +80 °C |
| Protective treatment | TH |
| Fire resistance | 960 °C (IEC 60695-2-1) |
| Dimensions (H × W × D) | 127.5 mm × 35 mm × 76.5 mm |
| Net weight (1 pc) | 0.218 kg |
| Package 1 dimensions (H × W × L) | 12.75 cm × 3.5 cm × 7.7 cm |
| Package 1 weight | 182 g |
| Standards | EN/IEC 60947-3, EN/IEC 60269-2, UL 4248-1, CSA C22.2 No 4248-1 |
| Certifications | IEC, UL Recognized, CSA, EAC |
| Quantity per factory set | 6 pcs |
| Sales pack supplied | 10 pcs |
| Warranty | 18 months |
| EU RoHS | Compliant |
