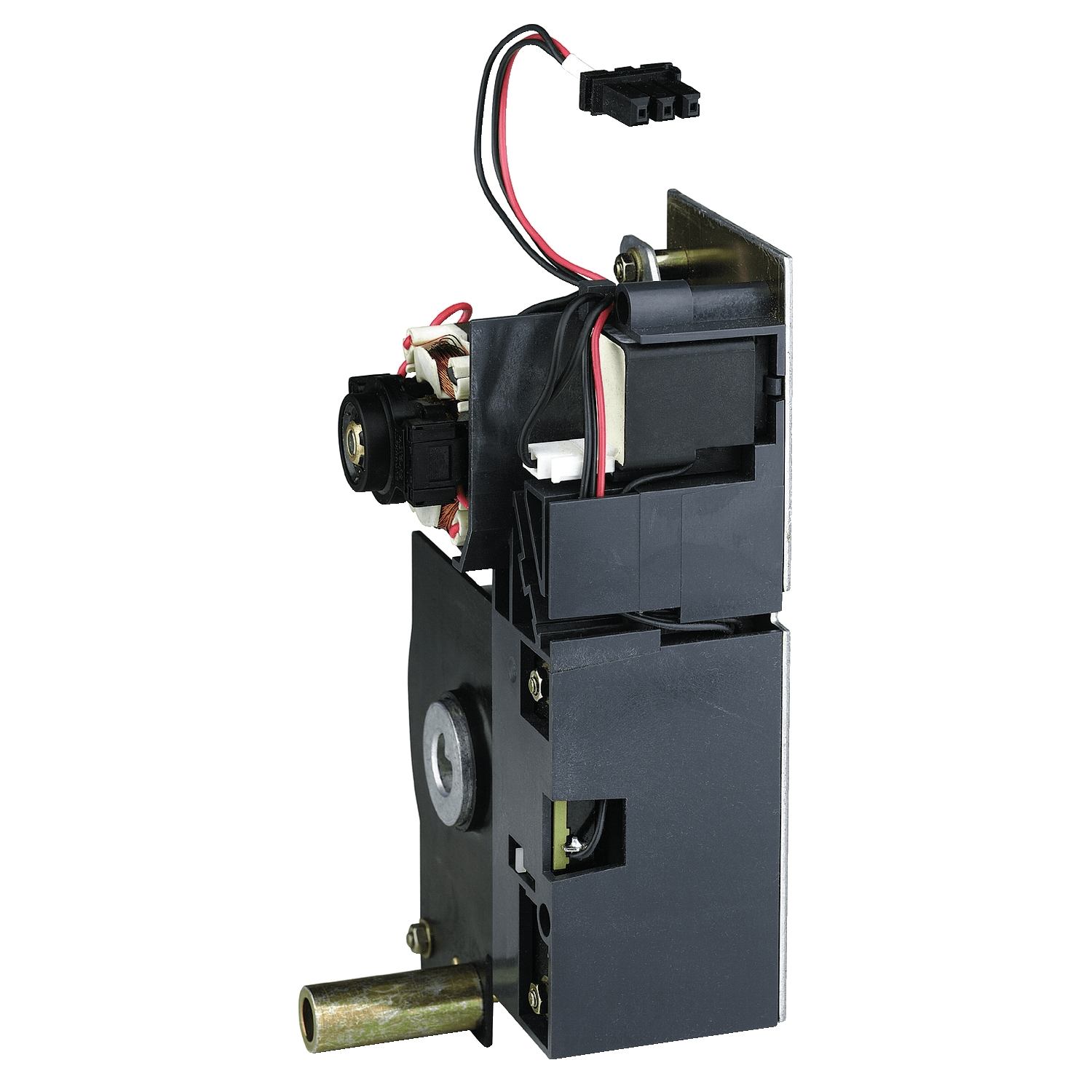

Schneider Electric 47894 MasterPact NW Motor Mechanism MCH, 200–240V AC, 180 VA, 4 s Charge Time
Regular price
$400.00 USD
Regular price
Sale price
$400.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
Overview
The Schneider Electric MasterPact NW motor mechanism (MCH, catalog no. 47894) is a gear motor for automatic spring charging of MasterPact NW and EasyPact MVS circuit breakers. It operates from a 200–240 V AC 50/60 Hz control supply and provides fast, reliable charging with up to three charge cycles per minute.
Key Features
- Device: Motor mechanism (gear motor) for automatic spring charging
- Compatibility: MasterPact NW circuit breakers; EasyPact MVS circuit breakers
- Control circuit voltage: 200/240 V AC, 50/60 Hz
- Maximum charging time: 4 s
- Maximum operating frequency: ≤ 3 cycles per minute
- Threshold tripping voltage: 0.85…1.1 Un
- Power consumption: 180 VA
Specifications
| Brand | Schneider Electric |
| Series / Range | MasterPact NW / EasyPact MVS |
| Catalog Number (MPN) | 47894 (MCH motor mechanism) |
| Application | Automatic spring charging for circuit breakers |
| Control Circuit Voltage | 200/240 V AC, 50/60 Hz |
| Max. Charging Time | 4 s |
| Max. Operating Frequency | ≤ 3 cycles per minute |
| Threshold Tripping Voltage | 0.85…1.1 Un |
| Power Consumption | 180 VA |
| Accessory Category | Spare part for MasterPact NW |
