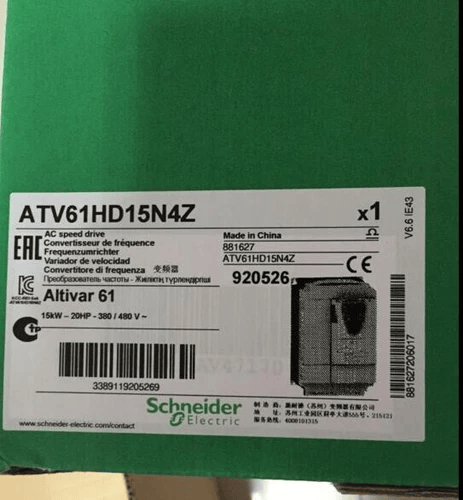

Schneider Electric ATV61HD15N4 Altivar 61 Variable Speed Drive, 20 HP, 380-480 V 3 Phase - Pack of 1
Regular price
$1,475.00 USD
Regular price
Sale price
$1,475.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
Overview
The Schneider Electric Altivar 61 ATV61HD15N4 is a discontinued variable speed drive designed for pumping and ventilation applications. It supports a 20 HP motor with a 380 to 480 V 3-phase power supply and comes with EMC IP20 protection.
Key Features
- Motor Power: 15 kW
- Maximum Horsepower: 20 HP
- EMC Filter: Level 3
- Communication Protocol: CANopen, Modbus
- Protection: IP20
Specifications
| Range of Product | Altivar 61 |
| Product Type | Variable speed drive |
| Application | Pumping and ventilation |
| Motor Power | 15 kW, 3 phase 380...480 V |
| Maximum Horsepower Rating | 20 HP |
| Power Supply Voltage | 380...480 V - 15...10 % |
| Supply Phases | 3 phase |
| Line Current | 39 A 480 V, 48 A 380 V |
| EMC Filter | Level 3 |
| Assembly Style | With heat sink |
| Apparent Power | 31.6 kVA 380 V |
| Maximum Prospective Line Isc | 22 kA 3 phase |
| Maximum Transient Current | 39.6 A 60 s |
| Nominal Switching Frequency | 12 kHz |
| Switching Frequency | 1...16 kHz adjustable |
| Asynchronous Motor Control | Voltage/frequency ratio, Flux vector control |
| Synchronous Motor Control Profile | Vector control without sensor |
| Communication Port Protocol | CANopen, Modbus |
| Power Supply Voltage Limits | 323…528 V |
| Power Supply Frequency | 50...60 Hz - 5...5 % |
| Power Supply Frequency Limits | 47.5...63 Hz |
| Continuous Output Current | 27 A 12 kHz, 460 V |
| Output Frequency | 0.1…599 Hz |
| Speed Range | 1…100 in open-loop mode |
| Speed Accuracy | +/- 10 % of nominal slip |
| Torque Accuracy | +/- 15 % in open-loop mode |
| Transient Overtorque | 130 % of nominal motor torque |
| Braking Torque | <= 125 % with braking resistor |
| Voltage Resolution | Analog input 0.024/50 Hz |
| Dielectric Strength | 3535 V DC between earth and power terminals |
| Noise Level | 60.2 dB |
