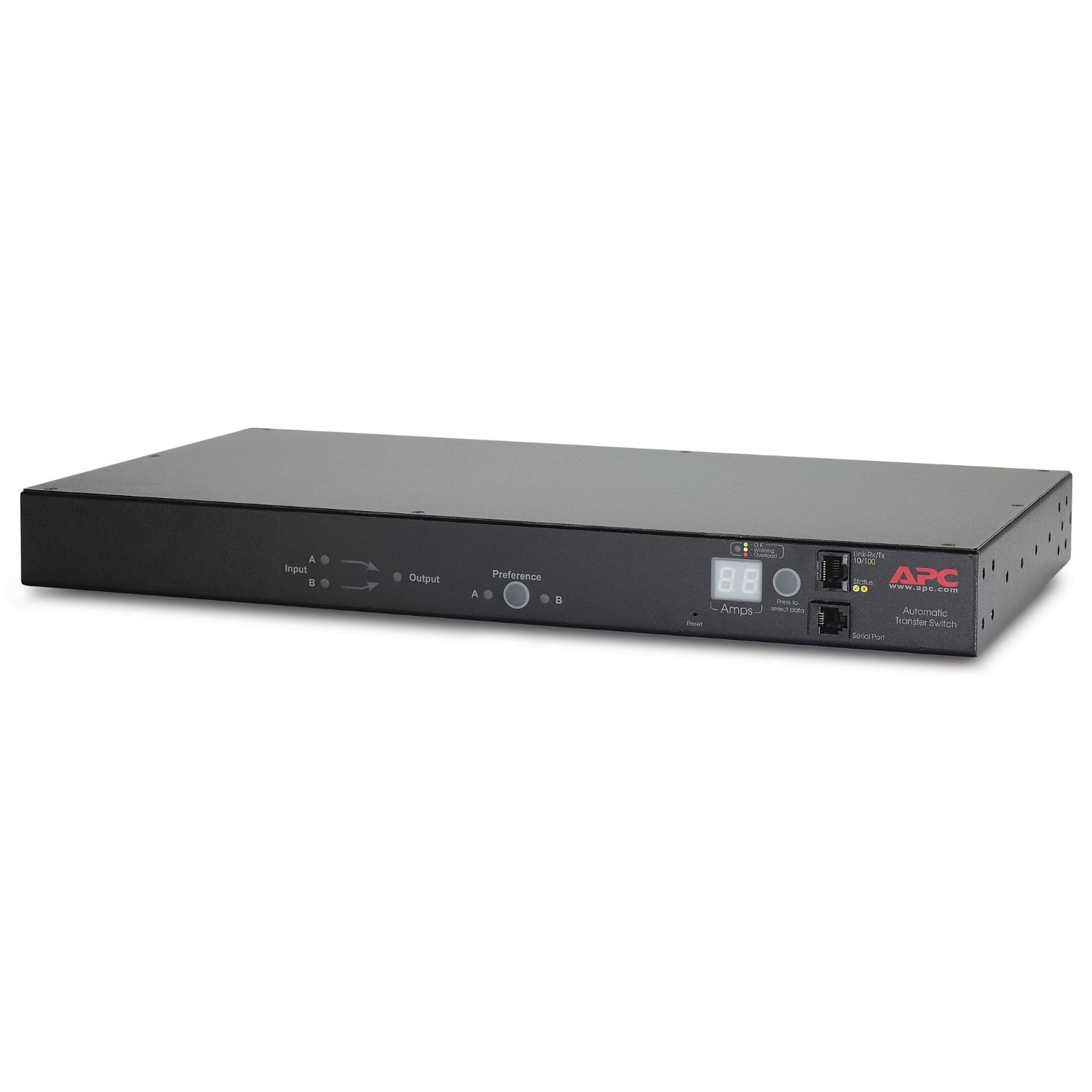

Schneider Electric AP7723 Rack Automatic Transfer Switch, 20 A, 1U
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
Schneider Electric AP7723 is a 1U rack-mounted automatic transfer switch for redundant power-path switching to single-corded IT equipment. It supports 200 V, 208 V, and 230 V input, provides a maximum line current of 20 A, and distributes power through eight IEC 60320 C13 outlets and one IEC 60320 C19 outlet. The AP7723 is identified as a discontinued legacy model.
| Brand | Schneider Electric |
| Manufacturer Part Number | AP7723 |
| GTIN | 731304255857 |
| Product Type | Rack automatic transfer switch |
| Lifecycle Status | Discontinued, legacy |
| Main Input Voltage | 200 V, 208 V, or 230 V |
| Output Voltage | 230 V |
| Input Connection | IEC 60320 C20 |
| Output Connections | 8 x IEC 60320 C13 and 1 x IEC 60320 C19 |
| Maximum Line Current | 20 A |
| Maximum Current Draw per Phase | 16 A |
| Input Frequency | 47–63 Hz |
| Form Factor | 1U rack-mounted |
| Circuit Breaker | Not integrated |
| Approvals and Compliance | cUL Listed, CE, UL Listed, EN 55022 Class A, FCC Part 15 Class A |
Typical applications: Enterprise data centers, network closets, server racks, and IT installations requiring redundant input power switching for single-corded equipment.
Apexon Supply provides B2B replacement sourcing and lifecycle support for Schneider Electric AP7723. Verify input voltage, current requirements, inlet type, outlet configuration, rack space, and upstream circuit protection before replacement.
Send the MPN, required quantity, input power configuration, and outlet requirements to request a B2B quote and technical alignment support.
