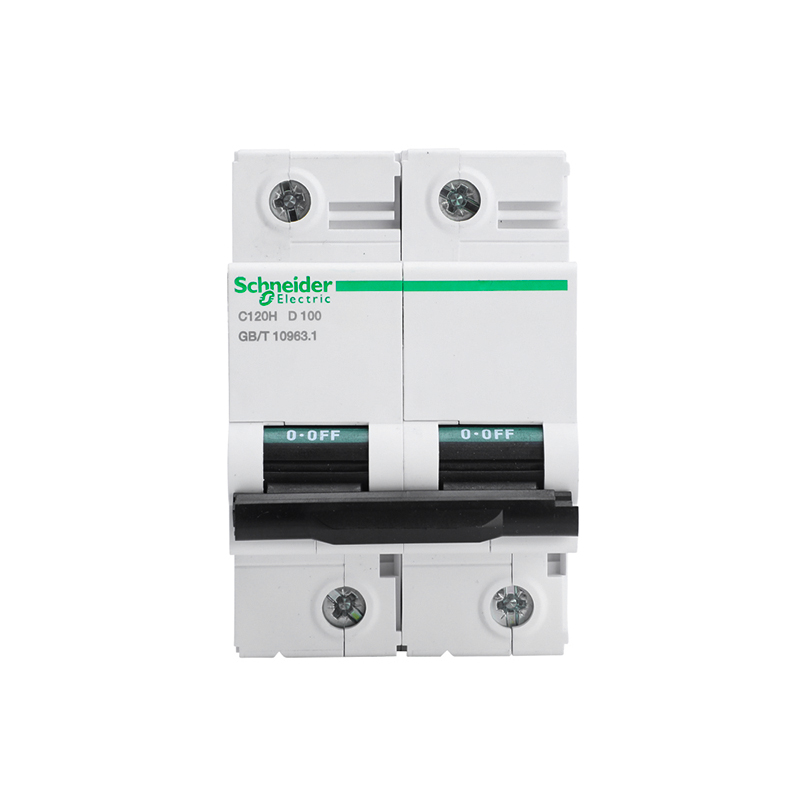

Schneider Electric Acti9 C120H MCB Series, 2P–4P, 63–125 A, C/D Curve
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Schneider Electric Acti9 C120H selection groups 24 thermal-magnetic miniature circuit breaker references with 2P, 3P and 4P configurations, rated currents from 63 A to 125 A, and C or D tripping curves. These variants provide a 15,000 A Icn breaking capacity at 230–400 V AC under IEC/EN 60898-1.
| Series | Acti9 C120H |
| Product Type | Thermal-magnetic miniature circuit breaker |
| Pole Options | 2P, 3P and 4P |
| Rated Current Options | 63 A, 80 A, 100 A and 125 A |
| Tripping Curve Options | C and D |
| Breaking Capacity | 15,000 A Icn at 230–400 V AC, IEC/EN 60898-1 |
| Industrial Breaking Capacity | 30 kA Icu at 220–240 V AC; 15 kA at 380–415 V AC; 10 kA at 440 V AC, IEC/EN 60947-2 |
| Rated Insulation Voltage | 500 V AC |
| Rated Impulse Withstand Voltage | 6 kV |
| Mounting Support | 35 mm DIN rail |
| A9N18456 | 2P, 63 A, C curve |
| A9N18457 | 2P, 80 A, C curve |
| A9N18458 | 2P, 100 A, C curve |
| A9N18459 | 2P, 125 A, C curve |
| A9N18467 | 3P, 63 A, C curve |
| A9N18468 | 3P, 80 A, C curve |
| A9N18469 | 3P, 100 A, C curve |
| A9N18470 | 3P, 125 A, C curve |
| A9N18478 | 4P, 63 A, C curve |
| A9N18479 | 4P, 80 A, C curve |
| A9N18480 | 4P, 100 A, C curve |
| A9N18481 | 4P, 125 A, C curve |
| A9N18500 | 2P, 63 A, D curve |
| A9N18501 | 2P, 80 A, D curve |
| A9N18502 | 2P, 100 A, D curve |
| A9N18503 | 2P, 125 A, D curve |
| A9N18511 | 3P, 63 A, D curve |
| A9N18512 | 3P, 80 A, D curve |
| A9N18513 | 3P, 100 A, D curve |
| A9N18514 | 3P, 125 A, D curve |
| A9N18522 | 4P, 63 A, D curve |
| A9N18523 | 4P, 80 A, D curve |
| A9N18524 | 4P, 100 A, D curve |
| A9N18525 | 4P, 125 A, D curve |
Typical applications include short-circuit and overload protection, circuit isolation and switching in low-voltage electrical distribution systems. Select the exact reference according to the required pole count, rated current and tripping curve.
Apexon Supply provides B2B sourcing and replacement support for Schneider Electric Acti9 C120H circuit breakers. Buyers should verify the complete product reference, pole configuration, current rating, curve code, operating voltage and breaking-capacity standard before procurement.
Submit the required A9N18456–A9N18481 C-curve reference or A9N18500–A9N18525 D-curve reference, quantity and circuit requirements for procurement review and RFQ support. Most qualified RFQs receive a response or quote within 12 hours.
