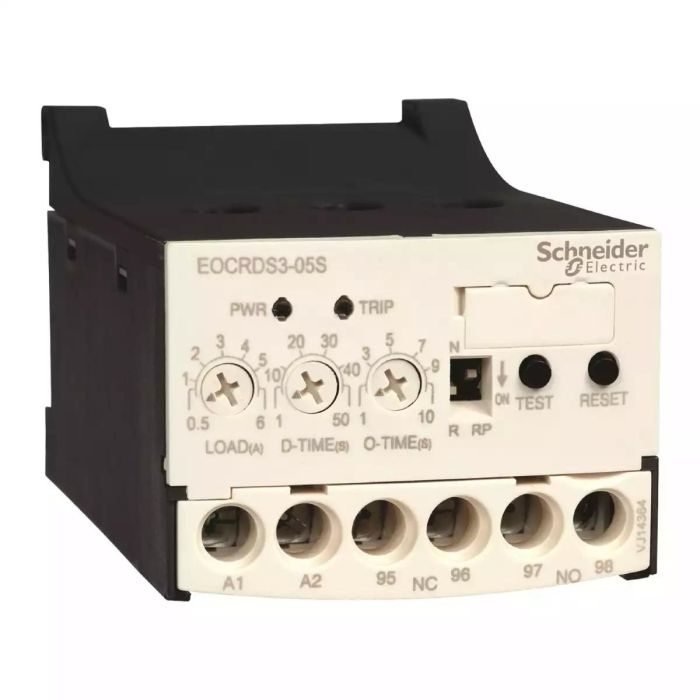

Schneider Electric EOCRDS3-05S / EOCRSS-05S EOCR Electronic Overcurrent Relay, 0.5...6 A, 220 V AC
Regular price
$100.00 USD
Regular price
Sale price
$100.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Schneider Electric EOCRDS3-05S is an advanced electronic overcurrent protection relay designed to safeguard industrial motors and critical electrical power circuits. Featuring a highly sensitive 0.5 to 6 A adjustment range and an integrated 7-segment LED display, this relay offers superior diagnostic visibility and precise control. With comprehensive onboard protections against overload, phase loss, phase reversal, and locked rotor conditions, it is engineered to ensure reliable operational uptime and extend equipment life in demanding B2B enterprise environments.
| Product ID (MPN) | EOCRDS3-05S |
| Secondary ID / Device Short Name | EOCRSS-05S |
| Protection Adjustment Range | 0.5...6 A |
| Rated Supply Voltage (Us) | 220 V AC (50...60 Hz) |
| Rated Operational Voltage (Ue) | Up to 690 V AC |
| Contacts Type & Composition | 1 NO + 1 NC (OL) |
| Protection Type | Overload, Phase Loss, Phase Reverse, Locked Rotor, Phase Unbalance (50%) |
| Display Type | 7 Segments LED |
| Time Delay Type | O-Time: 0.3, 1...30 s (definite); D-Time: 1...120 s (definite) |
| Reset Configuration | Manual reset / Electrical (0...1 s by interruption of power supply) |
| Power Consumption | 3 W per relay |
| Mounting Support | 35 mm DIN rail / Panel mount |
| IP Degree of Protection | IP20 (conforming to IEC 60529) |
| Dimensions (H x W x D) | 71 mm x 70 mm x 68 mm |
