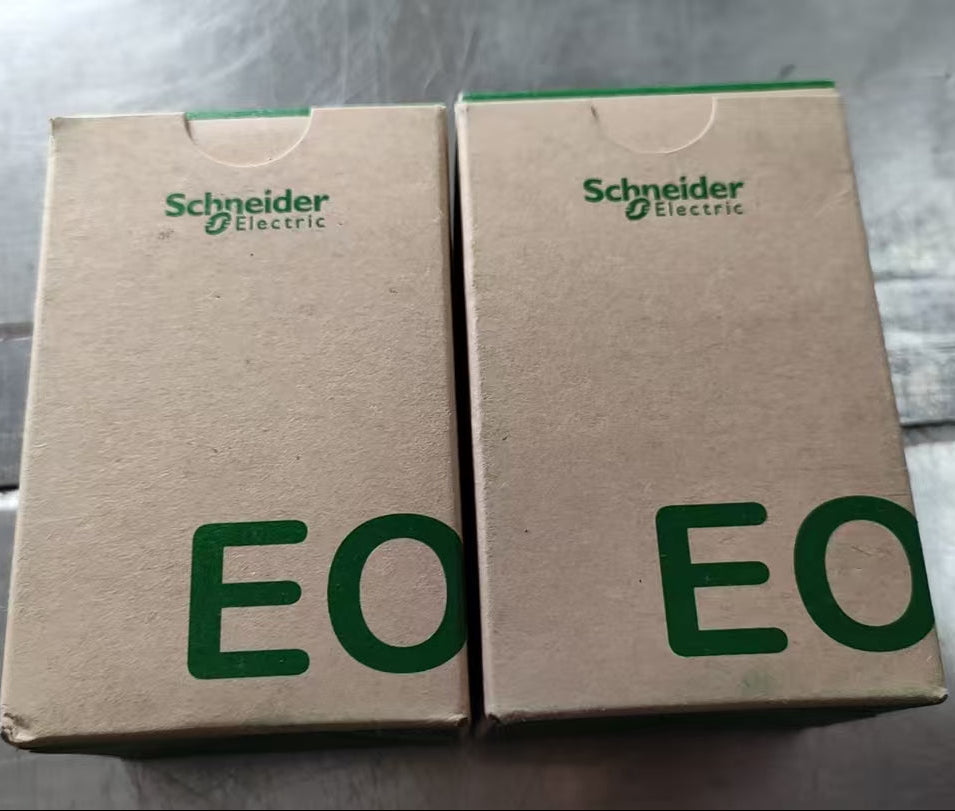

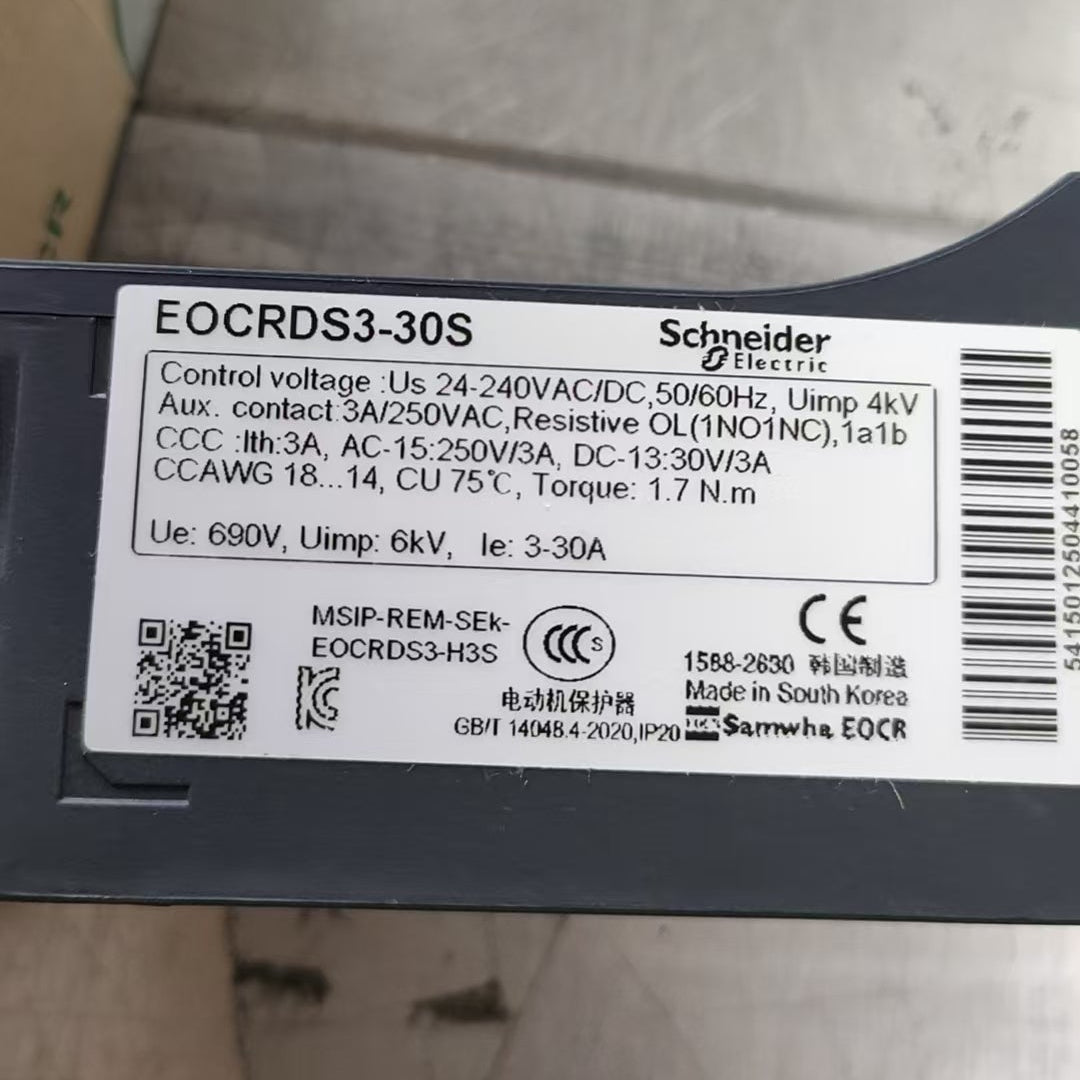

Schneider Electric EOCRDS3-30S / EOCRSS-30S EOCR Electronic Overcurrent Relay, 3...30 A, 220 V AC
Regular price
$100.00 USD
Regular price
Sale price
$100.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Schneider Electric EOCRDS3-30S is a class-leading electronic overcurrent protection relay engineered to safeguard industrial motors and critical electrical power circuits. Featuring a precise 3 to 30 A adjustment range, an integrated 7-segment LED display, and a 4-20 mA analog output, this relay delivers advanced monitoring and diagnostic capabilities. With robust built-in protections against overload, phase loss, phase reversal, and locked rotor conditions, it is an essential component for maximizing equipment lifecycle and ensuring reliable operational uptime in demanding enterprise environments.
| Product ID (MPN) | EOCRDS3-30S |
| Secondary ID / Device Short Name | EOCRSS-30S |
| Protection Adjustment Range | 3...30 A |
| Rated Supply Voltage (Us) | 220 V AC (50...60 Hz) |
| Rated Operational Voltage (Ue) | Up to 690 V AC |
| Contacts Type & Composition | 1 NO + 1 NC (OL) |
| Protection Type | Overload, Phase Loss, Phase Reverse, Locked Rotor, Phase Unbalance (50%) |
| Display Type | 7 Segments LED |
| Analogue Output Range | 4...20 mA |
| Time Delay Type | O-Time: 0.3, 1...30 s (definite); D-Time: 1...120 s (definite) |
| Reset Configuration | Manual reset / Electrical (0...1 s by interruption of power supply) |
| Power Consumption | 3 W per relay |
| Mounting Support | 35 mm DIN rail / Panel mount |
| IP Degree of Protection | IP20 (conforming to IEC 60529) |
| Dimensions (H x W x D) | 71 mm x 70 mm x 68 mm |
