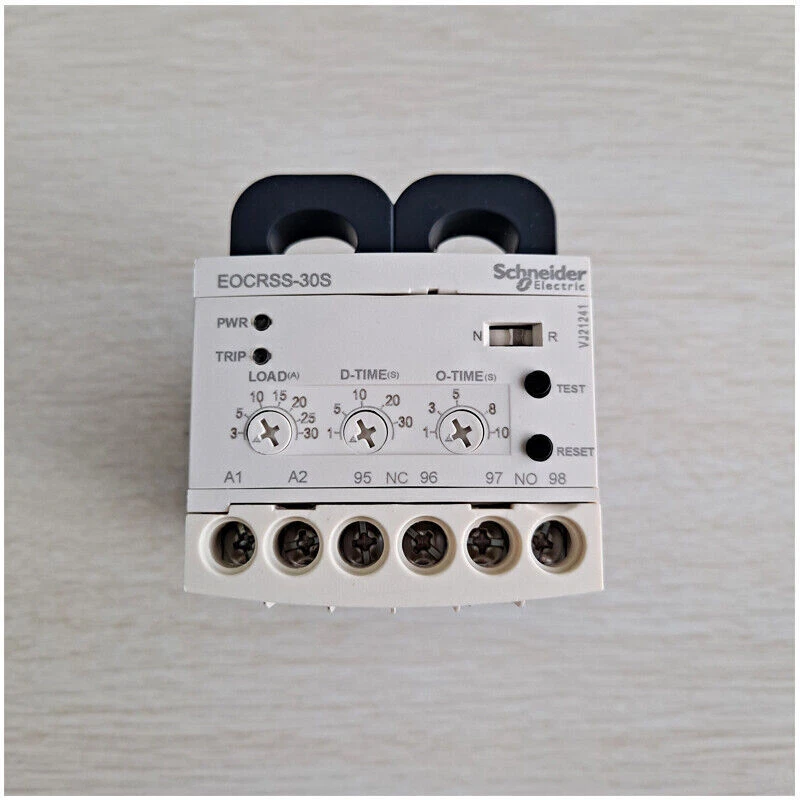

Schneider Electric EOCRSS-30S EOCR Series Electronic Overcurrent Relay, 3-30A, 220V AC
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
Schneider Electric EOCRSS-30S is an EOCR electronic overcurrent protection relay designed for industrial motor and electrical-system protection. It offers a 3–30 A adjustment range, a 220 V AC supply, a 4–20 mA analog output, and definite or inverse time-delay characteristics.
| Manufacturer | Schneider Electric |
| Manufacturer Part Number | EOCRSS-30S |
| Series | EOCR |
| Product Type | Electronic overcurrent protection relay |
| Protection Adjustment Range | 3–30 A |
| Rated Supply Voltage | 220 V AC, 50/60 Hz |
| Analog Output | 4–20 mA |
| Contact Configuration | 1 NO + 1 NC |
| Protection Functions | Overload, phase loss, phase reversal, locked rotor, and phase unbalance |
| Time-Delay Characteristics | Definite and inverse |
| Display Type | 7-segment LED |
| Reset Mode | Manual or electrical interruption, 0–1 s |
| Mounting Support | 35 mm DIN rail or panel mounting |
| Dimensions | 70 x 71 x 68 mm |
Typical applications: Industrial motor control centers, automation panels, machinery protection circuits, and electrical systems requiring adjustable overcurrent, phase-fault, and locked-rotor protection.
Apexon Supply provides B2B sourcing and replacement support for Schneider Electric EOCRSS-30S. Verify the 3–30 A adjustment range, 220 V AC supply, 4–20 mA output, contact configuration, protection functions, and mounting requirements before replacement.
Send the MPN, required quantity, motor ratings, and application requirements to request a B2B quote and technical alignment support.
