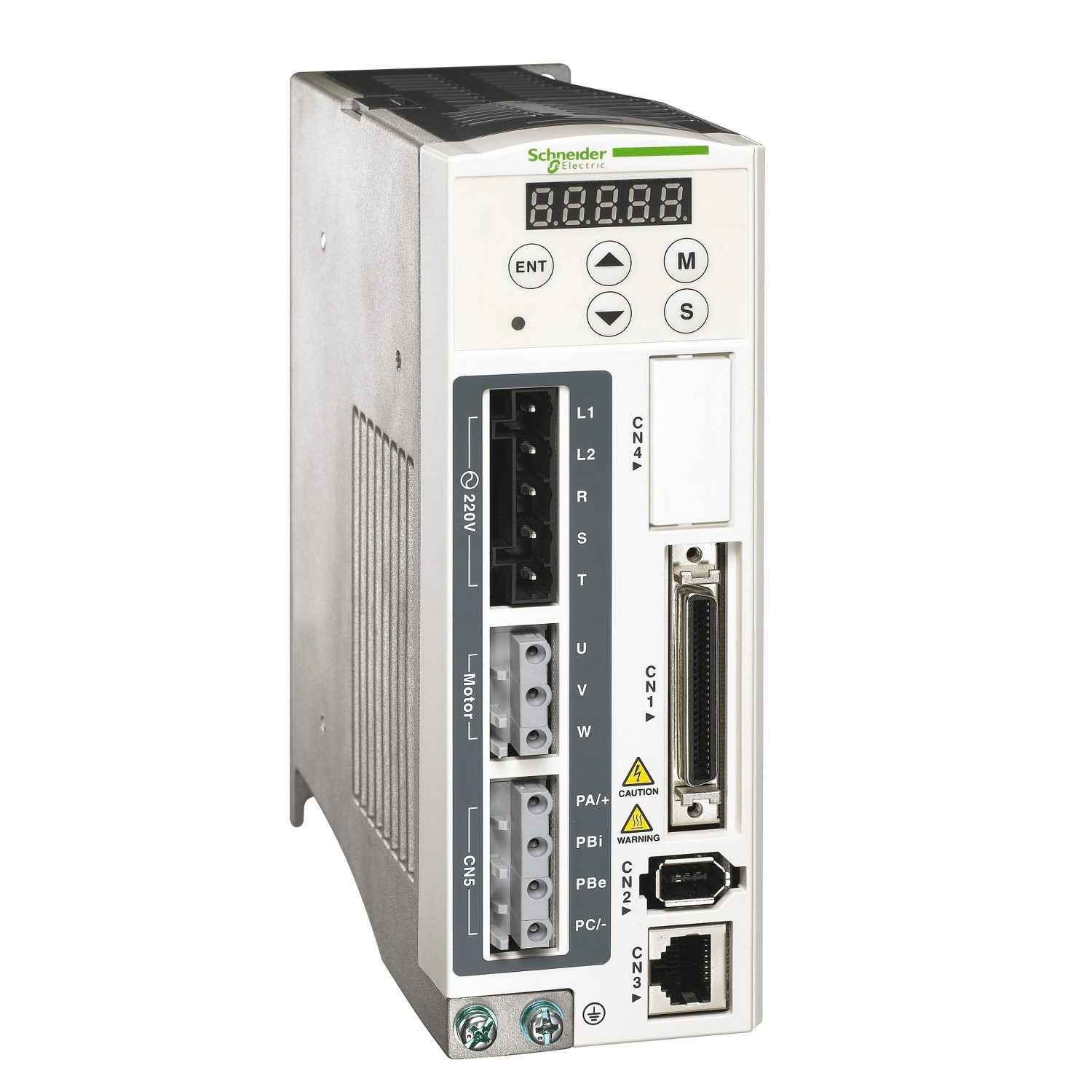

Schneider Electric LXM23DU10M3X Lexium 23 Motion Servo Drive — Single-Phase 200–255 VAC Supply, 1.0 kW Output, Integrated I/O — Compact Servo Drive
Regular price
$400.00 USD
Regular price
Sale price
$400.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
Overview: The Schneider Electric LXM23DU10M3X is a discontinued Lexium 23 Plus series motion servo drive designed for single-phase or three-phase power input. It delivers 1 kW of continuous power with a rated current of 7.3 A, featuring integrated Modbus communication and comprehensive motor protection functions. This drive is suitable for vertical mounting in industrial automation applications.
Key Features:
- Part of the Lexium 23 Plus servo drive family.
- Accepts both single-phase (200-255V) and three-phase (170-255V) supply.
- Integrated Modbus RS485 communication interface (slave).
- Equipped with 8 programmable discrete inputs and 5 logic outputs.
- Includes two high-precision analog inputs (±10V).
- Features a 5-digit, 7-segment display for status and fault codes.
- Offers protection against overcurrent, overvoltage, motor overload, and overheating.
- Cooling is provided by an integrated fan.
| Product ID / MPN | LXM23DU10M3X |
| Brand | Schneider Electric |
| Range / Series | Lexium 23 Plus |
| Product Type | Motion Servo Drive |
| Supply Voltage - Single Phase | 200...255 V (220 V rated, -10...+15%) |
| Supply Voltage - Three Phase | 170...255 V (220 V rated, -20...+15%) |
| Supply Frequency | 50/60 Hz (±5%) |
| Continuous Output Current | 7.3 A |
| Continuous / Nominal Power | 1000 W / 1 kW at 220 V |
| Discrete Inputs | 8 (Programmable, 12-24V DC) |
| Discrete Outputs | 5 (Logic, 12-24V DC) |
| Analog Inputs | 2 (±10V, 10 kOhm impedance, 0.01% accuracy) |
| Communication Interface | Modbus (RS485, 2-wire, Slave) |
| Protection Functions | Reverse Polarity, Short-Circuit, Over/Undervoltage, Overcurrent, Overload, Overspeed, Overheating |
| IP Rating (Upper Part) | IP20 (without cover) / IP41 (with cover) |
| Operating Temperature | 0...55 °C |
| Storage Temperature | -20...65 °C |
| Operating Altitude | ≤1000 m (no derating), >1000-2000 m (1% derating per 100m) |
| Dimensions (W x H x D) | 85 x 162 x 180 mm |
| Net Weight | 2.2 kg |
| Standards & Certifications | EN/IEC 61800-5-1, cULus 508, C-Tick, CE, EMC Level 3/4 |
| Warranty | 18 Months |
| Status | Discontinued (Service Only) |
