Schneider Electric TM2AMM3HT Analog I/O Module, 2x Multi-Function Inputs (0-10V, 4-20mA) & 1x Multi-Function Output (0-10V, 4-20mA), 12-bit, for Modicon M238 & Twido, 24VDC, Screw Terminal
Regular price
$400.00 USD
Regular price
Sale price
$400.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)

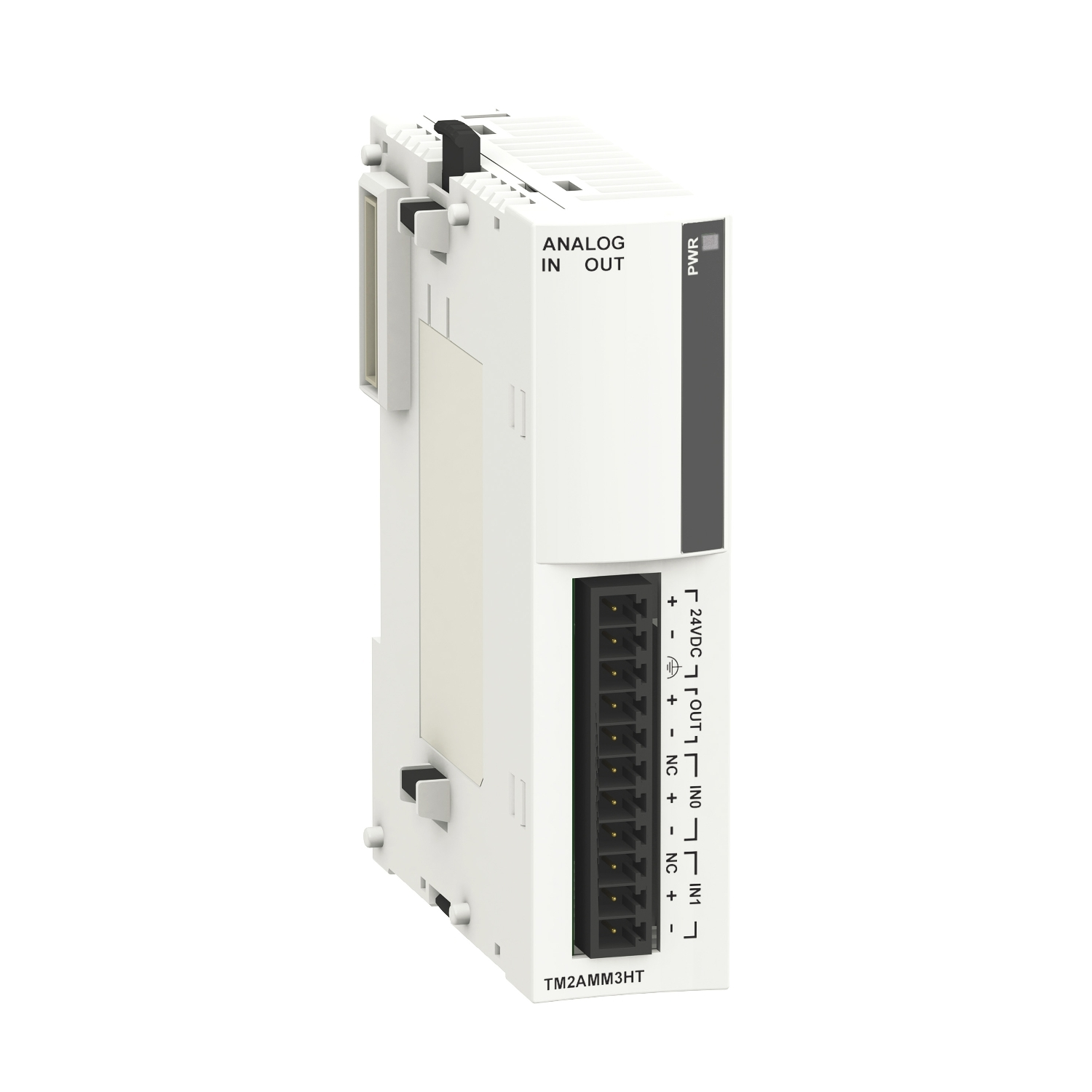

The Schneider Electric TM2AMM3HT is a compact mixed analog I/O module for Modicon M238, Twido, and Advantys OTB controllers. It features 2 high-level inputs (0-10 V / 4-20 mA) and 1 configurable output (0-10 V / 4-20 mA), all with 12-bit resolution. Designed for space-constrained applications, it offers high accuracy, photocoupler isolation, and a single terminal block for simplified wiring.
- Mixed Analog I/O Module: 2 Inputs & 1 Output
- Input Signals: 0...10 V or 4...20 mA, High Level, Non-Differential
- Output Signals: 0...10 V or 4...20 mA, Configurable
- High 12-bit Resolution on All Channels (2.5 mV / 4.8 μA LSB)
- High Accuracy: ±0.2% FS for Inputs at 25°C
- Photocoupler Isolation (500 V between all channels, supply, and logic)
- Ultra-Compact DIN Rail Mountable Design (23.5 mm wide)
- Compatible with Modicon M238, Twido, and Advantys OTB Systems
- Single Removable Screw Terminal Block for All Connections
| Product ID | TM2AMM3HT |
| EAN / GTIN | 3595863995992 |
| Brand | Schneider Electric |
| Range | Modicon M238 logic controller |
| Product Type | Input/Output Analog Module |
| Analog Input Number | 2 |
| Analog Input Type | Voltage 0...10 V, Current 4...20 mA, Non Differential, High Level |
| Analog Output Number | 1 |
| Analog Output Type | Current 4...20 mA, Voltage 0...10 V |
| Analog Input Resolution | 12 bits |
| Analog Output Resolution | 12 bits |
| LSB Value | 2.5 mV (Voltage), 4.8 μA (Current) |
| Input Impedance | ≥ 1 MΩ (Voltage), ≥ 10 Ω (Current) |
| Load Impedance | ≥ 2000 Ω (Voltage), ≤ 300 Ω (Current) |
| Acquisition Period | 60 ms per channel + 1 controller cycle time |
| Conversion Time | 20 ms + 1 controller cycle time |
| Measurement Error (Input) | ±0.2 %FS (0...10 V / 4...20 mA) at 25°C |
| Output Error | ±1 %FS |
| Total Error | ±1 %FS (Voltage/Current) |
| [Us] Rated Supply Voltage | 24 V DC |
| Supply Voltage Limits | 19.2...30 V DC |
| Current Consumption | 50 mA @ 24 V DC (External), 50 mA @ 5 V DC (Internal) |
| Electrical Connection | 1 Removable Screw Terminal Block |
| Insulation | Photocoupler, 500 V between I/O channel, supply, and internal logic |
| Dimensions (W x H x D) | 23.5 x 90 x 70 mm (0.9 x 3.5 x 2.8 in) |
| Net Weight | 0.085 kg (0.187 lb) |
| Range Compatibility | Modicon M238, Twido, Advantys OTB |
