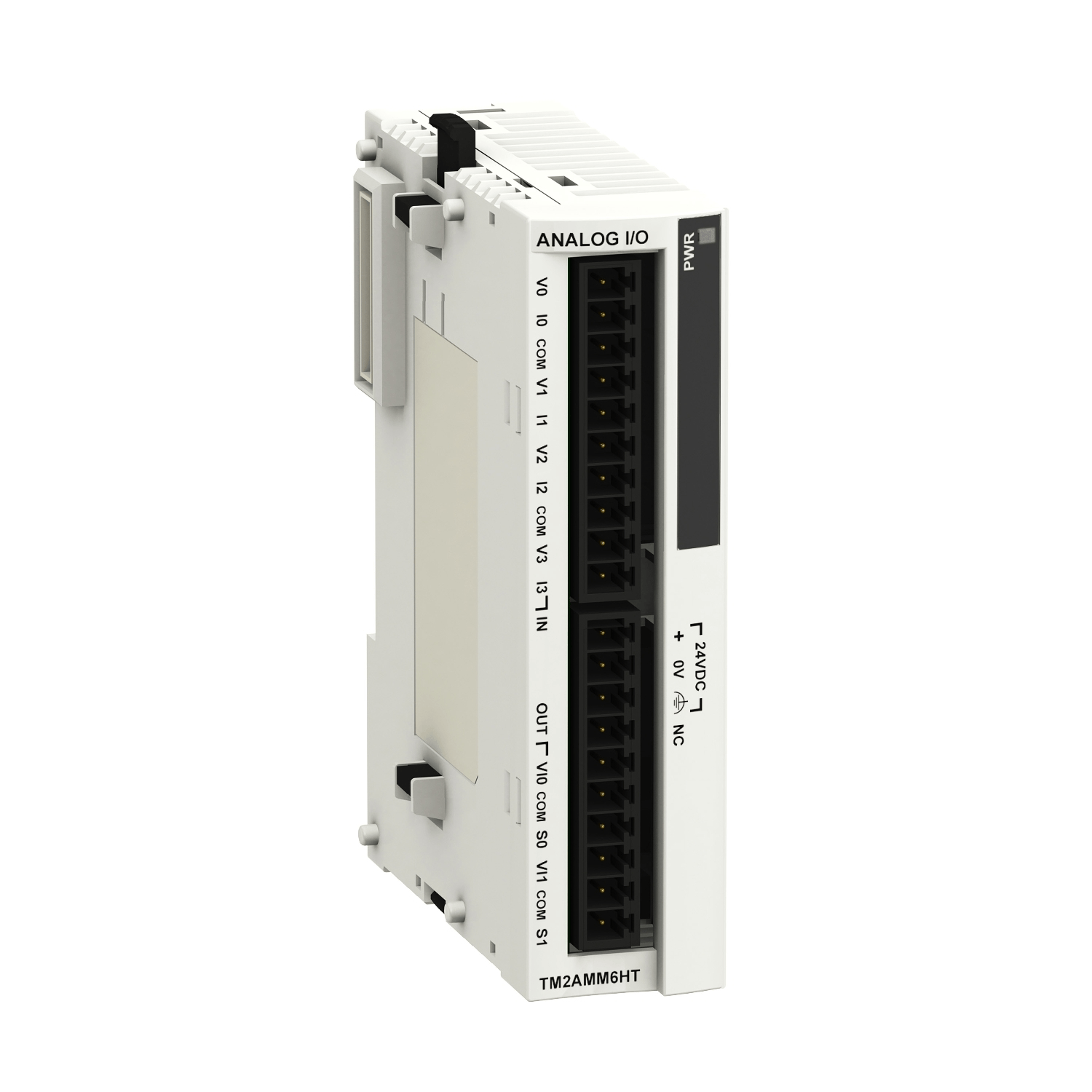

Schneider Electric TM2AMM6HT Analog I/O Module (M238) — 4 High-Level Voltage/Current Inputs, 2 Analog Outputs, Modicon TM2 Series
Regular price
$350.00 USD
Regular price
Sale price
$350.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
Overview: The Schneider Electric TM2AMM6HT is a 6-channel analog I/O expansion module for the Modicon M238 logic controller series. It provides four high-level analog inputs and two analog outputs, supporting both voltage (0-10V) and current (4-20mA) signals with 12-bit resolution. Designed for DIN rail mounting, it features isolated channels and is compatible with Twido and Advantys OTB systems.
Key Features:
- 4 Analog Inputs (High Level): Configurable for 0-10V or 4-20mA signals.
- 2 Analog Outputs: Configurable for 0-10V or 4-20mA signals.
- 12-bit Resolution for both input and output.
- Removable Screw Terminal Block for easy wiring.
- Photocoupler Insulation between I/O channels and internal logic.
- 24V DC External Supply Operation.
- Compact form factor for high-density panel layouts.
| Product ID | TM2AMM6HT |
| Brand | Schneider Electric |
| Range/Series | Modicon M238 Logic Controller |
| Product Type | I/O Expansion Module |
| Analog Input Number | 4 |
| Analog Input Type | Current 4...20 mA non differential, Voltage 0...10 V non differential |
| Analog Output Number | 2 |
| Analog Output Type | Current: 4...20 mA, Voltage: 0...10 V |
| Analog Input Resolution | 12 bits |
| Analog Output Resolution | 12 bits |
| LSB Value | 2.5 mV (voltage), 4 µA (current) |
| Measurement Error (Input) | +/- 0.5 % of full scale (0...10 V at 25 °C), +/- 0.5 % of full scale (4...20 mA at 25 °C) |
| Total Error (Output) | +/- 1.5 %FS (current), +/- 1.5 %FS (voltage) |
| Rated Supply Voltage [Us] | 24 V DC |
| Supply Voltage Limits | 19.2...30 V |
| Current Consumption (24V) | 80 mA |
| Electrical Connection | 1 removable screw terminal block |
| Conversion Time | 20 ms + 1 controller cycle time |
| Width | 23.5 mm |
| Depth | 70 mm |
| Height | 90 mm |
| Net Weight | 0.085 kg |
