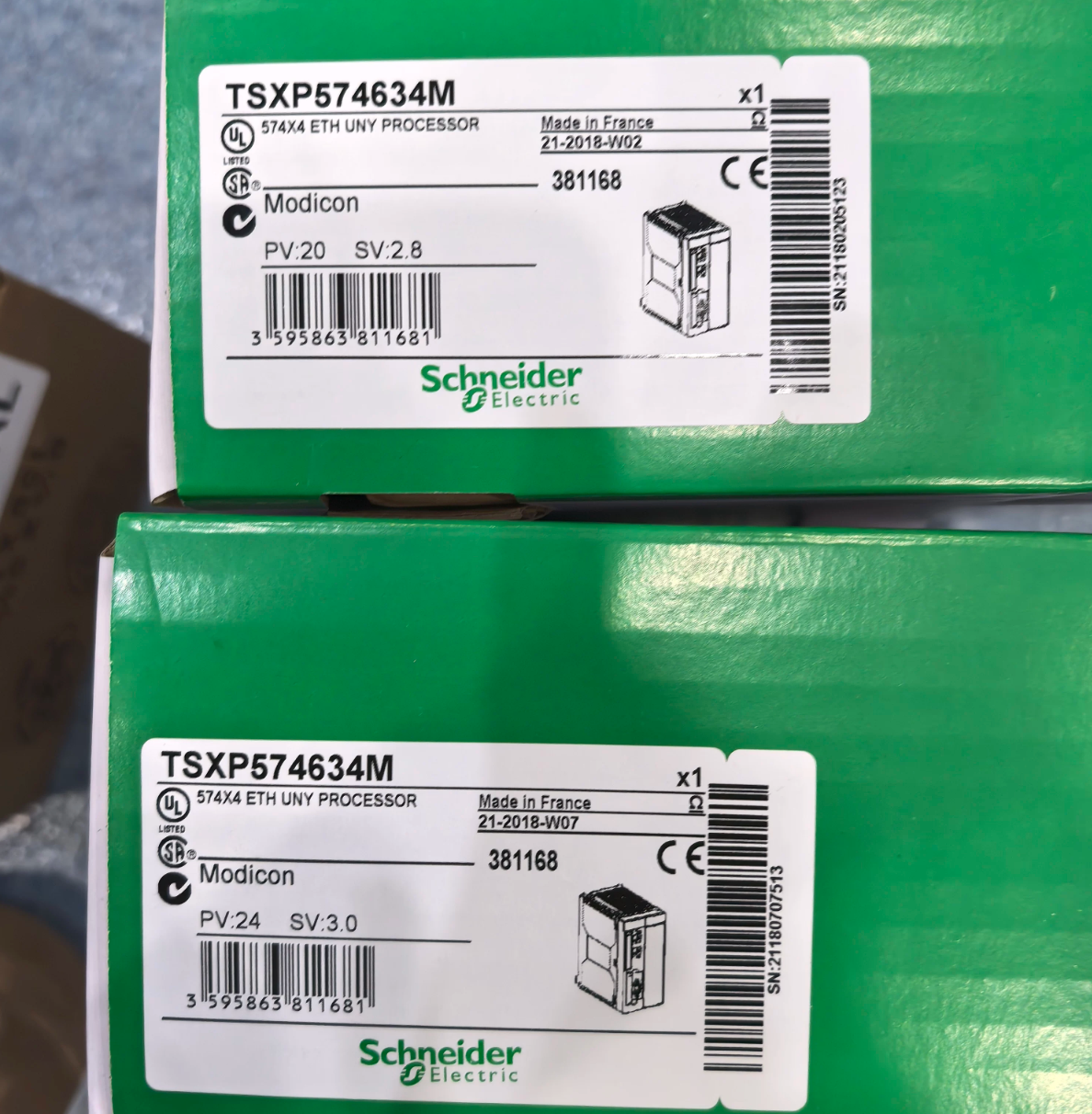

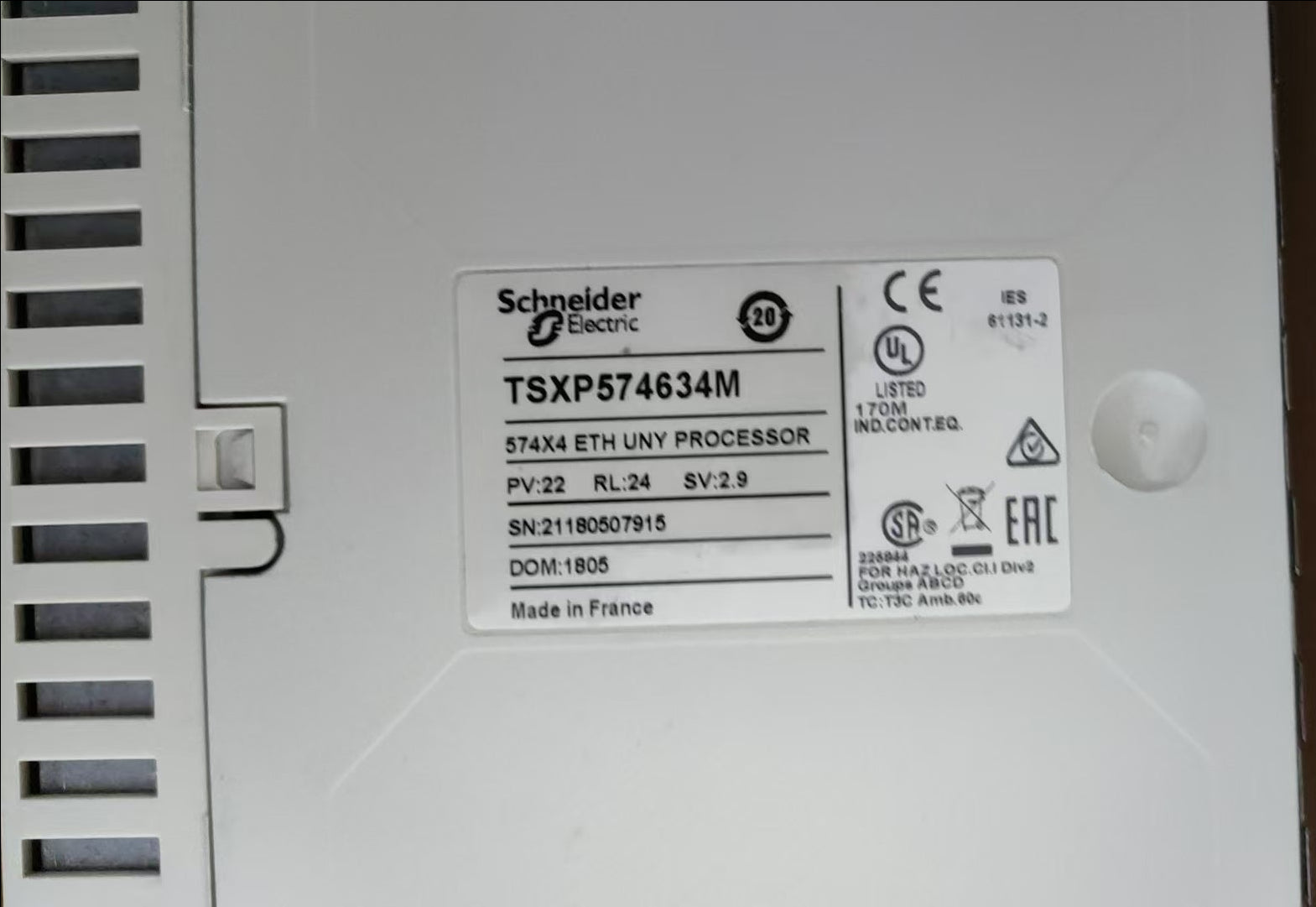

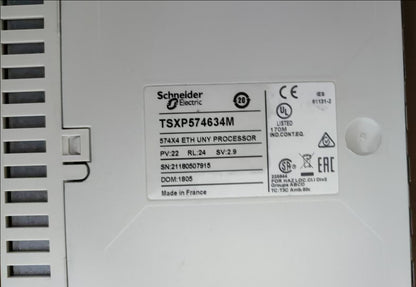

Schneider Electric TSXP574634M Modicon Premium Unity Processor, 440 kB Data RAM, Ethernet
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Schneider Electric TSXP574634M is a Unity processor for the Modicon Premium automation platform. It provides 440 kB of internal data RAM when used with a PCMCIA card, integrated Ethernet TCP/IP, USB and RS485 connections, and processing capacity for up to 2040 discrete I/O. The official lifecycle status is discontinued—service only, with end-of-service scheduled for December 31, 2026.
| Product Reference | TSXP574634M |
| Range of Product | Modicon Premium Automation platform |
| Product or Component Type | Unity processor |
| Software Designation | Unity Pro |
| Lifecycle Status | Discontinued—Service only |
| Discontinued On | December 2, 2020 |
| End-of-Service Date | December 31, 2026 |
| Internal RAM Without PCMCIA Card | 440 kB program and data |
| Internal RAM With PCMCIA Card | 2048 kB program and 440 kB data |
| Additional Data Storage | 16384 kB with PCMCIA card |
| Discrete I/O Processor Capacity | 2040 I/O |
| Analogue I/O Processor Capacity | 256 I/O |
| Application-Specific Channels | 64 |
| Process Control Capacity | 20 to 60 simple loops |
| Integrated Connections | Non-isolated RS485 serial link, female mini-DIN, 19.2 kbit/s; Ethernet TCP/IP RJ45; USB port, 12 Mbit/s |
| Ethernet Port | 10BASE-T/100BASE-TX |
| Current Consumption | 1880 mA at 5 V DC |
| Module Format | Double |
| IP Degree of Protection | IP20 |
| Ambient Operating Temperature | 0 to 60 °C |
Apexon Supply provides B2B lifecycle and replacement sourcing support for Schneider Electric Modicon Premium automation components. Buyers should verify processor memory, rack architecture, I/O capacity, integrated interfaces and Unity Pro project requirements before replacement.
Submit Schneider Electric TSXP574634M, the required quantity and installed-system details for procurement review and RFQ support. Most qualified RFQs receive a response or quote within 12 hours.
