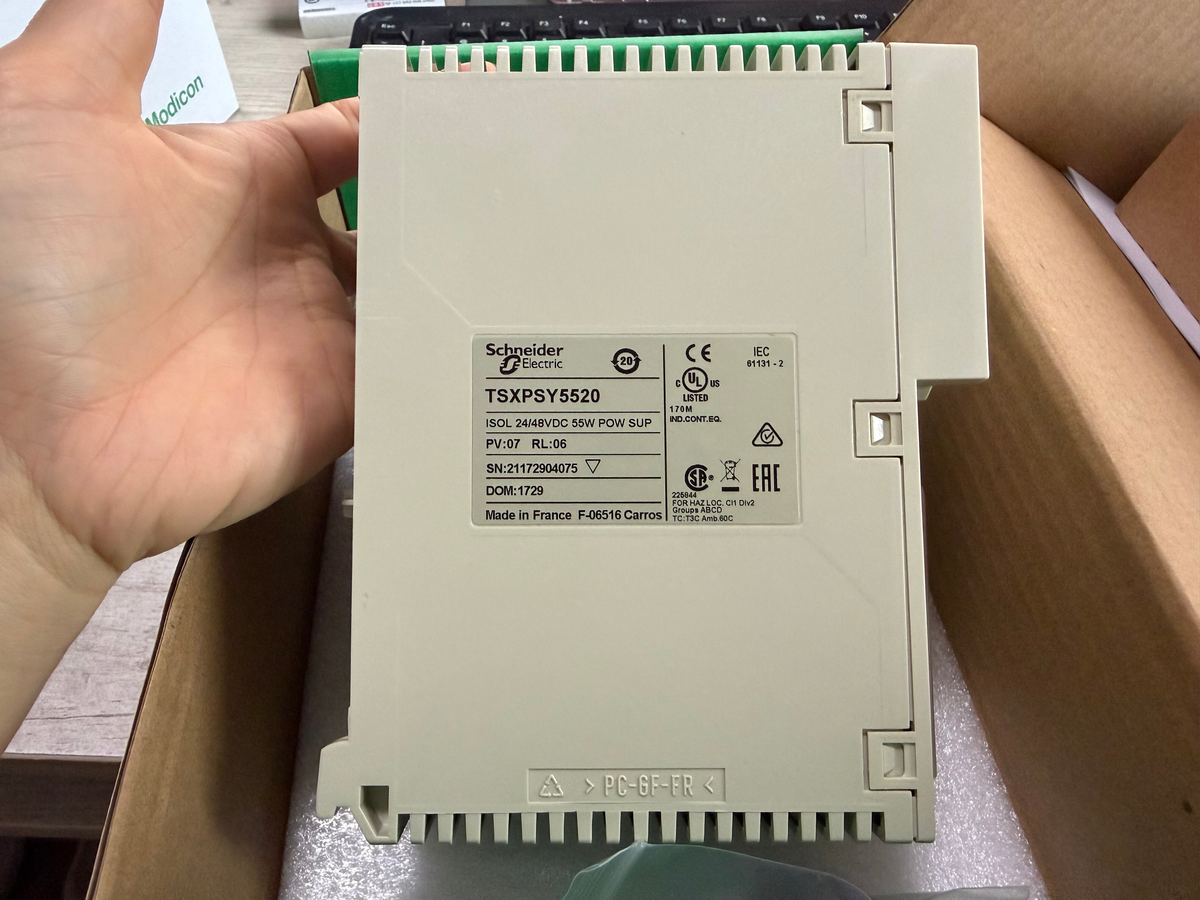

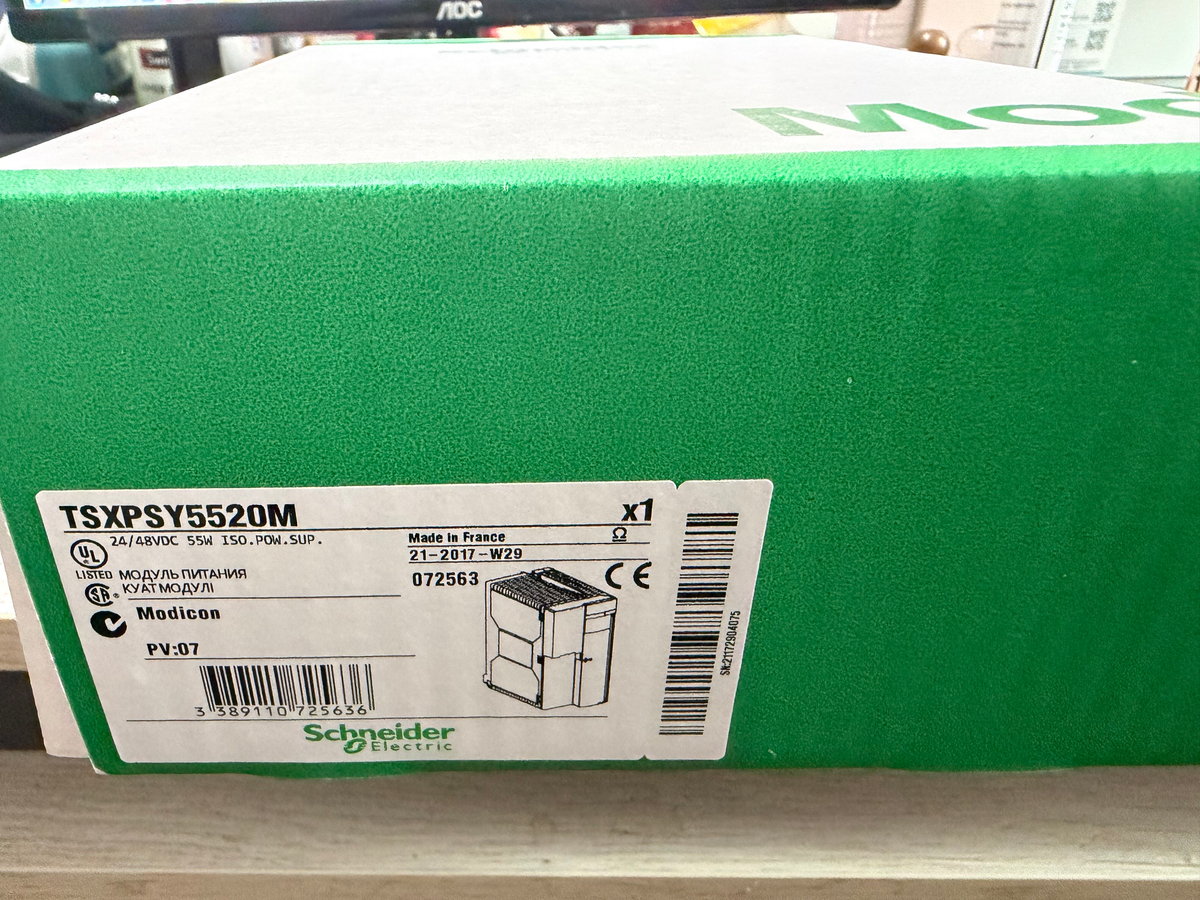

Schneider Electric TSXPSY5520M Power Supply Module, 24–48 VDC, 50 W
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
Schneider Electric TSXPSY5520M is a power supply module for the Modicon Premium Automation platform. It operates from a nominal 24...48 V DC supply with a 19.2...60 V input range and provides 50 W total useful secondary power.
| Model | TSXPSY5520M |
| Range of Product | Modicon Premium Automation platform |
| Product or Component Type | Power supply module |
| Primary Voltage | 24...48 V DC, 19.2...60 V |
| Input Current | ≤ 1500 mA at 48 V; ≤ 3000 mA at 24 V |
| Inrush Current | 15 A at 24 V; 15 A at 48 V |
| Total Useful Secondary Power | 50 W |
| Secondary Power | 35 W at 5 V DC; 19 W at 24 V DC |
| Current at Secondary Voltage | 7 A at 5 V DC; 0.8 A at 24 V DC relay power supply |
| Protection | 5 A time-delayed internal fuse on primary circuit; secondary overload, overvoltage and short-circuit protection |
| IP Degree of Protection | IP20 |
| Operating Temperature | 0...60 °C |
| Module Format | Double |
| Net Weight | 0.89 kg |
| Marking | CE |
| Product Certifications | RMRS, DNV, LR, ABS, RINA, GL, BV |
| GTIN | 3389110725636 |
The TSXPSY5520M is specified for the Modicon Premium Automation platform. Schneider Electric's connection diagram identifies a 24...48 V DC supply for this module and requires a protection device and switchgear upstream of the PLC station.
For B2B sourcing or replacement requirements involving this discontinued Schneider Electric power supply module, provide the existing module reference, required quantity, equipment configuration, and destination country so the exact requirement can be reviewed before quotation.
Submit your RFQ for Schneider Electric TSXPSY5520M with the required quantity and application details. Most qualified RFQs receive a response or quote within 12 hours.
