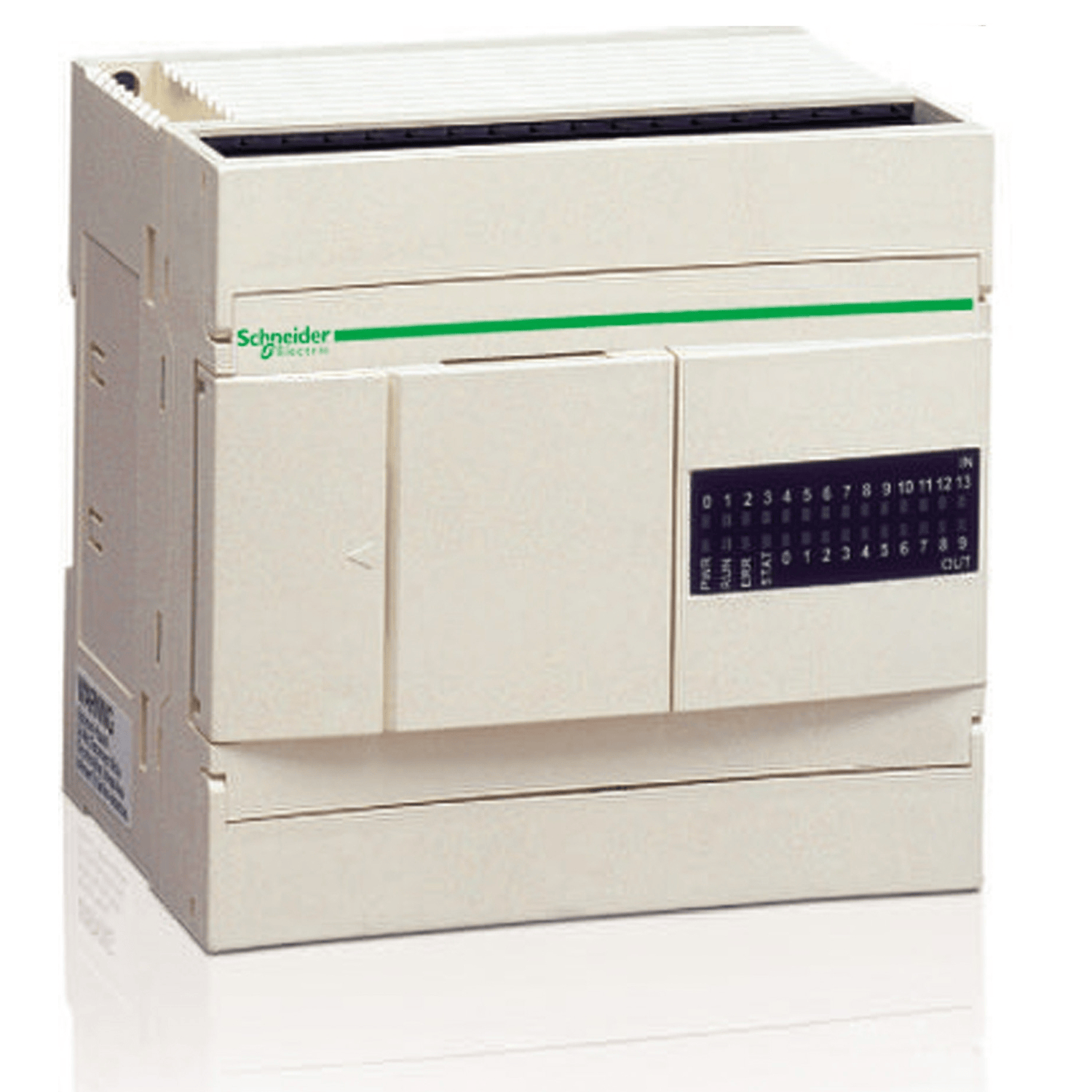

Schneider Electric TWDLCAA24DRF Twido Compact Base PLC Controller, 14x 24VDC Digital Inputs, 10x Relay Outputs, 100-240VAC Supply

The Schneider Electric TWDLCAA24DRF is a compact, extendable PLC base controller from the Twido range. It operates on a 100-240 V AC supply and features 14 discrete 24 V DC inputs (sink/source) and 10 relay outputs. Designed for flexible automation, it supports up to 4 I/O expansion modules, includes a built-in Modbus serial link, and offers PID control and event processing functions.

• Compact, Extendable PLC Base Controller
• Supply Voltage: 100...240 V AC, 50/60 Hz
• 14 Discrete Inputs: 24 V DC, Sink or Source Logic
• 10 Discrete Outputs: Relay, 2 A @ 240 V AC / 30 V DC
• Expandable with up to 4 I/O Modules (Max 120 I/O)
• Integrated Serial Link: RS485 (Modbus RTU/ASCII Master/Slave)
• Integrated Functions: PID Control, Event Processing
• Mounting: DIN Rail (35 mm) or Panel Mount
