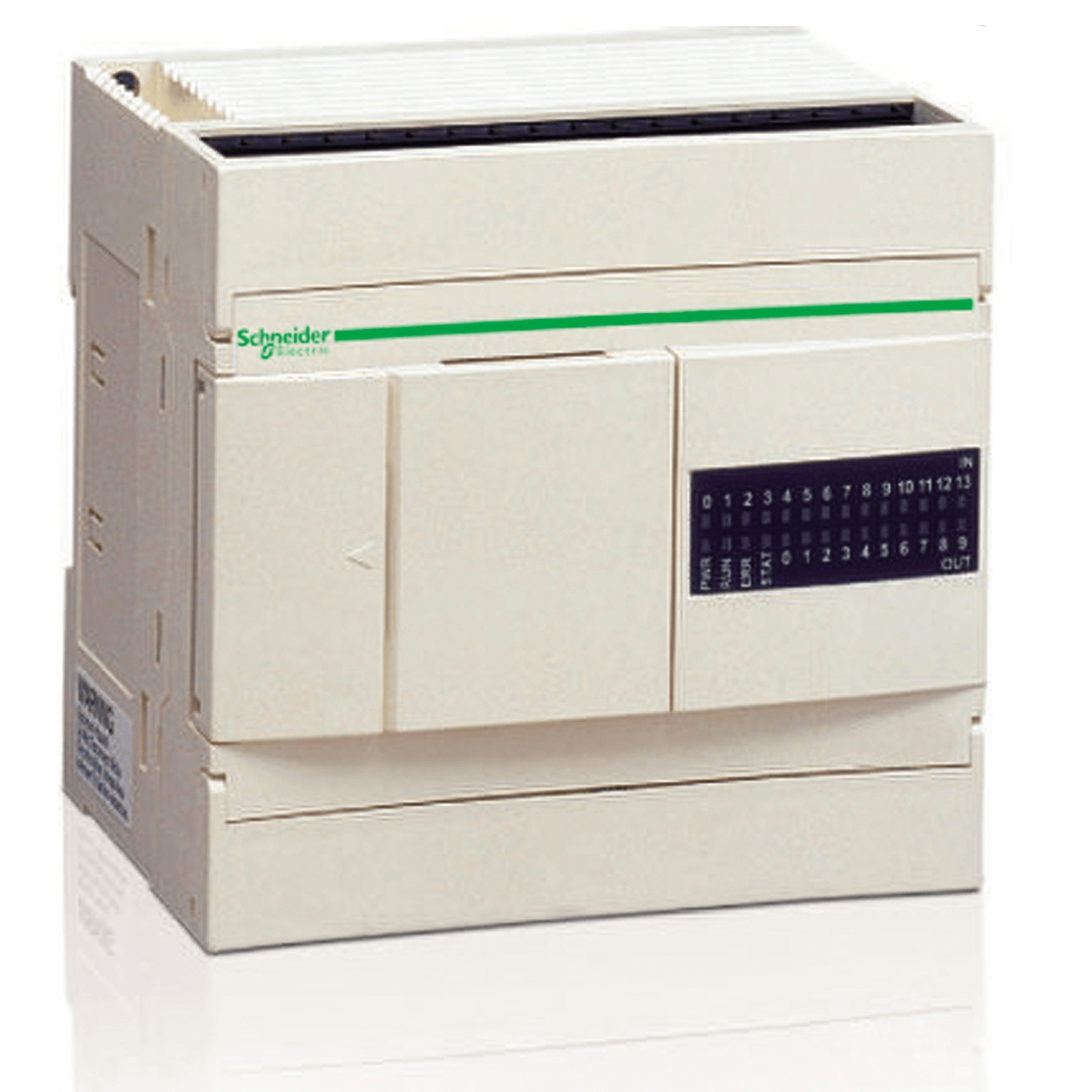

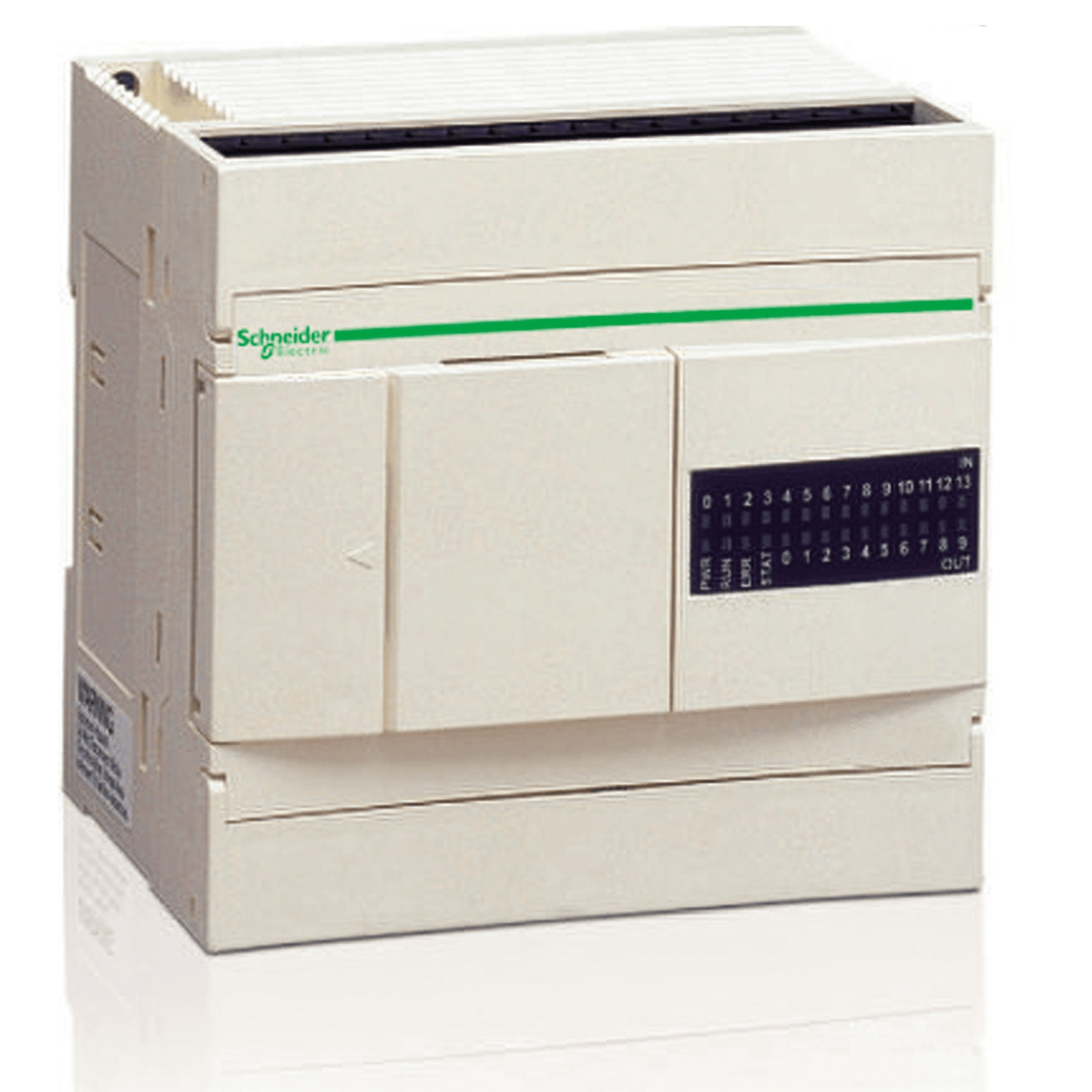

Schneider Electric TWDLCDA10DRF Twido Compact Base Controller — 24 VDC Supply, 6 Digital Inputs (24 VDC), 4 Relay Outputs - Compact PLC

Overview: The Schneider Electric TWDLCDA10DRF is a discontinued, compact DC-powered base controller from the Twido series. It is designed for space-constrained automation applications, operating on a 24VDC supply and providing 6 discrete 24VDC inputs and 4 relay outputs. The unit features a non-isolated serial link for Modbus communication and is housed in a compact, DIN-rail mountable enclosure.

Key Features:

• Compact, DIN-rail mountable base controller with 24VDC power supply.
• 6x 24VDC inputs (sink or source logic) and 4x relay outputs.
• Integrated non-isolated serial link (Mini-DIN) supporting Modbus RTU/ASCII master/slave protocols.
• Program memory capacity of 700 instructions.
• Includes high-speed counting inputs and an analog adjustment point.
• Protected by internal fuse; certifications include UL, CSA, and CE marking.
