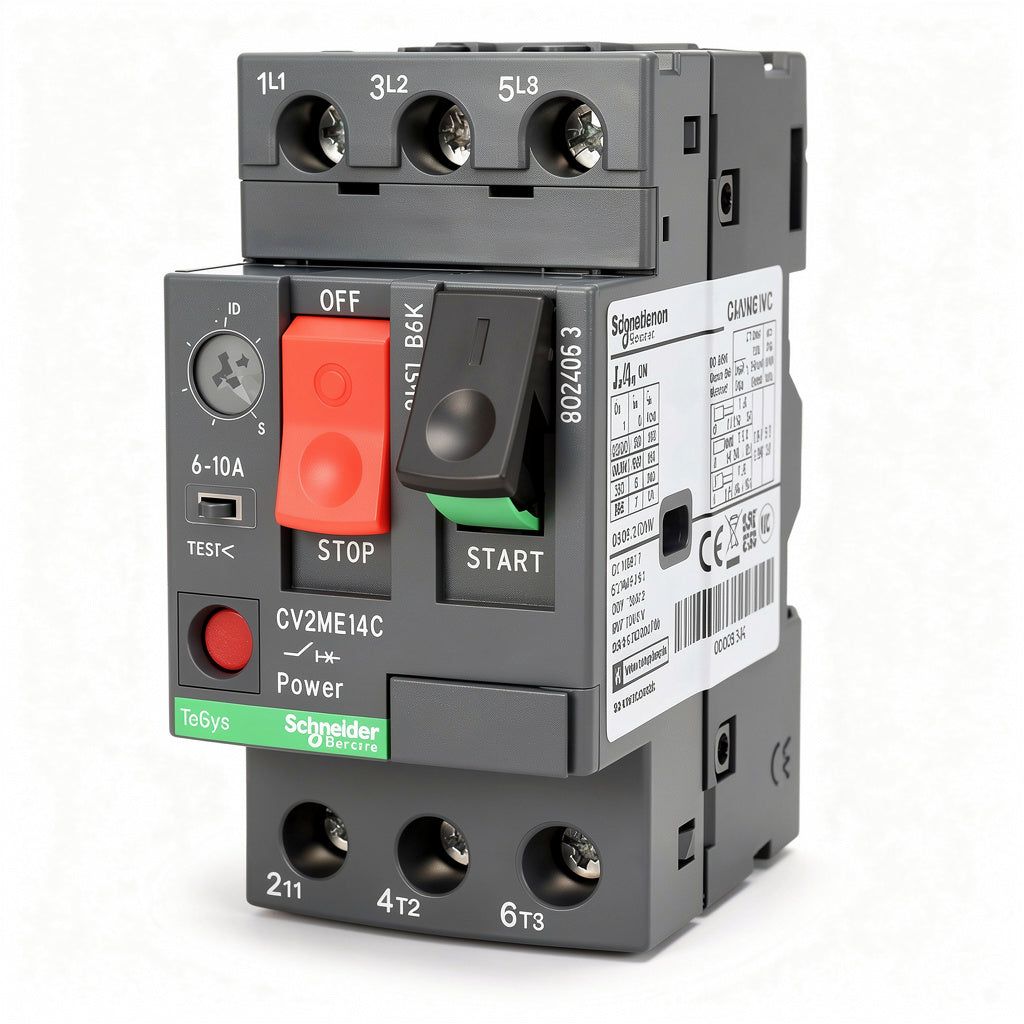

Schneider Electric GV2ME14C TeSys GV2 Motor Circuit Breaker, 6.0-10A Thermal Setting, 3P
Regular price
$40.00 USD
Regular price
Sale price
$40.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Schneider Electric GV2ME14C is a robust 3-pole thermal-magnetic motor circuit breaker designed for the manual control and protection of industrial motors. Featuring integrated push-button operation and a wide thermal adjustment range of 6 to 10 Amperes, this TeSys series device ensures reliable protection against overloads and short circuits in demanding AC network environments.
| Product ID (MPN) | GV2ME14C |
| Product Family | TeSys GV2 |
| Thermal Protection Range | 6...10 A |
| Magnetic Tripping Current | 138 A |
| Breaking Capacity (Icu) | 100 kA @ 400/415 V AC |
| Rated Operational Voltage | 690 V AC 50/60 Hz |
| Control Type | Push-button |
| Phase Failure Sensitivity | Yes conforming to IEC 60947-4-1 |
| IP Degree of Protection | IP20 conforming to IEC 60529 |
| Mounting Mode | Rail (35 mm DIN rail) / Clips |
