Schneider GV2ME16 TeSys GV2 Thermal-Magnetic Motor Circuit Breaker, 9-14A, 3P
Regular price
$35.00 USD
Regular price
Sale price
$35.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)

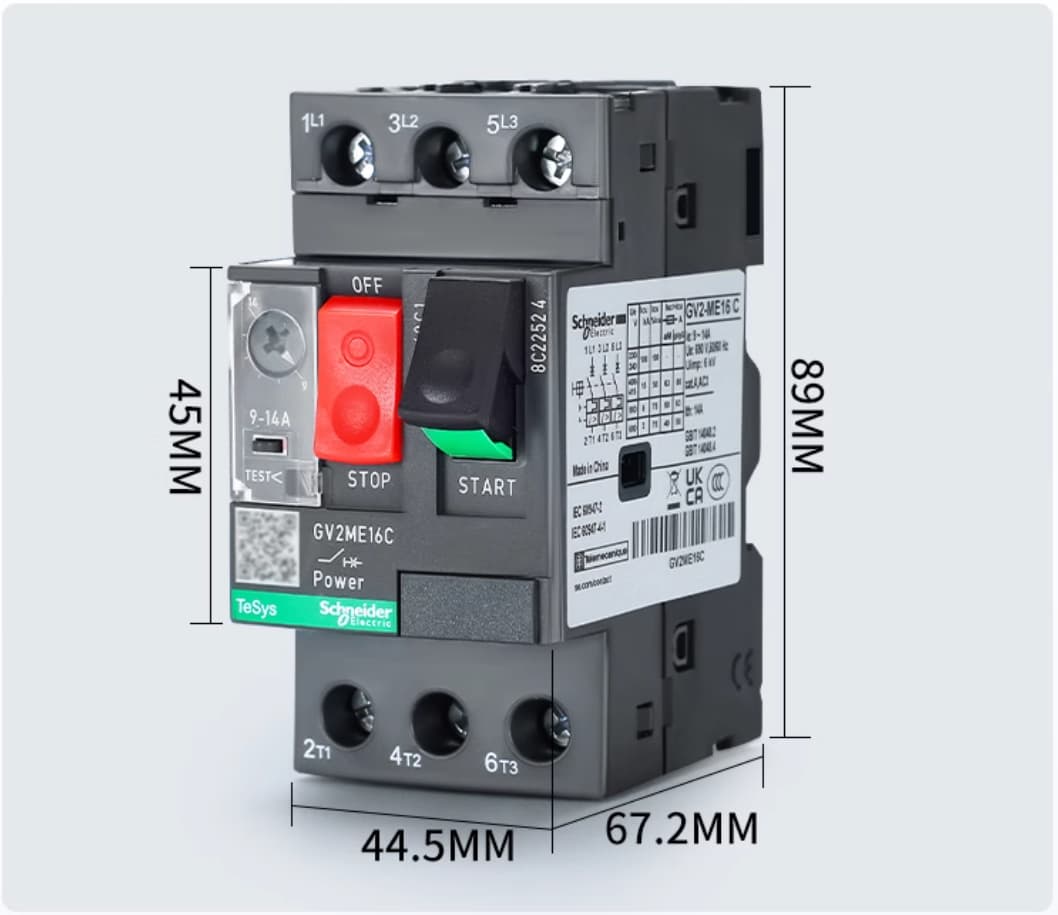

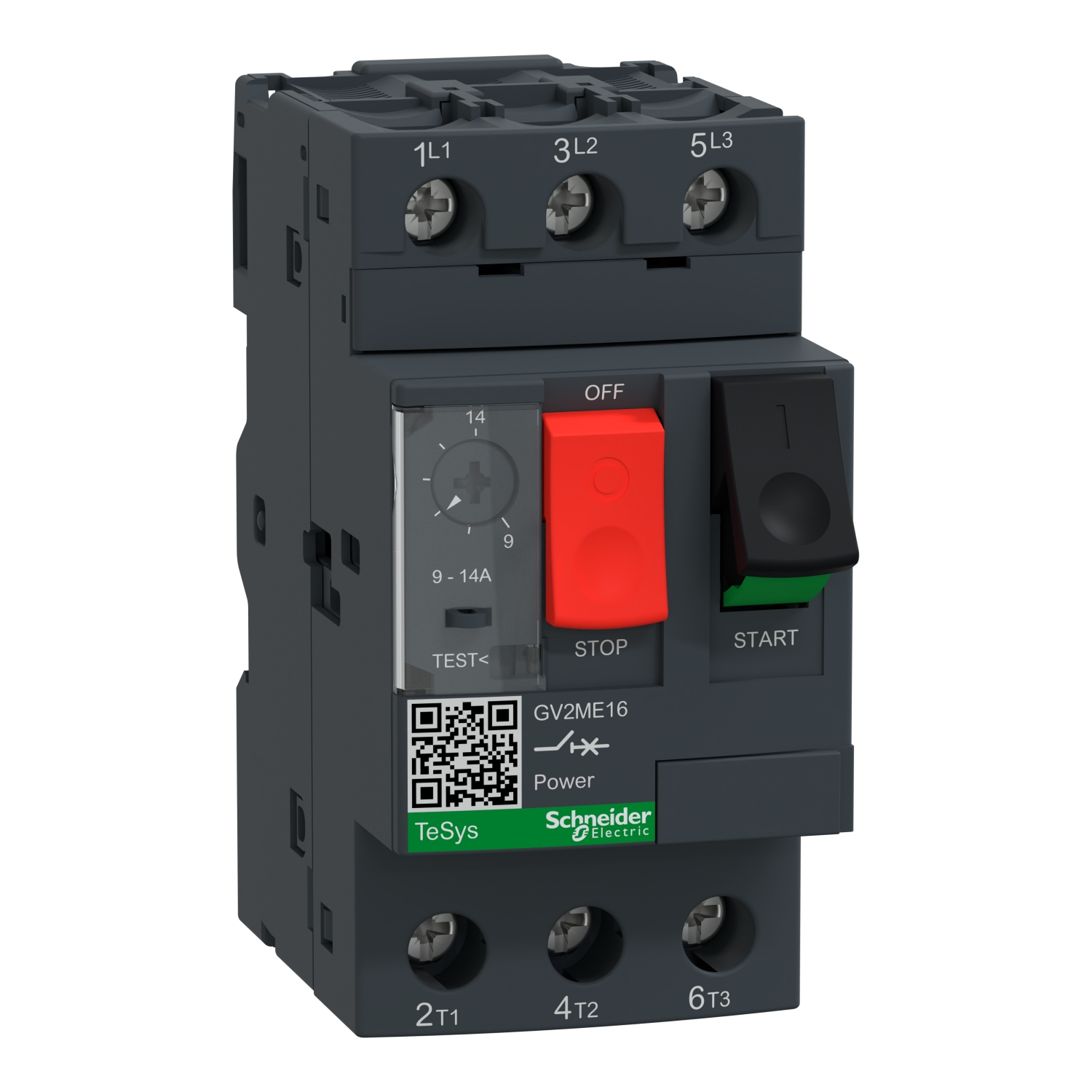

The Schneider Electric GV2ME16 is a high-performance 3-pole thermal-magnetic motor circuit breaker from the renowned TeSys GV2 range. Designed for the protection of motors up to 5.5 kW at 400/415 V, this device provides reliable manual control with push-button operation and integrated protection against short circuits and overloads in industrial environments.
| Product ID (MPN) | GV2ME16 |
| Range | TeSys GV2 |
| Poles Description | 3P |
| Rated Current [In] | 9...14 A |
| Rated Operational Voltage [Ue] | 690 V AC 50/60 Hz |
| Trip Unit Technology | Thermal-magnetic |
| Magnetic Tripping Current | 170 A |
| Ultimate Breaking Capacity [Icu] | 15 kA at 400/415 V AC |
| Control Type | Push-button |
| IP Degree of Protection | IP20 conforming to IEC 60529 |
| Mechanical Durability | 100,000 cycles |
| Dimensions (H x W x D) | 89 mm x 45 mm x 78.2 mm |
