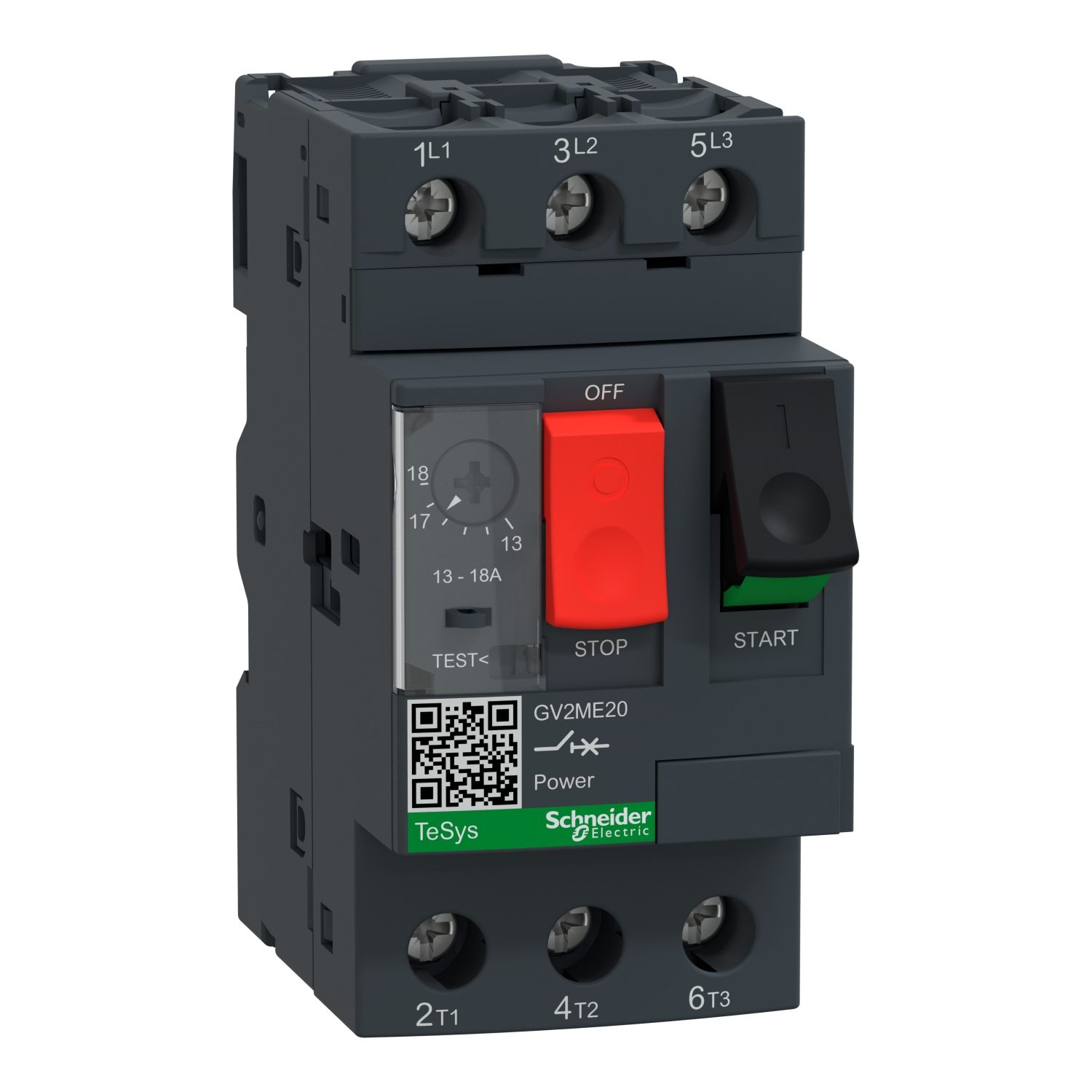

Schneider Electric GV2ME20 TeSys Deca Motor Circuit Breaker, 13-18A, 3P
Regular price
$40.00 USD
Regular price
Sale price
$40.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Schneider Electric GV2ME20 is a high-performance TeSys Deca motor circuit breaker designed for comprehensive motor protection. This 3-pole thermal-magnetic breaker provides essential protection against short-circuits and overloads for industrial motors, featuring a convenient push-button control interface and reliable screw clamp terminals for secure enterprise-grade installations.
| Product ID (MPN) | GV2ME20 |
| Rated Current [In] | 18 A |
| Thermal Protection Adjustment | 13...18 A |
| Poles Description | 3P |
| Network Type | AC (50/60 Hz) |
| Rated Operational Voltage [Ue] | 690 V AC |
| Breaking Capacity (Icu) | 15 kA at 400/415 V AC |
| Magnetic Tripping Current | 223 A |
| Control Type | Push-button |
| IP Degree of Protection | IP20 conforming to IEC 60529 |

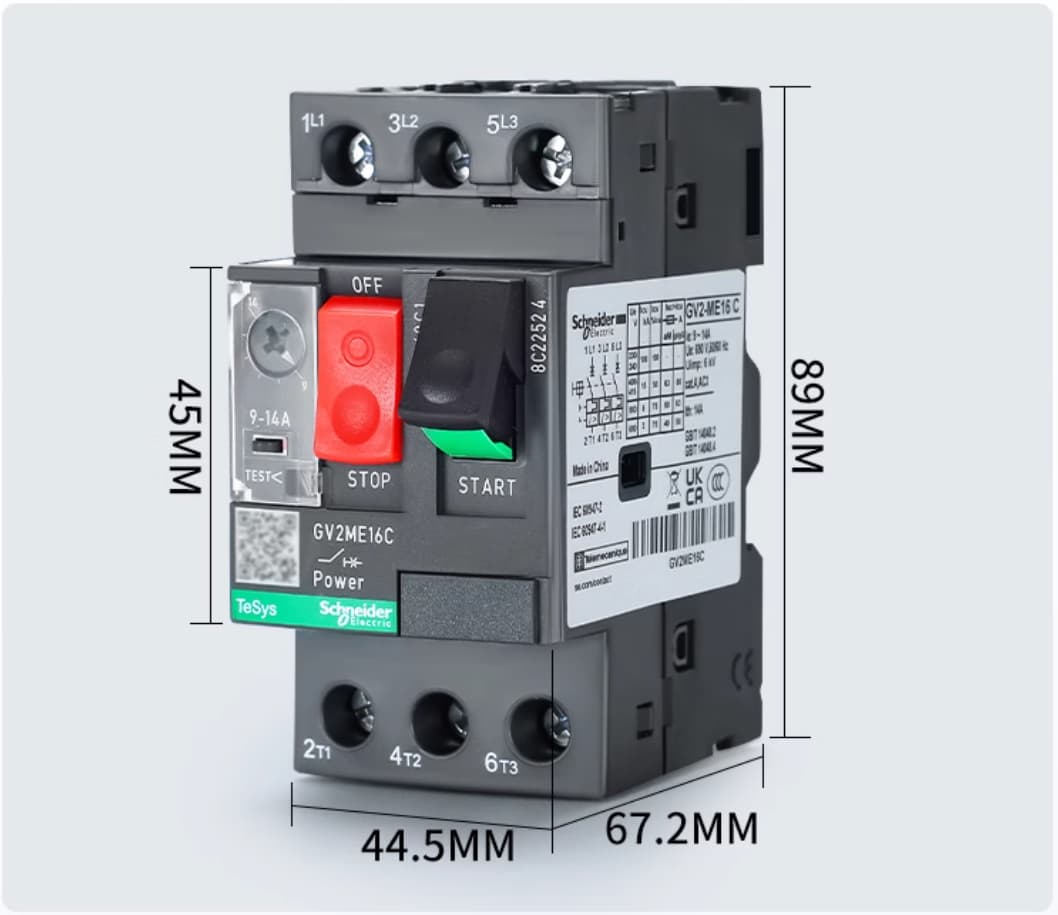

| Dimensions (H x W x D) | 89 mm x 45 mm x 78.5 mm |
| Mechanical Durability | 100,000 cycles |
