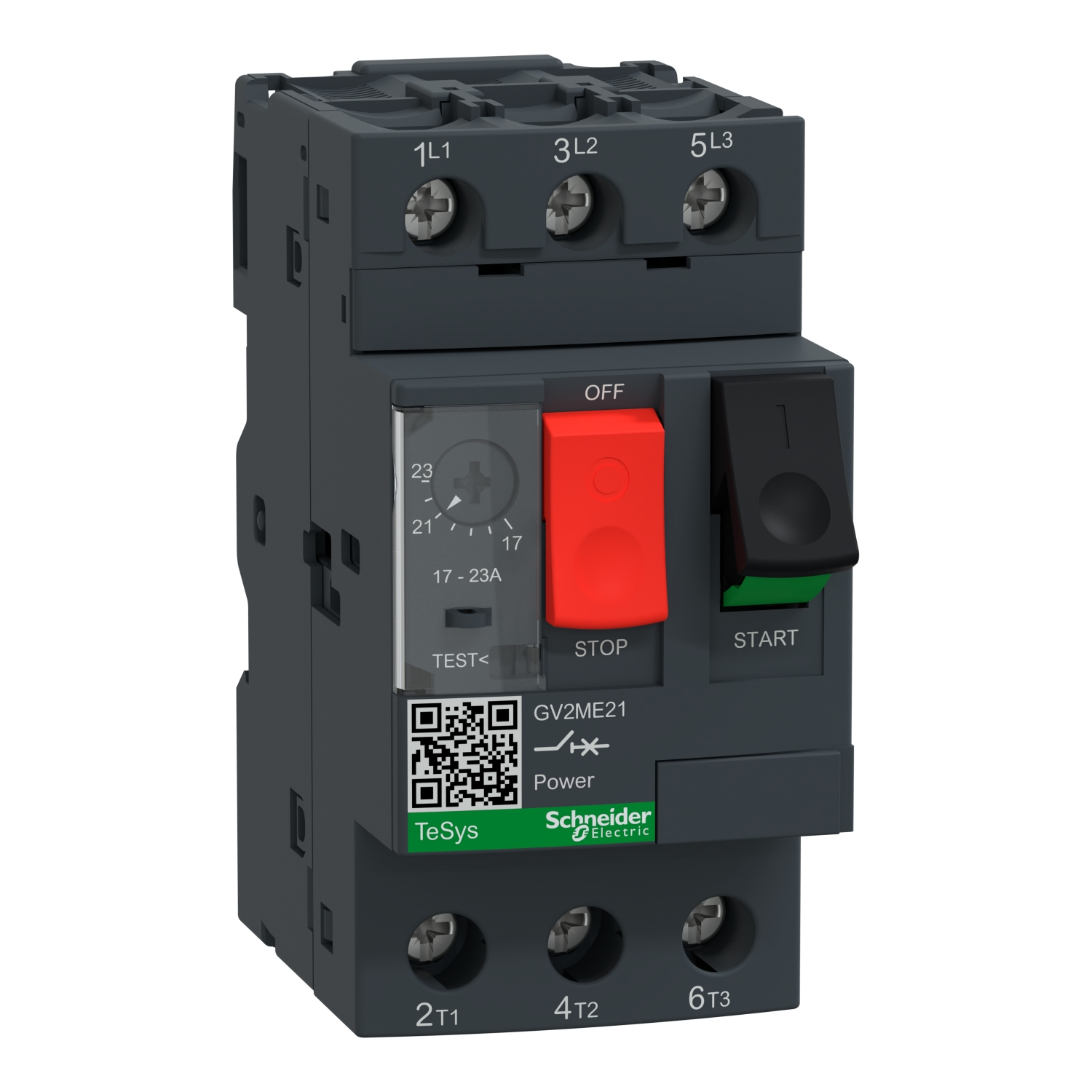

Schneider Electric GV2ME21 / GV2ME21C TeSys Deca Motor Circuit Breaker, 17-23A, 3P
Regular price
$40.00 USD
Regular price
Sale price
$40.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Schneider Electric GV2ME21 (GV2ME21C) is a robust TeSys Deca motor circuit breaker engineered for reliable motor protection in industrial environments. This 3-pole thermal-magnetic device provides precise adjustment for motor overloads and instantaneous short-circuit protection, featuring a user-friendly push-button interface and a compact 45mm DIN rail mounting design.
| Product ID (MPN) | GV2ME21 |
| Order Code | GV2ME21C |
| Rated Current [In] | 23 A |
| Thermal Protection Adjustment | 17...23 A |
| Poles Description | 3P |
| Ultimate Breaking Capacity [Icu] | 15 kA at 400/415 V AC 50/60 Hz |
| Magnetic Tripping Current | 327 A |
| Rated Operational Voltage [Ue] | 690 V AC 50/60 Hz |
| Control Type | Push-button |
| Mechanical Durability | 100,000 Cycles |

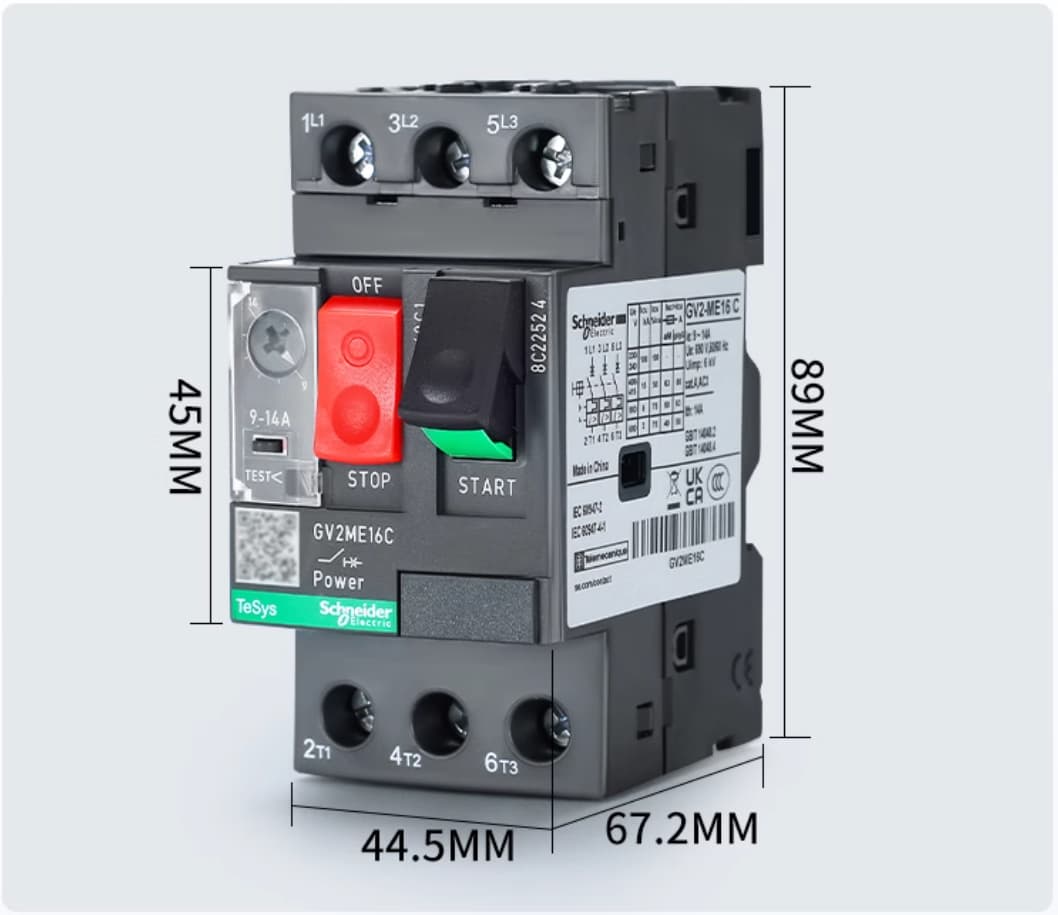

| Dimensions (H x W x D) | 89 mm x 45 mm x 78.5 mm |
