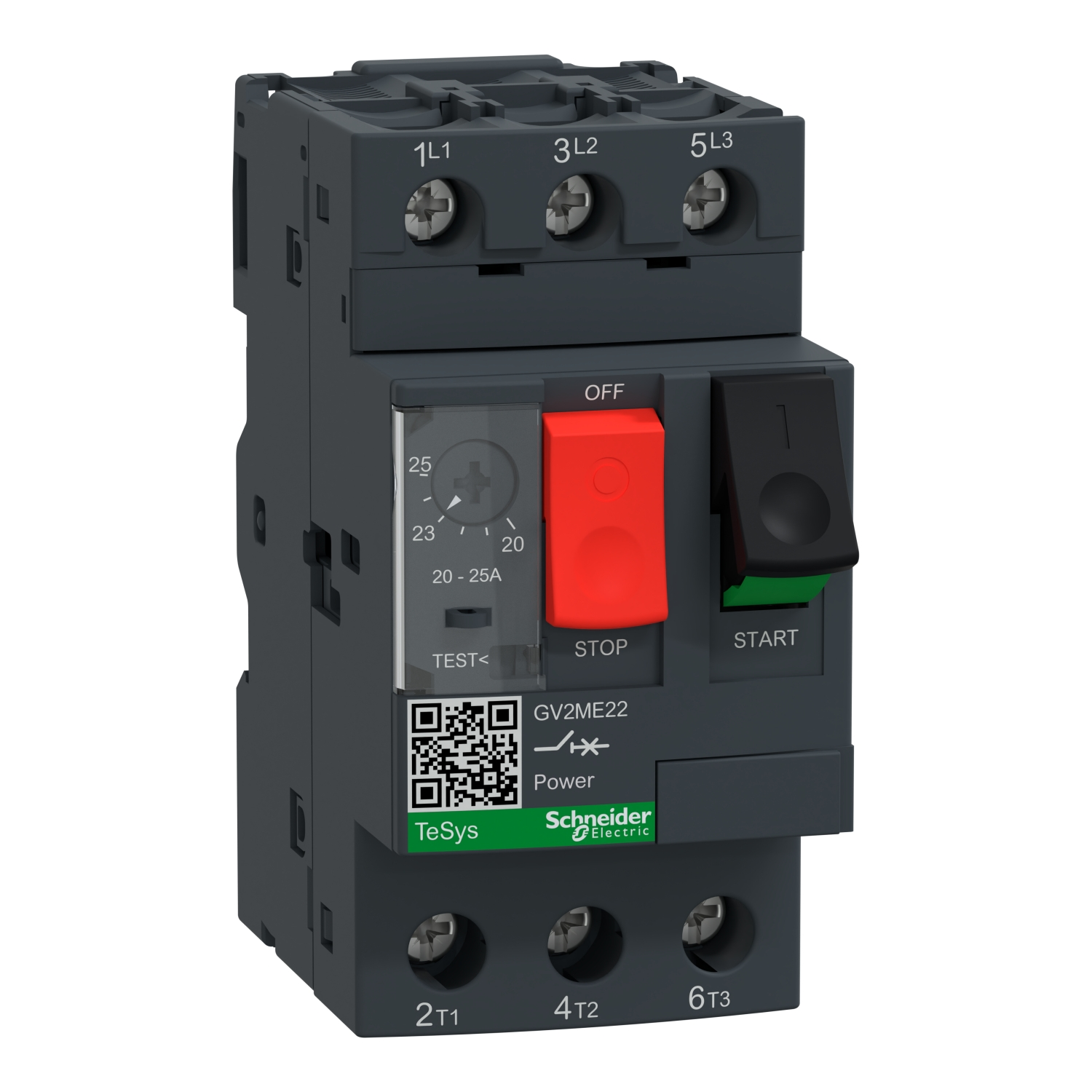

Schneider Electric GV2ME22 / GV2ME22C TeSys Deca Motor Circuit Breaker, 20-25A, 3P
Regular price
$40.00 USD
Regular price
Sale price
$40.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Schneider Electric GV2ME22 (GV2ME21C) is a high-performance TeSys Deca motor circuit breaker designed for heavy-duty industrial motor protection. This 3-pole thermal-magnetic device provides adjustable trip settings from 20 to 25 Amps, offering a reliable solution for short-circuit and overload protection with a simple push-button control mechanism and high mechanical durability for enterprise applications.
| Product ID (MPN) | GV2ME22 |
| Order Code | GV2ME22C |
| Rated Current [In] | 25 A |
| Thermal Protection Adjustment | 20...25 A |
| Poles Description | 3P |
| Ultimate Breaking Capacity [Icu] | 15 kA at 400/415 V AC 50/60 Hz |
| Magnetic Tripping Current | 327 A |
| Rated Operational Voltage [Ue] | 690 V AC 50/60 Hz |
| Control Type | Push-button |
| Mounting Mode | 35 mm symmetrical DIN rail: clipped |

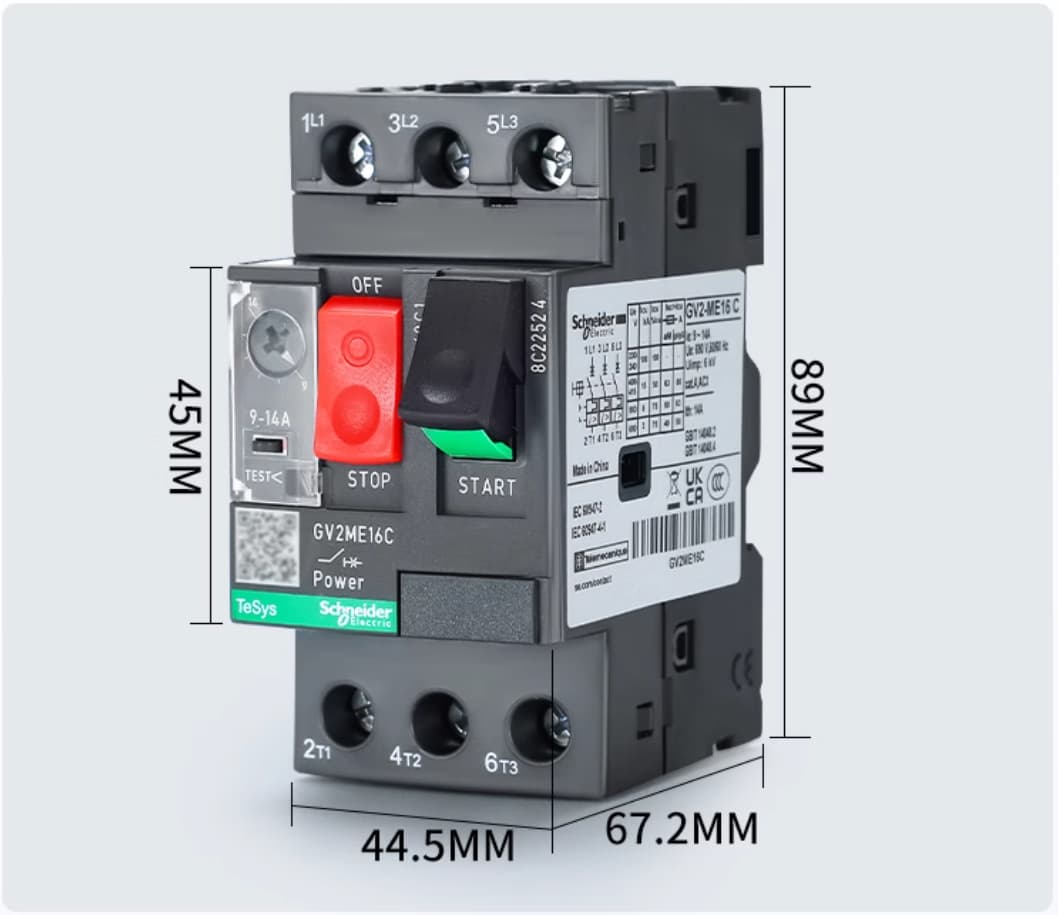

| Dimensions (H x W x D) | 89 mm x 45 mm x 78.5 mm |
