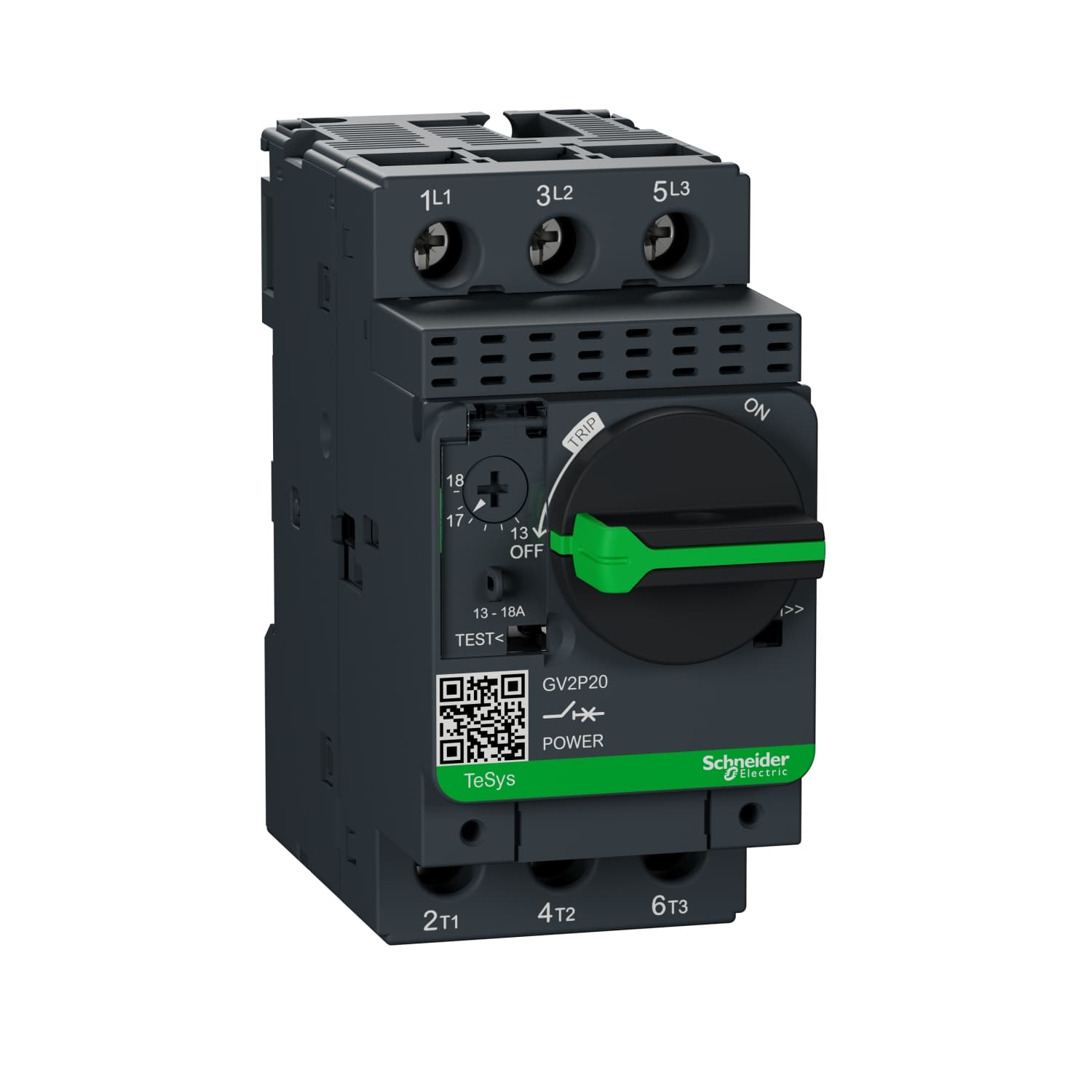

Schneider Electric GV2P20 / 3389110213515 TeSys Deca Motor Circuit Breaker, 13-18 A, 3P
Regular price
$140.00 USD
Regular price
Sale price
$140.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Schneider Electric GV2P20 is a professional-grade TeSys Deca manual starter and thermal-magnetic circuit protector designed for reliable motor protection. Featuring a rotary handle, a 3-pole configuration, and a thermal protection adjustment range of 13 to 18 A, this breaker is engineered for rigorous AC network environments up to 690V. It offers robust DIN rail mounting, screw clamp terminals, and is certified to major international standards (IEC, UL, CSA) for seamless integration into industrial automation panels.
| Product ID (MPN) | GV2P20 |
| EAN (GTIN) | 3389110213515 |
| Brand | Schneider Electric |
| Range | TeSys Deca |
| Product Type | Motor Circuit Breaker |
| Control Type | Rotary Handle |
| Trip Unit Technology | Thermal-Magnetic |
| Poles Description | 3P |
| Thermal Protection Adjustment Range | 13...18 A (IEC 60947-2) |
| Line Rated Current | 18 A |
| Magnetic Tripping Current | 341 A |
| Rated Operational Voltage [Ue] | 690 V AC 50/60 Hz (IEC 60947-2) |
| Rated Insulation Voltage [Ui] | 690 V AC 50/60 Hz |
| Motor Power (kW) | 7.5 kW @ 400/415 V AC | 9 kW @ 500 V AC | 15 kW @ 690 V AC |
| Connections - Terminals | Screw clamp terminals |
| Tightening Torque | 15.05 lbf.in (1.7 N.m) |
| Fixing Mode | 35 mm symmetrical DIN rail clipped / Panel screwed |
| Mechanical Durability | 100,000 cycles |
| Dimensions (W x H x D) | 45 mm x 89 mm x 97 mm |
| IP Degree of Protection | IP20 (IEC 60529) |
| Product Certifications | CCC, UL, CSA, EAC, ATEX, UKCA, Marine (BV, DNV-GL, LROS, RINA) |
