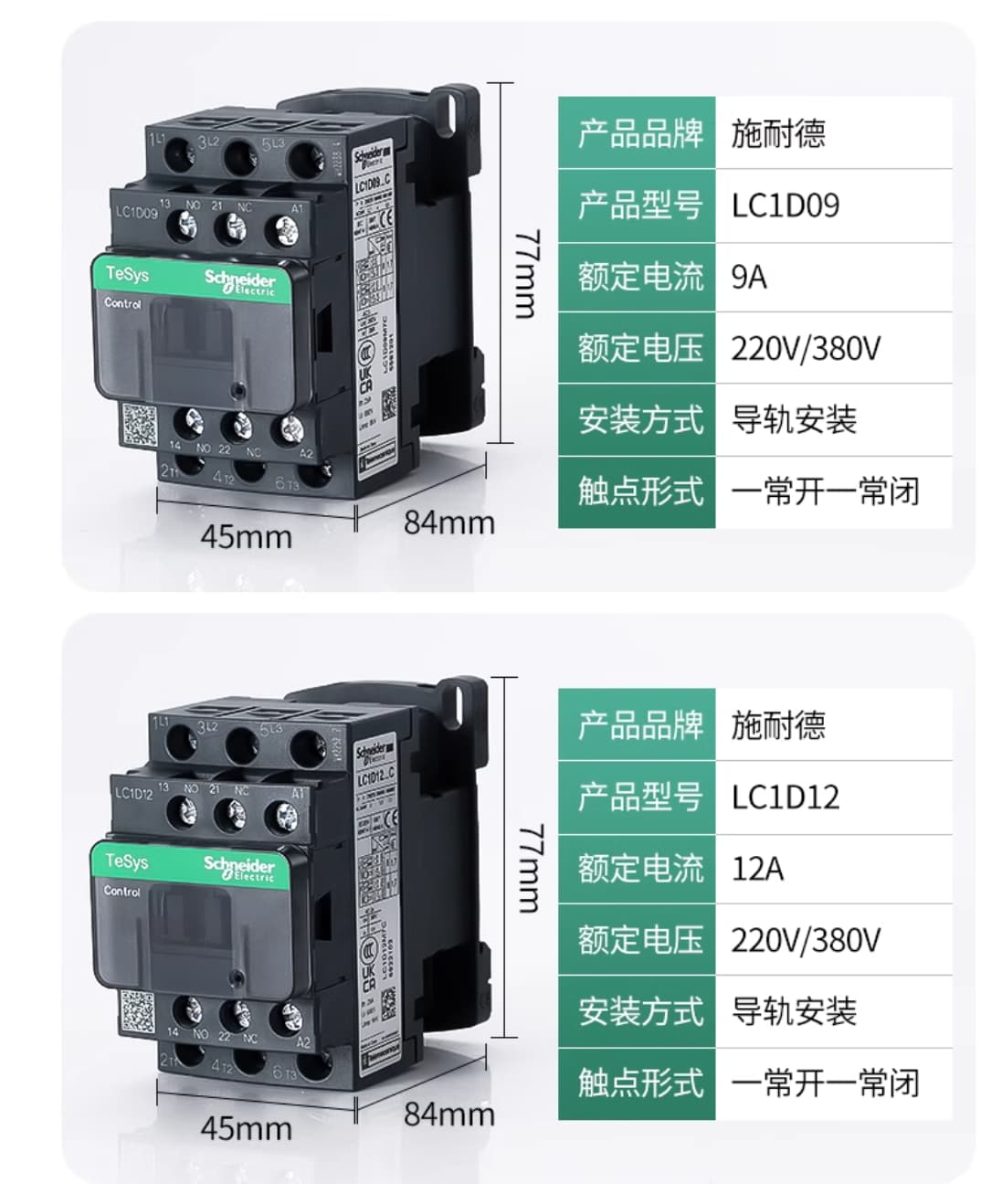

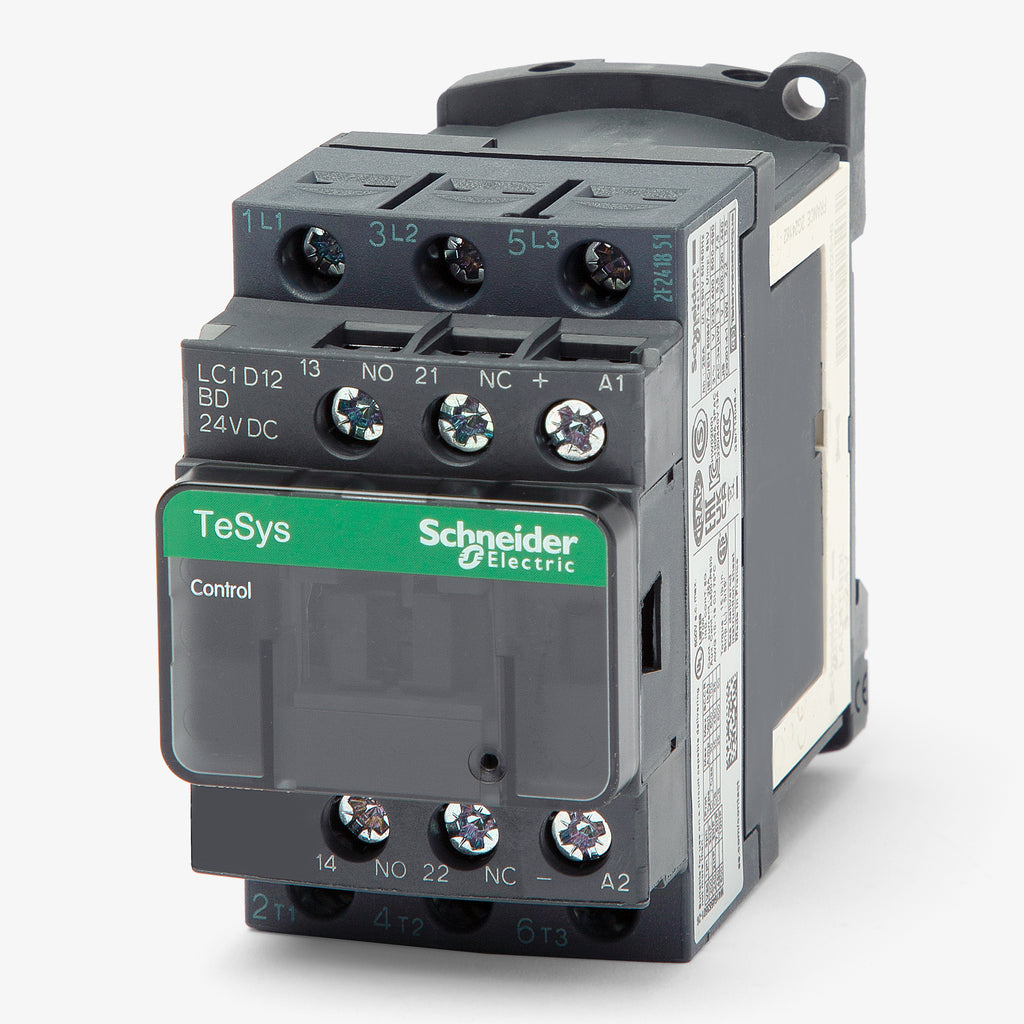

Schneider Electric LC1D12 TeSys Deca Contactor, 3P, 12A AC-3 5.5kW, 1NO+1NC Aux
Regular price
$20.00 USD
Regular price
Sale price
$20.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Schneider Electric LC1D12 is a high-reliability 3-pole contactor from the TeSys Deca range, engineered for precise control of motors and inductive loads in industrial automation. Capable of handling up to 5.5kW at 400V, this compact 45mm-wide contactor features high-quality silver alloy contacts and integrated 1NO+1NC auxiliary contacts, ensuring seamless operational efficiency and a long service life in demanding environments.
| Product ID (MPN) | LC1D12 |
| Rated Operational Current (Ie) | 12 A (AC-3, <= 440 V) / 25 A (AC-1, <= 440 V) |
| Motor Power (kW) | 5.5 kW at 380/400 V AC 50/60 Hz |
| Pole Configuration | 3P (3 NO) |
| Auxiliary Contact Composition | 1 NO + 1 NC |
| Control Voltage Options | AC 24V, 36V, 110V, 220V, 380V (50/60 Hz) |
| Electrical Durability | 1.2 Mcycles (at 12A AC-3) |
| Tightening Torque | 1.7 N.m |
| Mechanical Robustness | Vibration resisting: 4 Gn / Shock resisting: 15 Gn |
