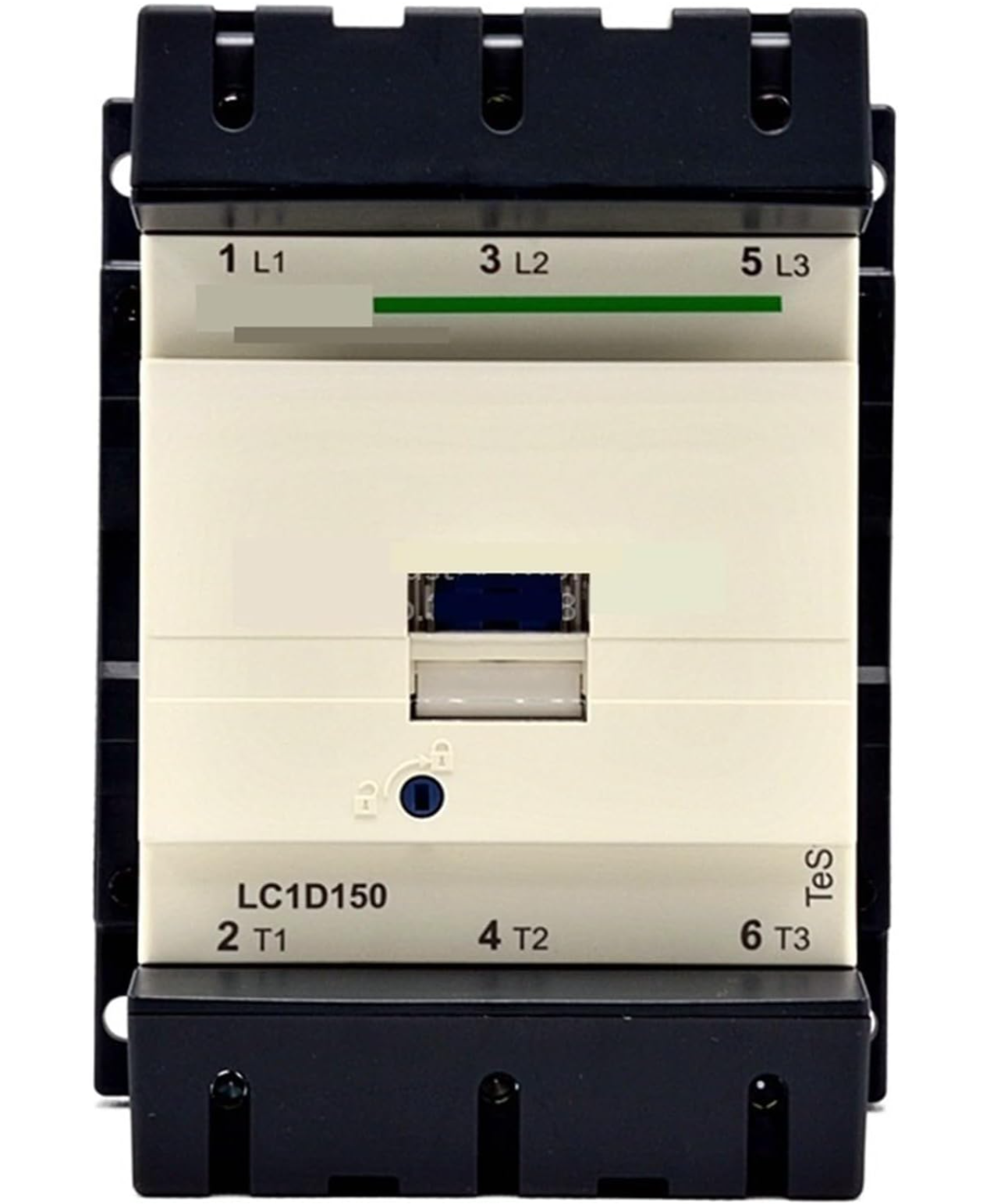

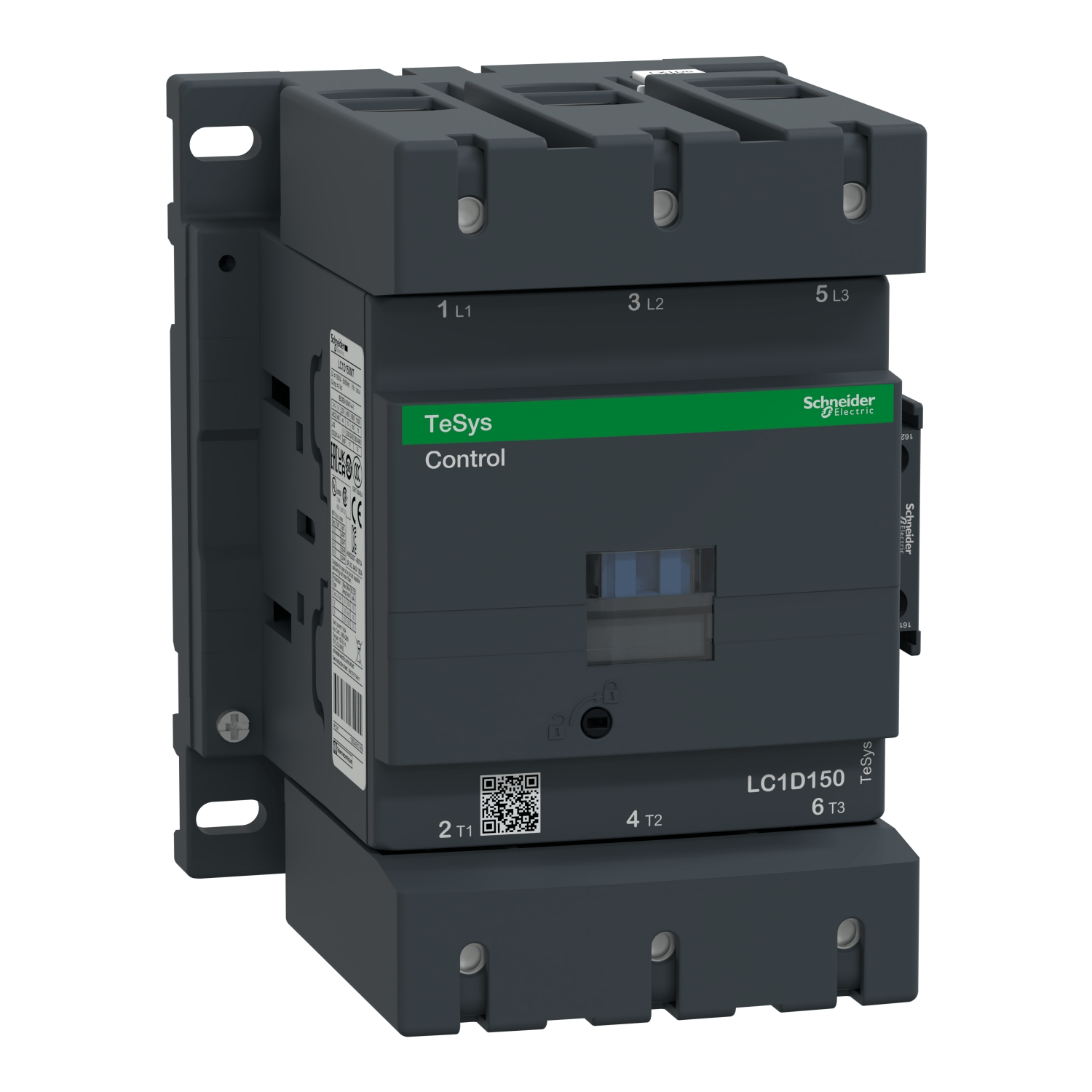

Schneider Electric LC1D150M7 TeSys D Contactor, 150A, 3P, 100HP at 480VAC, 220VAC 50/60Hz Coil, With Protective Cover

$200.00 USD
$200.00 USD
Sale Sold out
Shipping calculated at checkout.

Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)

Visa Mastercard PayPal Apple Pay Google Pay American Express
TECHNICAL DATASHEET PDF

The Schneider Electric LC1D150M7 is a TeSys D series, 3-pole (3 NO) non-reversing contactor designed for high-power motor control applications. It features a 150A rated operational current (AC-3), a 220VAC 50/60Hz coil with a built-in suppressor, and includes a protective cover. This contactor is rated for motors up to 100 HP at 480VAC and offers a high short-circuit current rating (SCCR) of up to 100kA. Note: This product is scheduled for discontinuation.

  • TeSys D Series Contactor for Motor Control
  • Rated Operational Current: 150 A (AC-3) at ≤440VAC
  • 3 Main Poles, Normally Open (3 NO)
  • Coil Voltage: 220 V AC 50/60 Hz (with built-in suppressor)
  • Motor Rating: Up to 100 HP at 480VAC, 60 Hz
  • High Short-Circuit Withstand: Up to 100 kA SCCR
  • Includes Protective Cover
  • High Mechanical Durability: 8 Million Cycles
  • Product Status: To Be Discontinued (Dec 31, 2026)
  • Compliant with IEC, UL, CSA, and other global standards
Product ID / Reference LC1D150M7
EAN / GTIN 3389110476057
Product Status To Be Discontinued (Dec 31, 2026)
Brand Schneider Electric
Series TeSys D
Type Contactor, Non-reversing
Poles Description 3P
Main Contact Composition 3 NO
Protective Cover With
Rated Operational Voltage (Ue) ≤ 1000 V AC, ≤ 300 V DC
Rated Operational Current (Ie) - AC-3 150 A (at ≤440 V AC, <60 °C)
Rated Operational Current (Ie) - AC-1 200 A (at ≤440 V AC, <60 °C)
Control Circuit Voltage (Uc) 220 V AC 50/60 Hz
Motor Power - AC-3 (50/60 Hz) 75 kW at 380...400V, 80 kW at 415...440V, 90 kW at 500V, 100 kW at 660...690V, 40 kW at 220...230V
Maximum Horsepower (60 Hz) 100 HP at 460/480V AC, 125 HP at 575/600V AC
Short Circuit Current Rating (SCCR) Up to 100 kA
Conventional Free Air Thermal Current (Ith) 200 A (at 60 °C) for power circuit
Rated Making Capacity (Power Circuit) 1660 A at 440 V (IEC 60947)
Rated Breaking Capacity (Power Circuit) 1400 A at 440 V (IEC 60947)
Rated Short-Time Withstand Current (Icw) 250 A (10 min), 580 A (1 min), 1200 A (10 s), 1400 A (1 s) at 40°C
Associated Fuse Rating (Power Circuit) 315 A gG (Type 1), 250 A gG (Type 2) at ≤690 V
Power Dissipation per Pole (AC-3) 13.5 W
Rated Insulation Voltage (Ui) 1000 V (IEC 60947-4-1) for power circuit
Rated Impulse Withstand Voltage (Uimp) 8 kV (IEC 60947)
Mechanical Durability 8 Million Cycles
Electrical Durability (AC-3) 0.85 Million Cycles (150 A at ≤440V)
Control Circuit Type AC 50/60 Hz (with built-in bidirectional peak limiting diode suppressor)
Inrush Power (VA) 280-350 VA (cos φ 0.9 at 20°C)
Hold-in Power (VA) 2-18 VA (cos φ 0.9 at 20°C)
Operating Time Closing: 20...35 ms, Opening: 40...75 ms
Maximum Operating Rate 1200 cycles/h at 60 °C
Power Circuit Terminal Cross-Section 10...120 mm² (connector, flexible/solid)
Control Circuit Terminal Cross-Section 1...2.5 mm² (screw clamp, flexible/solid)
Tightening Torque (Power Circuit) 12 N.m (106.2 lbf.in) (connector)
Tightening Torque (Control Circuit) 1.2 N.m (10.6 lbf.in) (screw clamp)
Auxiliary Contact Composition 1 NO + 1 NC (Mechanically Linked)
Mounting Rail, Plate
IP Degree of Protection IP20 front face (IEC 60529)
Operating Ambient Temperature -40…60 °C (60…70 °C with derating)
Operating Altitude 0...3000 m (0...9842 ft)
Shock Resistance (Contactor Closed) 15 Gn for 11 ms
Vibration Resistance (Contactor Closed) 4 Gn, 5...300 Hz
Dimensions (H x W x D) 158 x 120 x 136 mm (6.2 x 4.7 x 5.4 in)
Net Weight 2.5 kg (5.5 lb)
Standards IEC 60947-4-1, UL 60947-4-1, CSA C22.2 No 14, EN 60947-4-1
Certifications UL, CSA, CCC, CE, UKCA, Marine, EAC
Packaging Unit (1 PCE)
