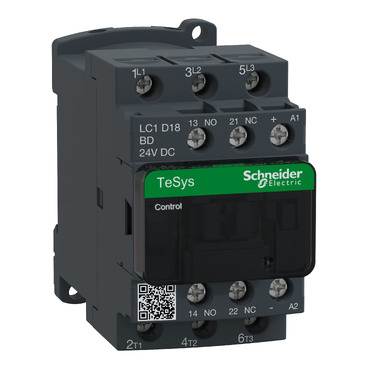

Schneider Electric LC1D18 TeSys Deca Contactor, 3P, 18A AC-3 7.5kW, 1NO+1NC Aux
Regular price
$20.00 USD
Regular price
Sale price
$20.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Schneider Electric LC1D18 is an industry-leading 3-pole contactor from the TeSys Deca series, engineered for high-efficiency motor control in industrial and infrastructure applications. Optimized for motors up to 7.5kW at 400V, this compact and robust component features advanced safety with integrated 1NO+1NC auxiliary contacts and high vibration resistance, making it an essential asset for reliable, cost-effective industrial operations.
| Product ID (MPN) | LC1D18 |
| Rated Operational Current (Ie) | 18 A (AC-3, <= 440 V) / 32 A (AC-1, <= 440 V) |
| Motor Power (kW) | 7.5 kW at 380/400 V AC 50/60 Hz |
| Pole Configuration | 3P (3 NO) |
| Auxiliary Contacts | 1 NO + 1 NC |
| Control Voltage Options | Available in AC 24V, 36V, 110V, 220V, 380V (50/60 Hz) |
| Rated Impulse Withstand Voltage | 6 kV conforming to IEC 60947 |
| Connection Type | Screw Clamp Terminals |
| Operating Time | 12...22 ms closing / 4...19 ms opening |
