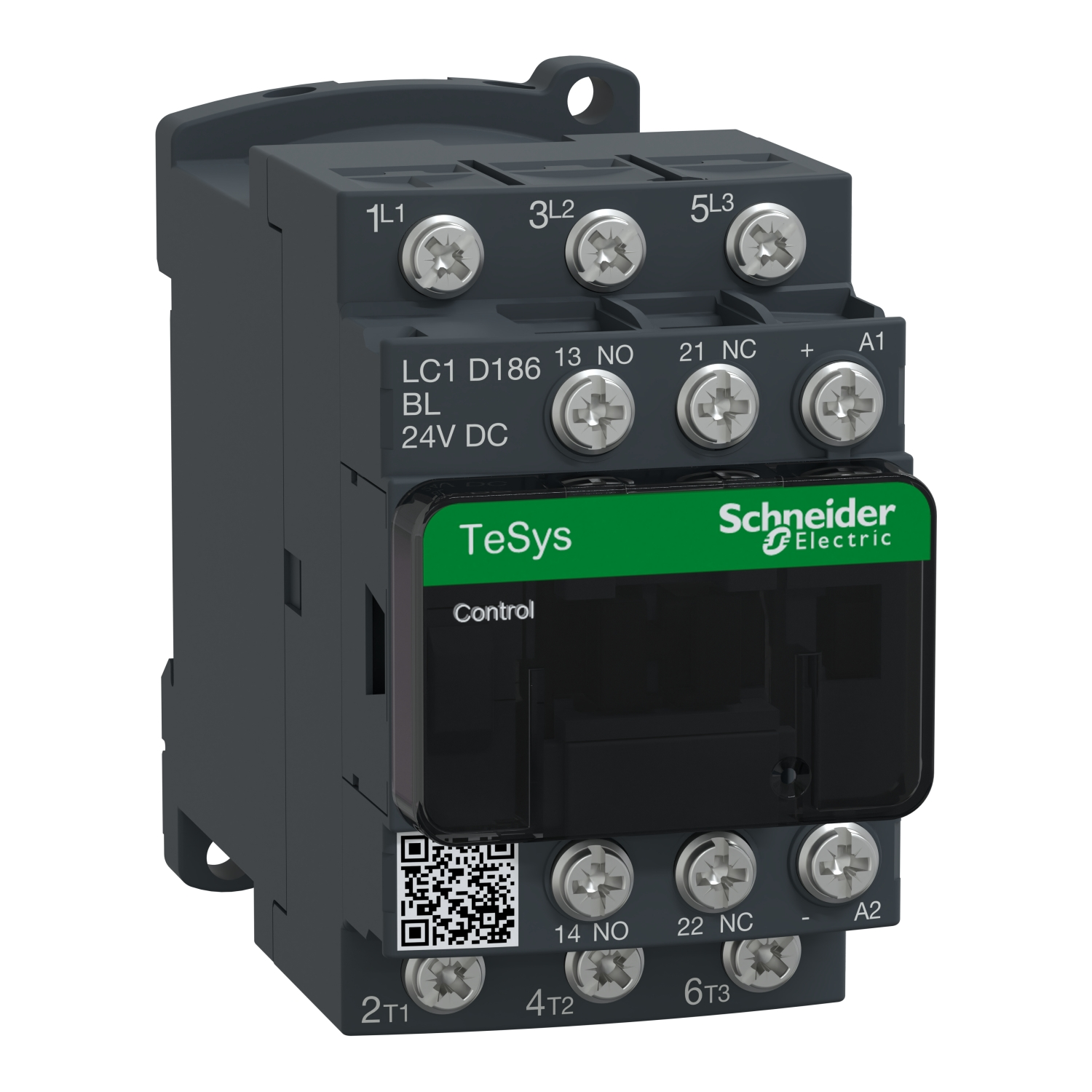

Schneider Electric LC1D186 TeSys D 3-Pole Contactor, 18A AC-3 / 32A AC-1, Ring Lug Terminal
Regular price
$60.00 USD
Regular price
Sale price
$60.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Schneider Electric LC1D186 is a compact and highly reliable TeSys D 3-pole contactor (3 NO) designed for industrial motor control applications requiring ring lug terminal connections. Engineered for enterprise durability, this 18A (AC-3) rated unit provides efficient power switching for motors up to 7.5 kW and is compatible with a comprehensive range of AC and DC coil voltage options for global system integration.
| Product ID (MPN) | LC1D186 |
| Available Coil Variants | M7C (220VAC), F7C (110VAC), E7C (48VAC), B7C (24VAC), MDC (220VDC), FDC (110VDC), EDC (48VDC), BDC (24VDC) |
| Pole Configuration | 3P (3 NO) |
| Rated Operational Current (Ie) | 18 A (AC-3) / 32 A (AC-1) at <= 440 V AC |
| Motor Power (kW) | 7.5 kW at 380...415 V AC 50/60 Hz |
| Terminal Type | Ring Lug Terminals |
| Auxiliary Contacts | 1 NO + 1 NC (Built-in) |
| Electrical Durability | 1.65 Mcycles (AC-3) / 1 Mcycles (AC-1) |
