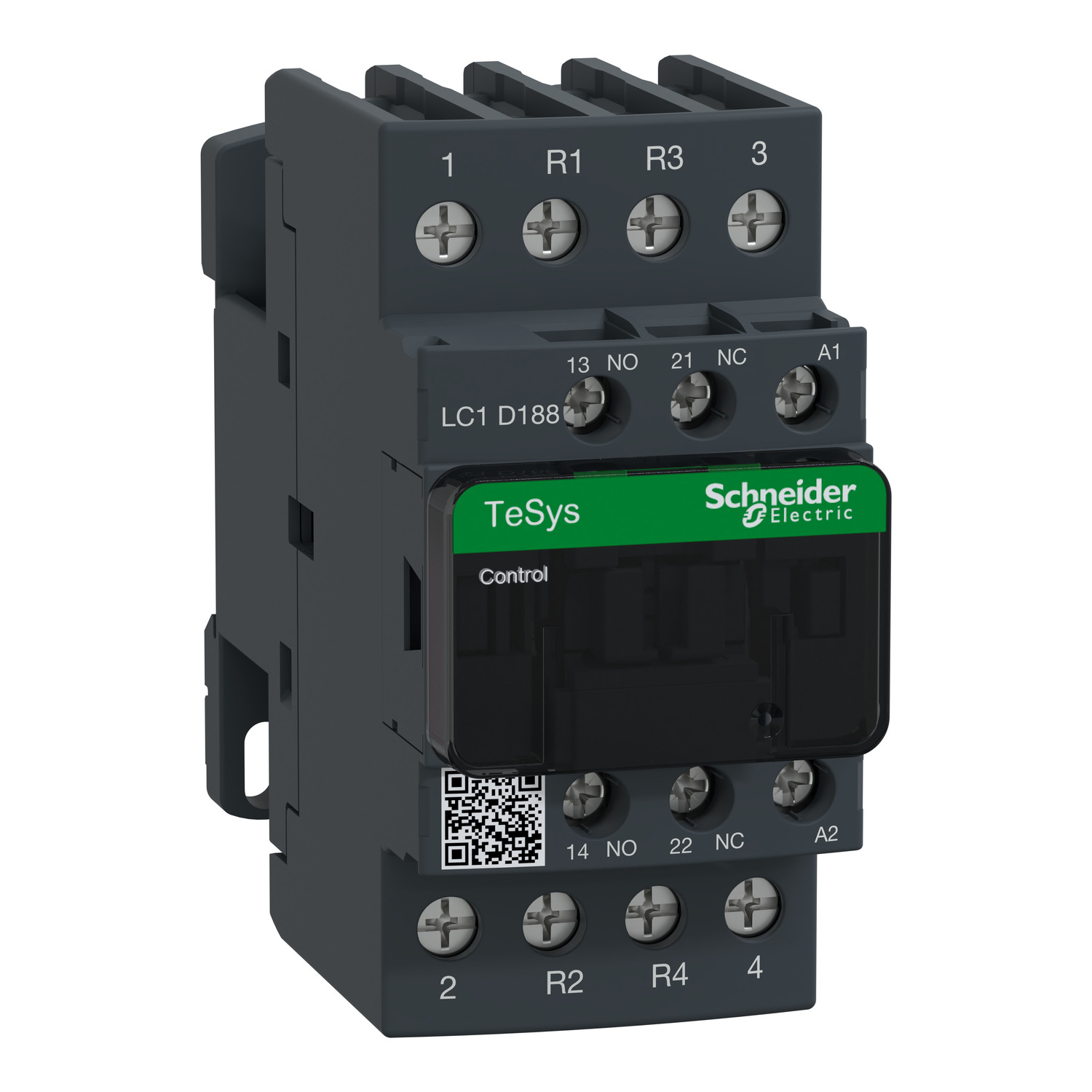

Schneider Electric LC1D188 TeSys D 4-Pole Contactor, 32A AC-1, AC/DC Multi-Voltage Options
Regular price
$50.00 USD
Regular price
Sale price
$50.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Schneider Electric LC1D188 TeSys D is a professional-grade 4-pole contactor (2 NO + 2 NC) designed for the precise control of non-inductive or slightly inductive loads. Supporting operational currents up to 32A, it is a key component for industrial power management, offering exceptional electrical durability and seamless integration with a wide variety of AC and DC control voltages ranging from 24V to 220V.
| Product ID (MPN) | LC1D188 |
| Available Coil Variants | M7C (220VAC), F7C (110VAC), E7C (48VAC), B7C (24VAC), MDC (220VDC), FDC (110VDC), EDC (48VDC), BDC (24VDC) |
| Pole Configuration | 4P (2 NO + 2 NC) |
| Rated Operational Current (Ie) | 32 A (at <60 °C) AC-1 |
| Rated Operational Voltage (Ue) | Power circuit: <= 690 V AC 25...400 Hz |
| Auxiliary Contacts | 1 NO + 1 NC (Built-in) |
| Power Dissipation per Pole | 2.5 W AC-1 |
| Control Circuit Frequency | 50/60 Hz (for AC variants) |
