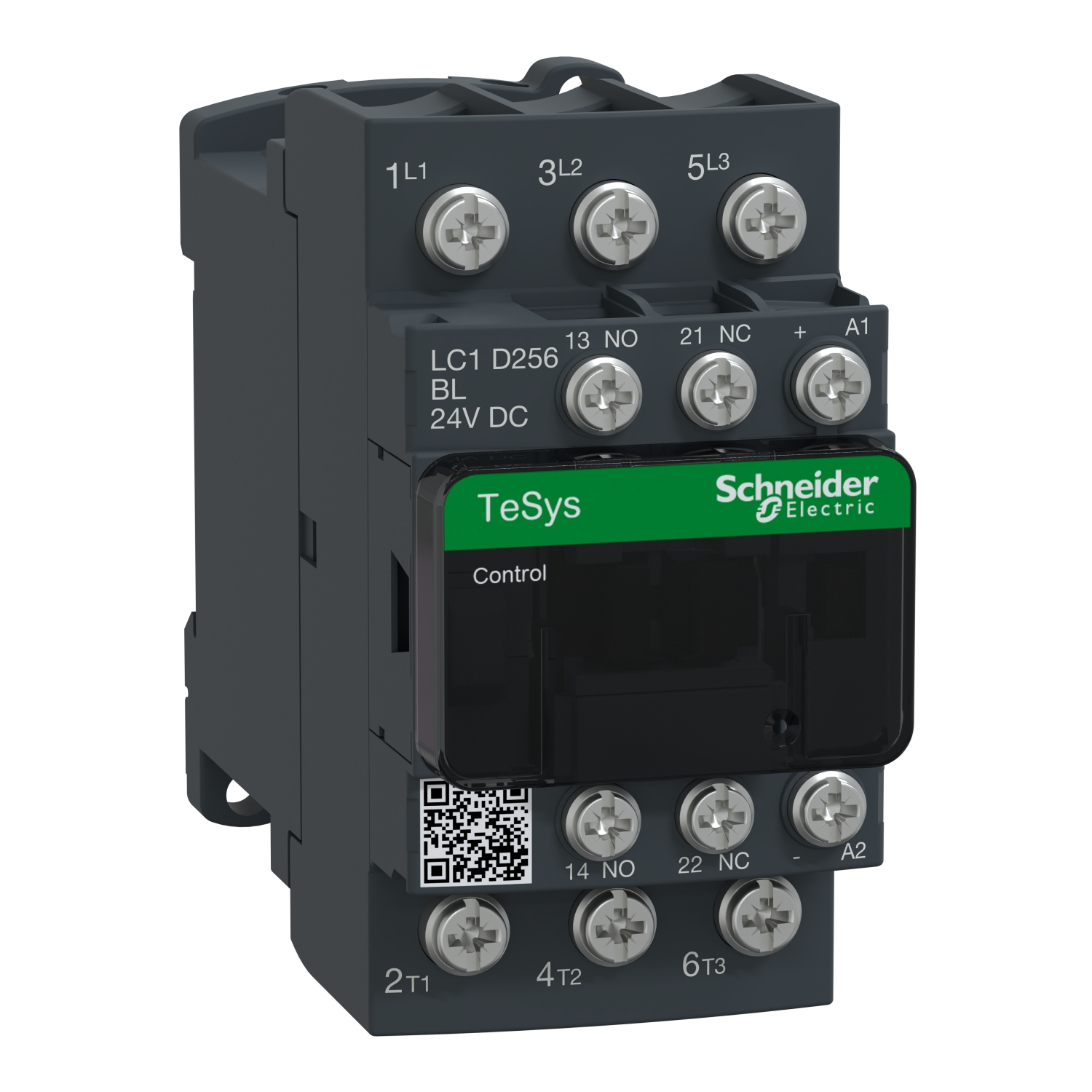

Schneider Electric LC1D256 TeSys D 3-Pole Contactor, 25A AC-3 / 40A AC-1, Ring Lug Terminal
Regular price
$50.00 USD
Regular price
Sale price
$50.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Schneider Electric LC1D256 is a robust TeSys D 3-pole contactor engineered for heavy-duty motor control and power switching applications. Featuring specialized ring lug terminals for secure electrical connectivity, this unit supports operational currents up to 25A (AC-3) and 40A (AC-1), providing enterprise-grade reliability with integrated auxiliary contacts and compatibility across a wide range of AC and DC coil voltages.
| Product ID (MPN) | LC1D256 |
| Available Coil Variants | M7C (220VAC), F7C (110VAC), E7C (48VAC), B7C (24VAC), MDC (220VDC), FDC (110VDC), EDC (48VDC), BDC (24VDC) |
| Pole Configuration | 3P (3 NO) |
| Rated Operational Current (Ie) | 25 A (AC-3) / 40 A (AC-1) at <= 440 V AC |
| Motor Power (kW) | 11 kW at 380...415 V AC 50/60 Hz |
| Connection Type | Ring Lug Terminals |
| Auxiliary Contacts | 1 NO + 1 NC |
| Mounting Base | 35mm DIN Rail or Plate |
