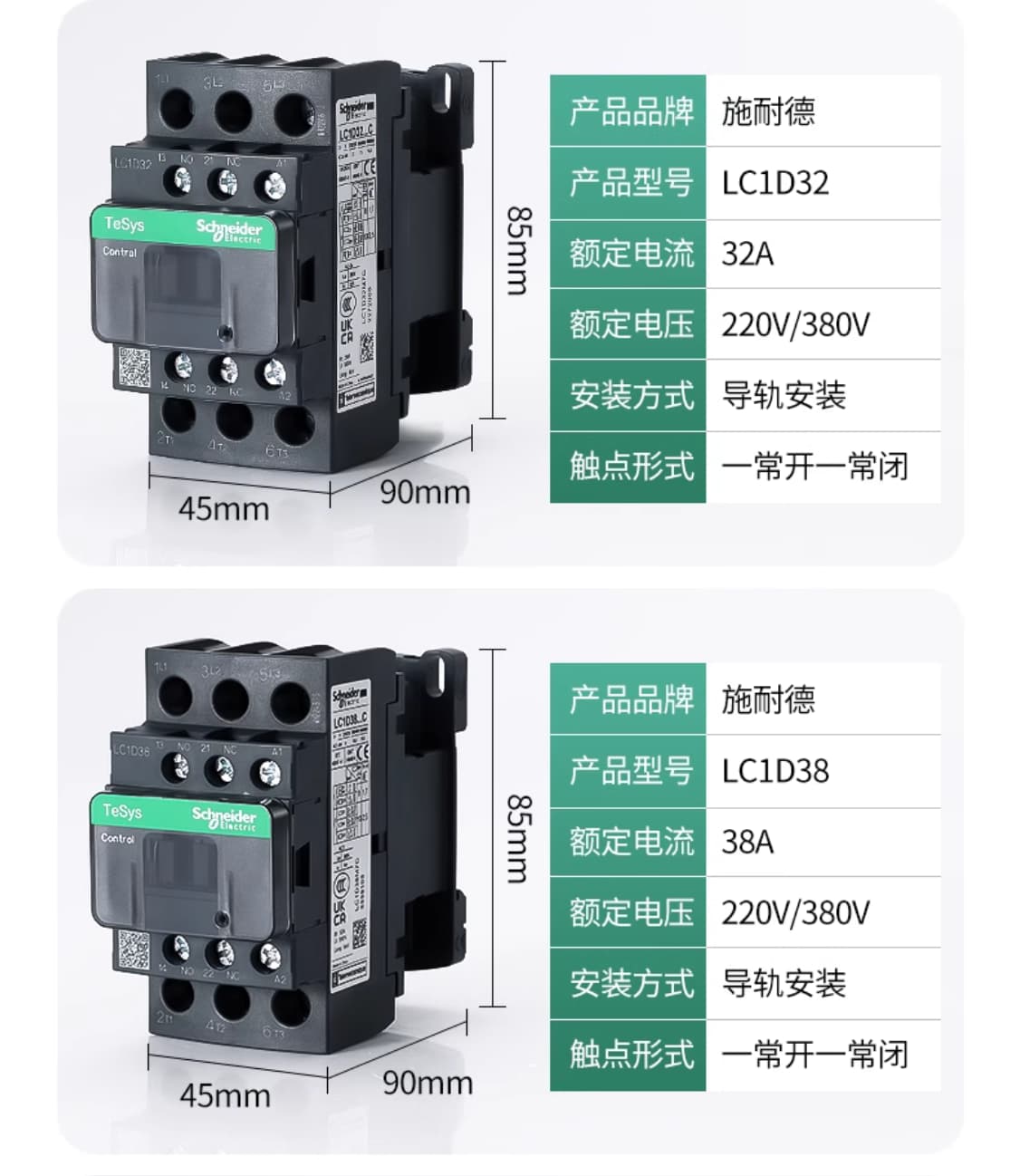

The Schneider Electric LC1D32 contactor family includes LC1D32B7, LC1D32CC7, LC1D32F7, LC1D32M7, and LC1D32Q7. These TeSys Deca contactors have three normally open main poles, a 32 A AC-3/AC-3e rating at up to 440 V AC, and built-in 1 NO + 1 NC auxiliary contacts. The complete model number identifies the required AC coil voltage.
24 V AC Coil Model
LC1D32B7, 50/60 Hz
36 V AC Coil Model
LC1D32CC7, 50/60 Hz
110 V AC Coil Model
LC1D32F7, 50/60 Hz
220 V AC Coil Model
LC1D32M7, 50/60 Hz
380 V AC Coil Model
LC1D32Q7, 50/60 Hz
Product Range
TeSys Deca
Rated Operational Current
32 A at up to 440 V AC, AC-3/AC-3e
AC-1 Operational Current
50 A at up to 440 V AC
Main Pole Configuration
3P, 3 NO
Auxiliary Contacts
1 NO + 1 NC
Motor Power
15 kW at 380–400 V AC, 50/60 Hz, AC-3
Rated Operational Voltage
Up to 690 V AC for the power circuit
Connections
Screw clamp terminals
Mounting Support
Plate or rail
Schneider Electric specifies these contactors for motor control and resistive-load switching in industrial and HVAC applications. Confirm the complete model number, coil voltage, rated current, auxiliary contacts, and terminal arrangement against the original control circuit before replacement.
Apexon Supply provides B2B sourcing and replacement support for Schneider Electric LC1D32 contactors, helping procurement teams compare coil-voltage variants and prepare accurately identified RFQs.
Submit LC1D32B7, LC1D32CC7, LC1D32F7, LC1D32M7, or LC1D32Q7, together with the required quantity and application requirements, for procurement review. Most qualified RFQs receive a response or quote within 12 hours.
