Schneider Electric LC1D326 Series Contactor, M7C/F7C/E7C/B7C/MDC/FDC/EDC/BDC, 32 A
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)

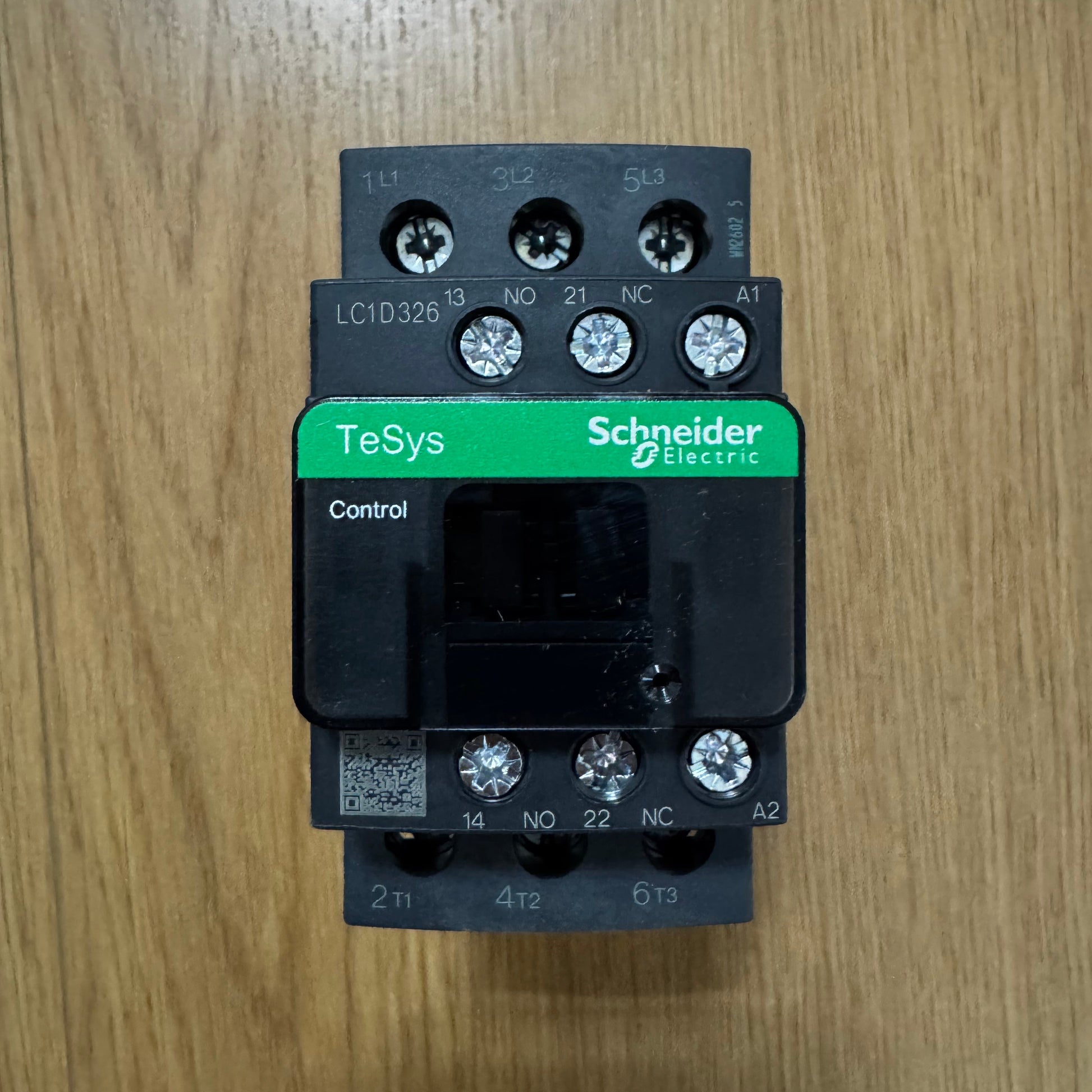

The Schneider Electric LC1D326 TeSys D contactor selection includes eight coil-voltage variants: LC1D326M7C, LC1D326F7C, LC1D326E7C, LC1D326B7C, LC1D326MDC, LC1D326FDC, LC1D326EDC and LC1D326BDC. These 3-pole contactors are rated at 32 A for AC-3 motor-control duty and include one normally open and one normally closed auxiliary contact.

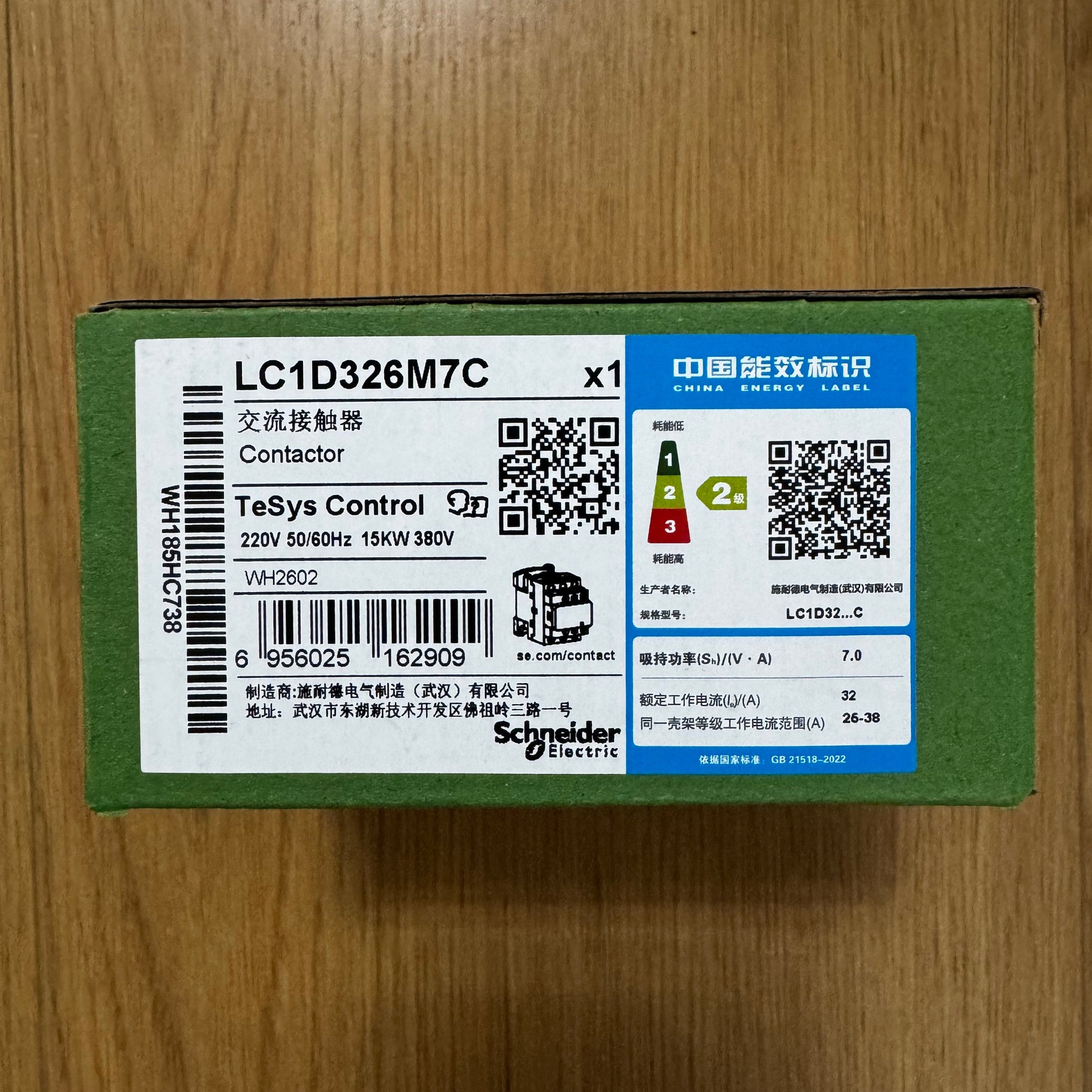

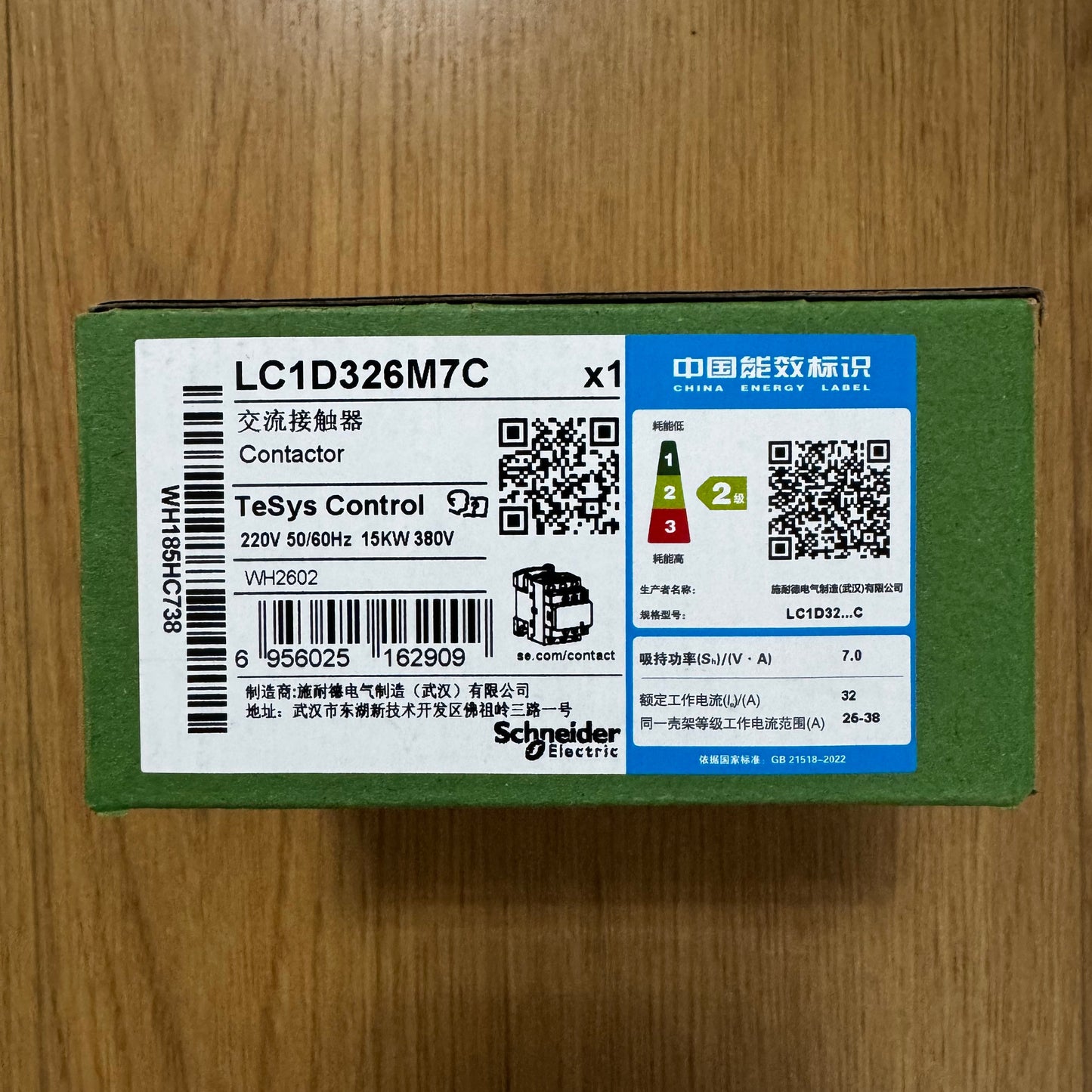

| LC1D326M7C | 220 V AC coil |
| LC1D326F7C | 110 V AC coil |
| LC1D326E7C | 48 V AC coil |
| LC1D326B7C | 24 V AC coil |
| LC1D326MDC | 220 V DC coil |
| LC1D326FDC | 110 V DC coil |
| LC1D326EDC | 48 V DC coil |
| LC1D326BDC | 24 V DC coil |
| Range | TeSys D / TeSys Deca |
| Product Type | Contactor |
| Pole Configuration | 3P, 3 NO |
| Rated Operational Current | 32 A at up to 440 V AC, AC-3/AC-3e |
| AC-1 Operational Current | 50 A at up to 440 V AC |
| Motor Power | 15 kW at 380–440 V AC, 50/60 Hz, AC-3 |
| Auxiliary Contacts | 1 NO + 1 NC |
| Mounting Support | Rail or plate |
Typical applications include motor control and resistive load switching. Select the complete reference according to the required AC or DC coil voltage and the existing control-circuit requirements.
Apexon Supply provides B2B sourcing and replacement support for Schneider Electric TeSys D contactors. Buyers should verify the complete reference, coil voltage, rated current, utilization category, pole configuration and auxiliary contact arrangement before procurement.
Submit LC1D326M7C, LC1D326F7C, LC1D326E7C, LC1D326B7C, LC1D326MDC, LC1D326FDC, LC1D326EDC or LC1D326BDC with the required quantity for procurement review and RFQ support. Most qualified RFQs receive a response or quote within 12 hours.
