Schneider Electric LC1D386 TeSys D 3-Pole Contactor, 38A AC-3 / 50A AC-1, Ring Lug Terminal
Regular price
$60.00 USD
Regular price
Sale price
$60.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)

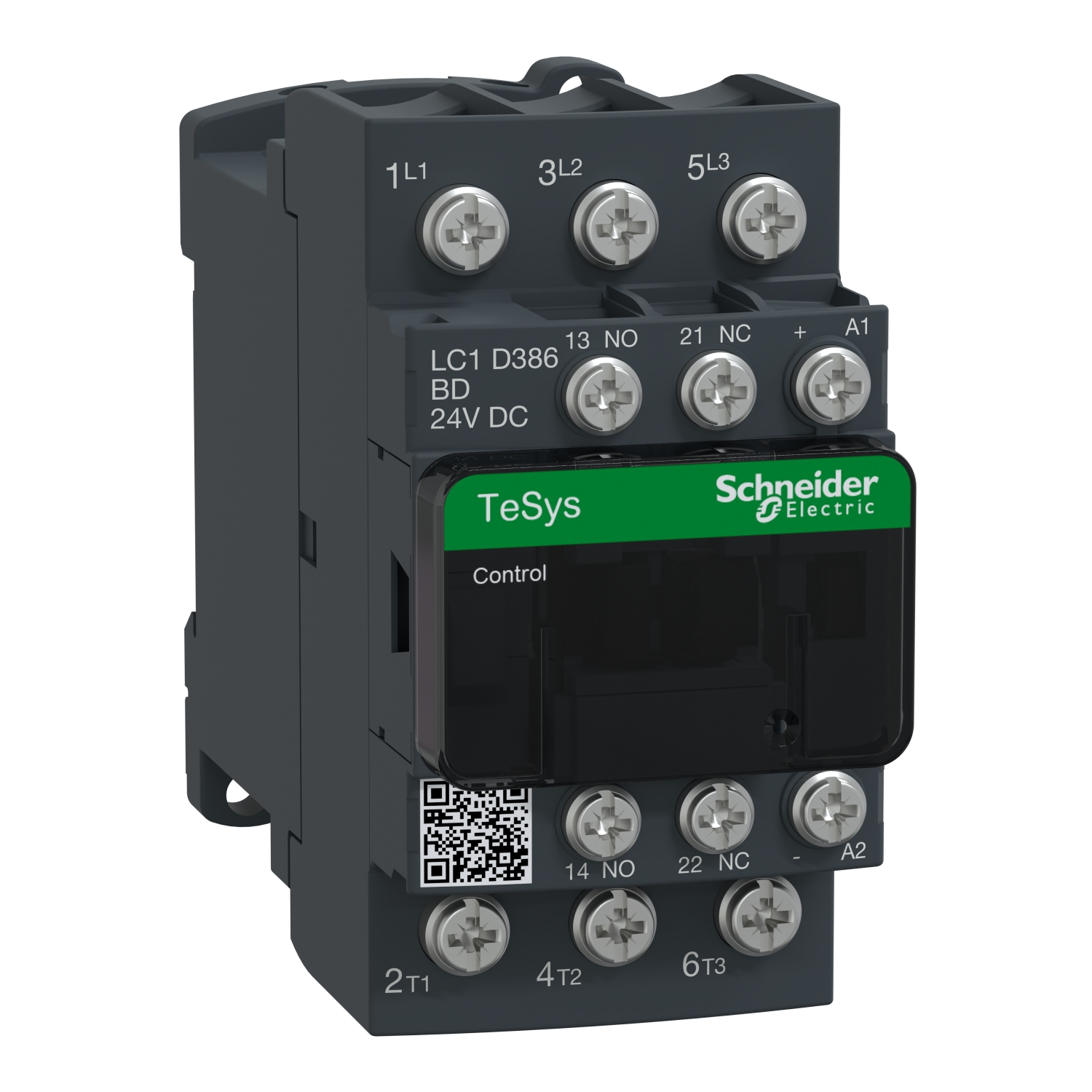

The Schneider Electric LC1D386 is a high-performance TeSys D 3-pole contactor specifically designed for power switching and motor control applications requiring ring lug terminal connections. Engineered for enterprise-level reliability, it supports operational currents up to 38A (AC-3) and is available in a wide range of coil voltages from 24V to 220V in both AC and DC configurations to suit diverse industrial control systems.
| Product ID (MPN) | LC1D386 |
| Available Coil Variants | M7C (220VAC), F7C (110VAC), E7C (48VAC), B7C (24VAC), MDC (220VDC), FDC (110VDC), EDC (48VDC), BDC (24VDC) |
| Pole Configuration | 3P (3 NO) |
| Rated Current (Ie) | 38 A (AC-3) / 50 A (AC-1) at <= 440 V AC |
| Motor Power (kW) | 18.5 kW at 380...415 V AC 50/60 Hz |
| Connection Type | Ring Lug Terminals |
| Auxiliary Contacts | 1 NO + 1 NC (Instantaneous) |
| Ingress Protection | IP20 (Conforming to IEC 60529) |
