Schneider Electric LC1D40 TeSys Deca Contactor, 3P, 40A AC-3 18.5kW, 1NO+1NC Aux
Regular price
$20.00 USD
Regular price
Sale price
$20.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)

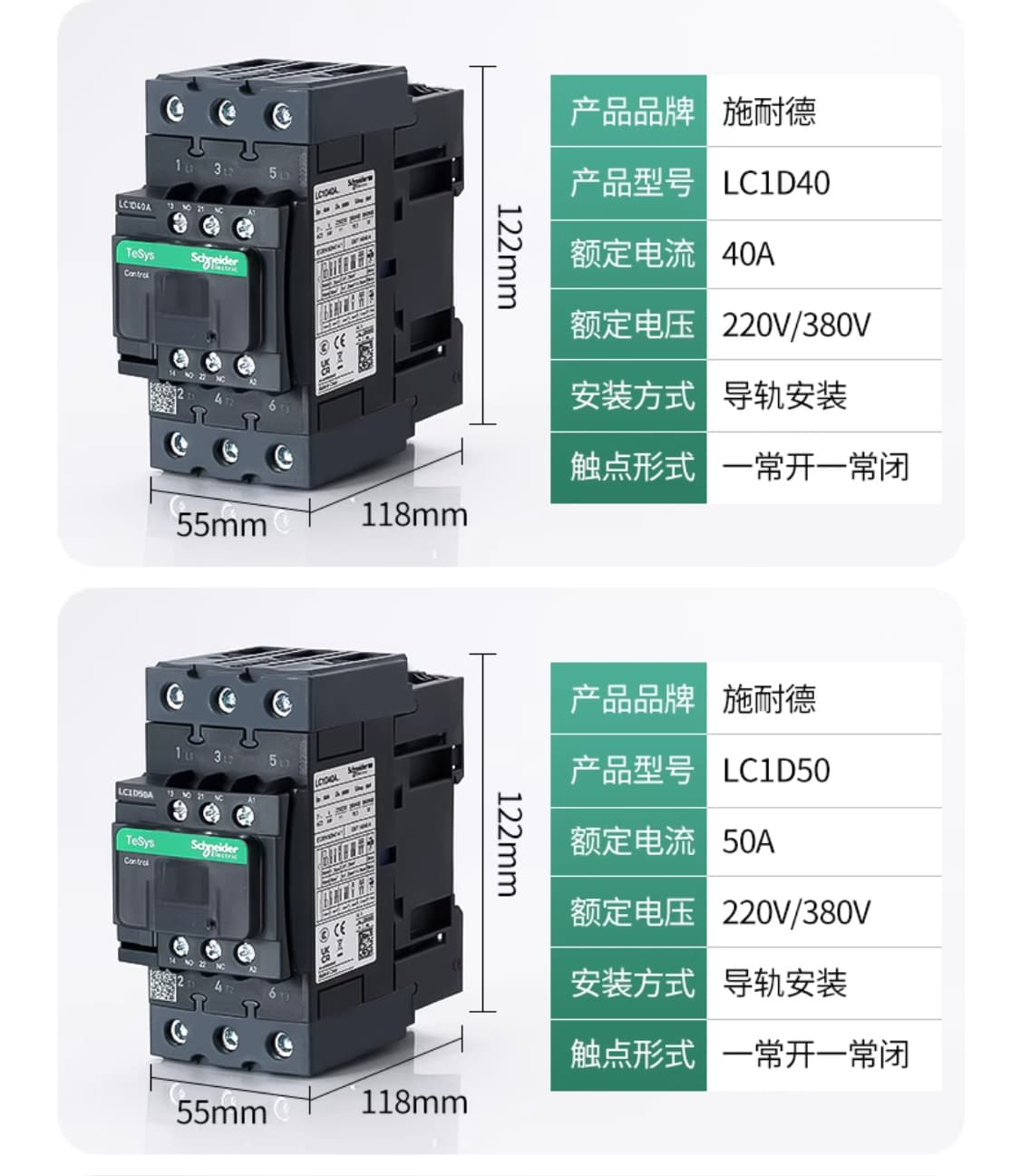

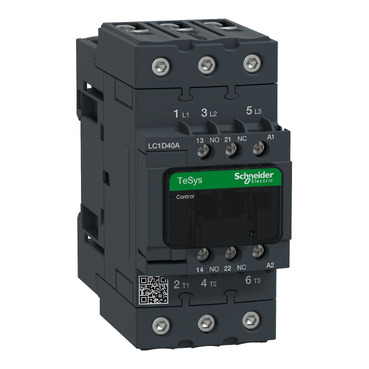

The Schneider Electric LC1D40 is a high-performance 3-pole contactor from the TeSys Deca range, specifically engineered for high-frequency switching and reliable motor control in industrial environments. Utilizing advanced EverLink terminal technology for permanent tightening pressure, it provides robust 40A (AC-3) capacity for motors up to 18.5kW at 400V, ensuring maximum operational safety and minimized maintenance downtime.
| Product ID (MPN) | LC1D40 |
| Rated Operational Current (Ie) | 40 A (AC-3, <= 440 V) / 60 A (AC-1, <= 440 V) |
| Motor Power (kW) | 18.5 kW at 380/400 V AC 50/60 Hz |
| Pole Configuration | 3P (3 NO) |
| Auxiliary Contacts | 1 NO + 1 NC |
| Control Voltage Options | AC 24V, 36V, 110V, 220V, 380V (50/60 Hz) |
| Rated Insulation Voltage (Ui) | 600 V (UL/CSA), 690 V (IEC 60947-4-1) |
| Terminal Type | EverLink BTR Screw Connectors |
| Mechanical Durability | 6,000,000 cycles |
