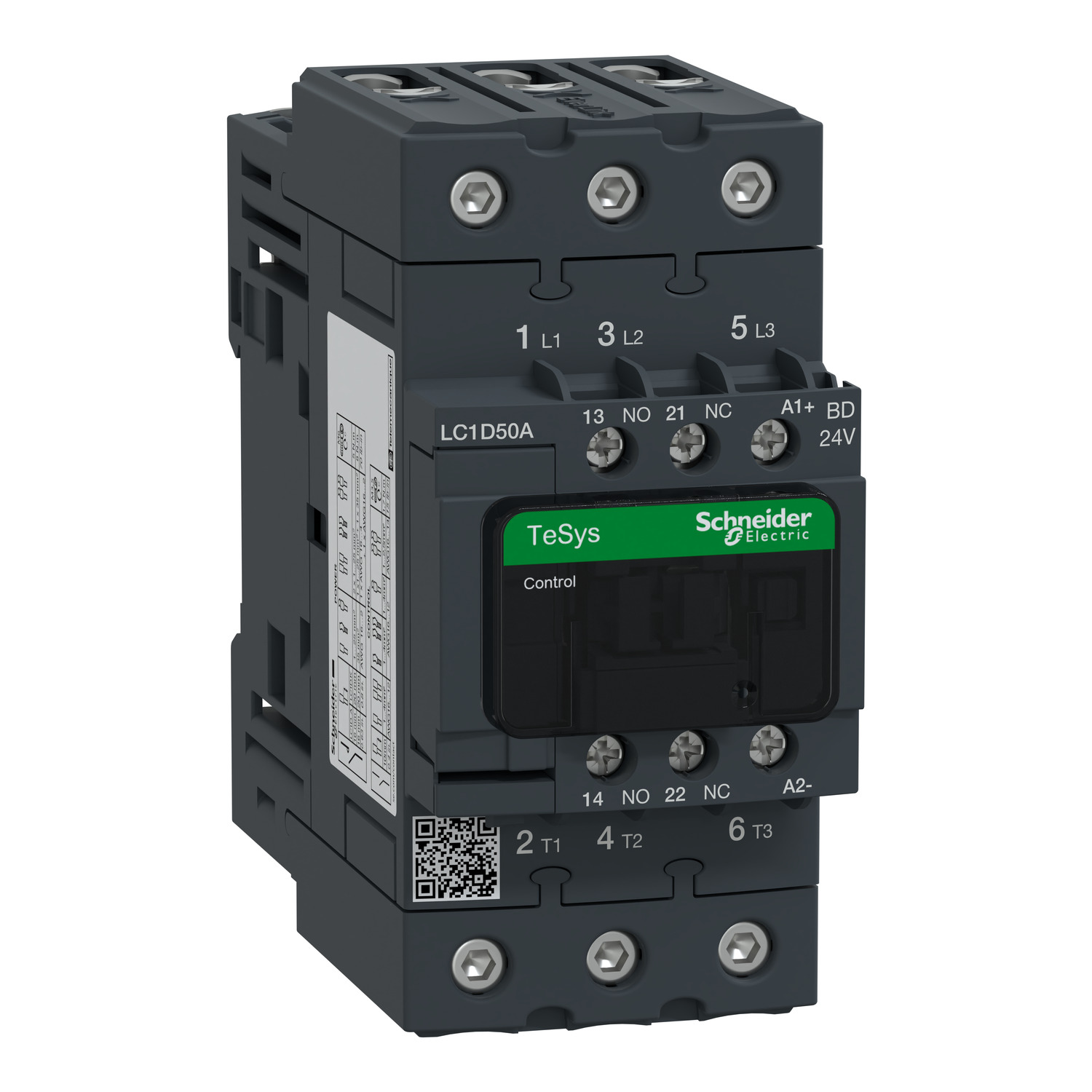

Schneider Electric LC1D50 TeSys Deca Contactor, 3P, 50A AC-3 22kW, 1NO+1NC Aux
Regular price
$25.00 USD
Regular price
Sale price
$25.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Schneider Electric LC1D50 is a heavy-duty 3-pole contactor from the TeSys Deca series, engineered for high-power motor control and industrial power switching applications. Rated for 22kW at 400V, it features patented EverLink terminal technology which ensures permanent tightening pressure even in high-vibration environments, providing a reliable and efficient solution for both commercial and industrial electrical systems.
| Product ID (MPN) | LC1D50 |
| Rated Operational Current (Ie) | 50 A (AC-3, <= 440 V) / 80 A (AC-1, <= 440 V) |
| Motor Power (kW) | 22 kW at 380/400 V AC 50/60 Hz |
| Pole Configuration | 3P (3 NO) |
| Auxiliary Contacts | 1 NO + 1 NC |
| Control Voltage Options | AC 24V, 36V, 110V, 220V, 380V (50/60 Hz) |
| Rated Insulation Voltage (Ui) | 600 V (UL/CSA), 690 V (IEC 60947-4-1) |
| Terminal Technology | EverLink BTR Screw Connectors |
| IP Rating | IP20 (Front conforming to IEC 60529) |
