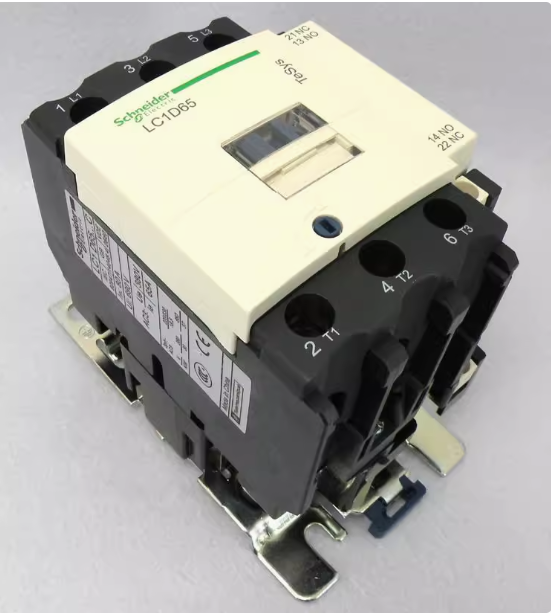

Schneider Electric LC1D65M7 / LC1D65M7C TeSys D Contactor, 65 A (AC-3), 220 V AC Coil, 3P
Regular price
$150.00 USD
Regular price
Sale price
$150.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Schneider Electric LC1D65M7 (also referenced as LC1D65M7C) is a high-performance 3-pole TeSys D contactor engineered for demanding motor control and resistive load applications. Featuring a 65 A operational current rating (AC-3), a 220 V AC (50/60 Hz) control coil, and heavily durable screw clamp terminals, it delivers stable electrical switching up to 690 V. Equipped with integrated 1 NO + 1 NC auxiliary contacts and versatile DIN rail or plate mounting capabilities, this contactor ensures seamless, reliable integration into robust industrial automation panels.
| Product ID (MPN) | LC1D65M7 |
| Order Code / Variant | LC1D65M7C |
| Brand | Schneider Electric |
| Product Range | TeSys D |
| Product Type | Contactor |
| Device Application | Motor Control, Resistive Load |
| Utilisation Category | AC-1, AC-2, AC-3, AC-4 |
| Control Circuit Voltage [Uc] | 220 V AC 50/60 Hz |
| Poles Description | 3P (3 NO) |
| Rated Operational Current [Ie] | 65 A (≤ 60 °C) at ≤ 440 V AC (AC-3) | 80 A (≤ 60 °C) at ≤ 440 V AC (AC-1) |
| Motor Power (kW) | 30 kW @ 380...400 V AC | 37 kW @ 500 V AC | 37 kW @ 660...690 V AC | 18.5 kW @ 220...230 V AC |
| System Voltage [Ue] | ≤ 690 V AC 25...400 Hz (Power Circuit) |
| Rated Insulation Voltage [Ui] | 690 V (IEC 60947-1) | 600 V (CSA/UL) |
| Rated Impulse Withstand Voltage [Uimp] | 8 kV (IEC 60947) |
| Auxiliary Contact Composition | 1 NO + 1 NC |
| Connections - Terminals | Screw clamp terminals |
| Mounting Support | Plate / Rail |
| Operating Time | 12...26 ms closing | 4...19 ms opening |
