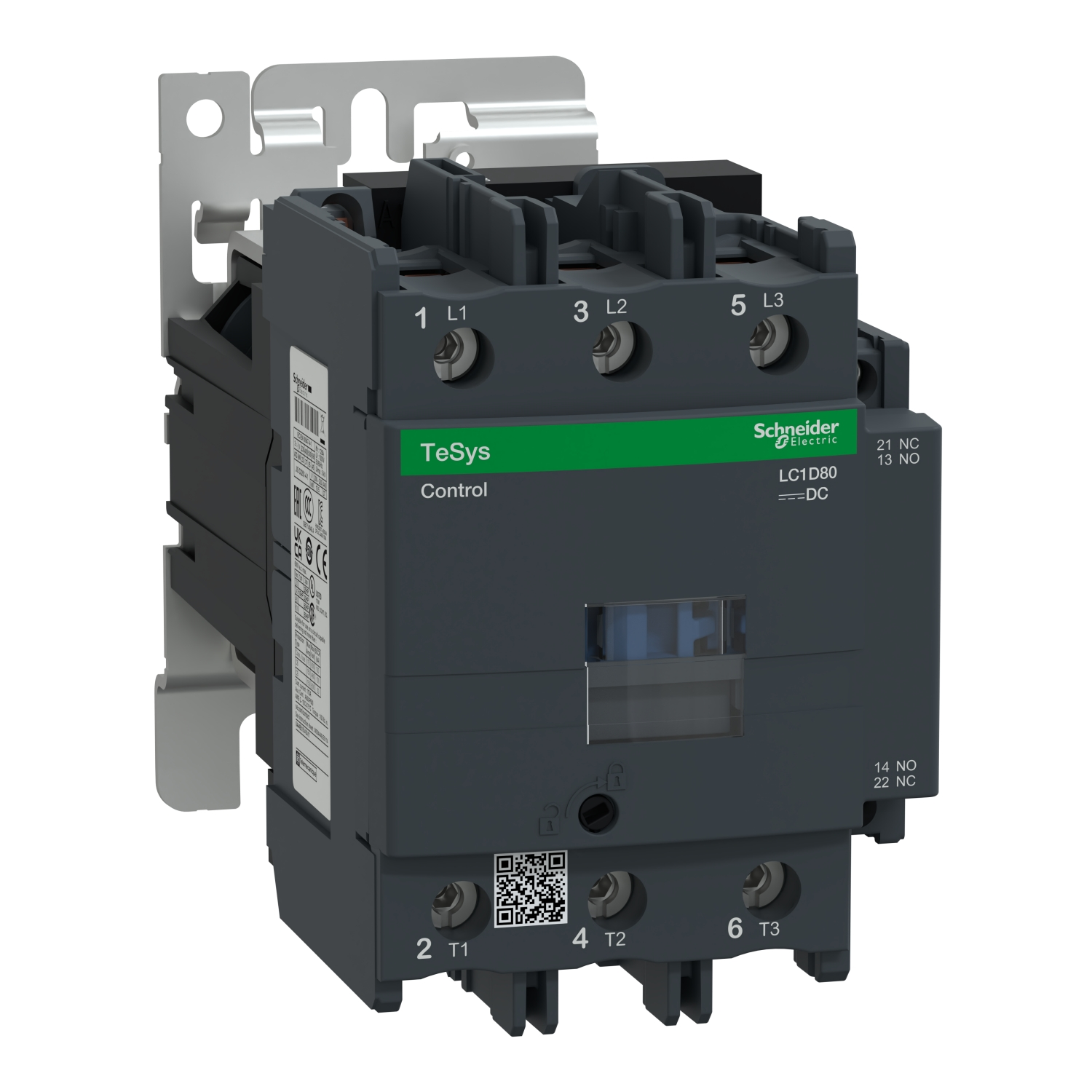

Schneider Electric LC1D80 TeSys Deca Contactor, 3P, 80A AC-3 37kW, 1NO+1NC Aux
Regular price
$20.00 USD
Regular price
Sale price
$20.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Schneider Electric LC1D80 is a high-power 3-pole contactor from the TeSys Deca series, engineered for demanding industrial motor control and heavy-duty power switching. Delivering a robust 37kW rating at 400V, this contactor features advanced arc-extinction technology and integrated 1NO+1NC auxiliary contacts, providing an industry-leading solution for maintaining safe, dependable contact and maximum uptime in enterprise-scale electrical systems.
| Product ID (MPN) | LC1D80 |
| Rated Operational Current (Ie) | 80 A (AC-3, <= 440 V) / 125 A (AC-1, <= 440 V) |
| Motor Power (kW) | 37 kW at 380/400 V AC 50/60 Hz |
| Pole Configuration | 3P (3 NO) |
| Auxiliary Contacts | 1 NO + 1 NC |
| Control Voltage Options | AC 24V, 36V, 110V, 220V, 380V (50/60 Hz) |
| Rated Insulation Voltage (Ui) | 600 V (UL/CSA), 1000 V (IEC 60947-4-1) |
| Electrical Durability | 0.8 Mcycles 80 A AC-3 at Ue <= 440 V |
| Mounting Base | 35 mm / 75 mm DIN Rail or Screw Mounting |
